TUSA RS790 Dive Regulator

The RS-790 delivers performance, durability and comfort making it the ideal choice for discerning divers.

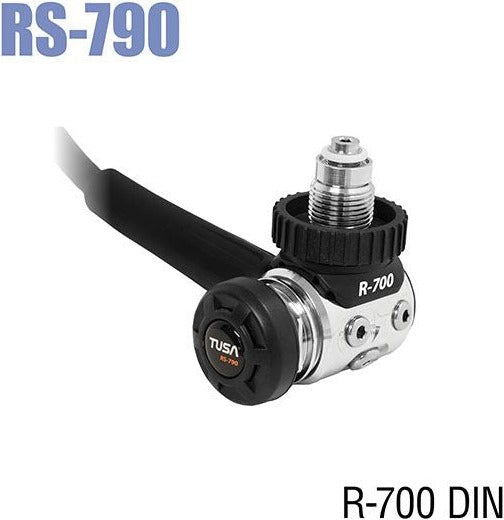

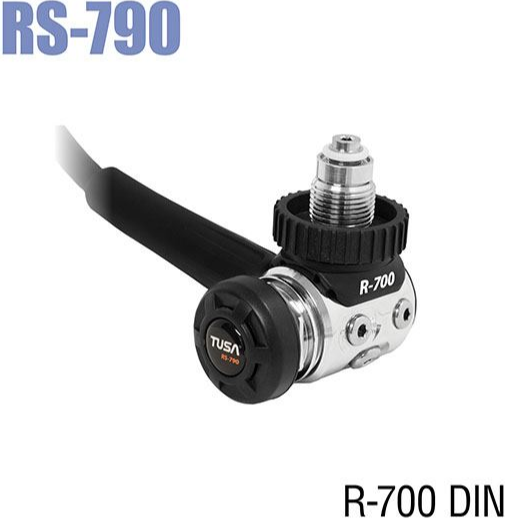

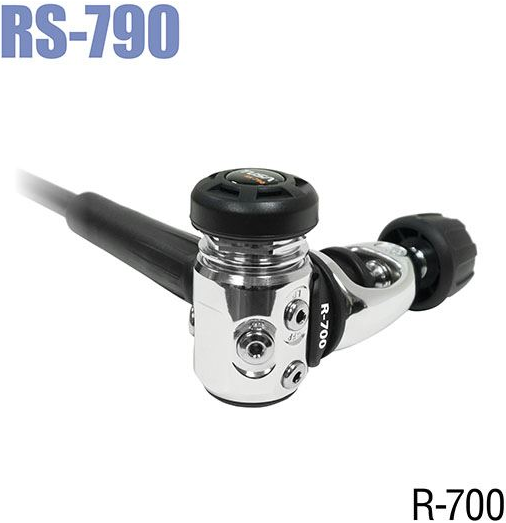

The R-700 is a balanced diaphragm first stage designed for cold-water use, it features a dry ambient pressure chamber that prevents water contact with the diaphragm maximizing performance in temperate water conditions below 50°F/10°C. Additionally, the R-700 has an external rib section that nearly doubles the surface area for thermal exchange further reducing ice formaton that can lead to freeze up in extreme conditions. The R-700 has two high pressure ports and four low pressure ports including two high flow (HF) that deliver up to a 15% increase in air flow. It is available in both INT (yoke) and DIN versions.

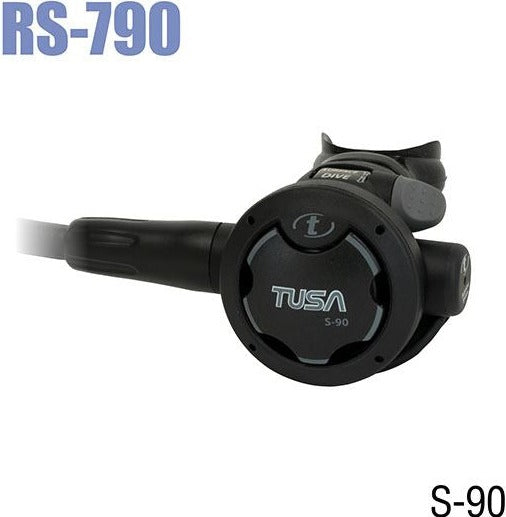

The S-90 second stage is a compact pneumatically balanced system that features a composite housing which insulates and protects under extreme cold-water conditions.

The S-90 is equipped with a built-in venturi adjustment lever allowing the diver to select a surface or minimum setting reducing possible free flow or a dive setting for maximum air flow during the dive.

The RS-790 offers the following Features:

R-700 First Stage:

Dry Ambient Pressure Chamber:

The dry ambient pressure chamber on the R-700 prevents water contact with the diaphragm and spring maximizing performance, at any depth, in cold water conditions below 50°F/10°C.

Ideal For Cold Water Environments:

The R-700 is engineered for cold water diving. It features a ribbed top cap section that acts like a radiator to increase the surface area for heat transfer. This design allows warming of the critical internal first stage parts that can freeze due to the gas pressure drops and low temperatures.

High Flow Ports:

Two high flow low pressure ports are available on the R-700 in addition to two standard LP ports and 2 HP ports. The high flow ports are positioned near the diaphragm and offer up to a 15% increase in air flow.

S-90 Second Stage:

Pneumatically Balanced System:

The S-90 second stage is a pneumatically balanced design. A small chamber positioned at the end of the poppet assembly traps air and forces the poppet back against the intermediate pressure orifice. This provides decreased inhalation resistance and increases smooth breathing in all conditions.

Venturi Adjustment Lever:

The S-90 is equipped with a built-in Venturi adjustment lever. Two positions are selectable by the diver. Use Surface or the minimum setting when entering the water or on the surface, reducing the sensitivity and possible free flow of the second stage. Use the Dive or maximum setting for maximum air flow during the dive.

Features:

First Stage (R-700):

• Balanced diaphragm first stage with anti-freeze system
• Dry ambient pressure chamber ideal for temperatures below 50°F/10°C
• Ribbed section to increase heat transfer and resist freezing
• Two H.P. ports and Four L.P. (2 standard/2 high flow) ports
• High flow L.P. ports offer up to 15% increase in air flow
• DIN version available as RS-790 DIN (300bar/4350psi)
• Eligible for TUSA CARE Free Parts for Life Program - USA Only

Second Stage (S-90):

• Lightweight, compact composite case design
• Pneumatically balanced system
• Venturi adjustment lever
• Ortho-consciously designed mouthpiece
• Eligible for TUSA CARE Free Parts for Life Program - USA Only

Technology:

• ADVANCED FLOW SYSTEM: The Advanced Flow System allows ease of air flow and makes air delivery smoother due to the curved housing structure.
• COLD WATER READY: The Cold Water Ready feature enables the diver to use the regulator in water temperatures below 50° F / 10° C.
• ENVIRONMENTALLY SEALED 1ST STAGE: The use of a secondary diaphragm and piston sealing the 1st stage preventing contamination or freezing when the regulator is submersed in contaminated or freezing water.
• ORTHO-CONSCIOUS MOUTH PIECE: The Ortho-Conscious Mouth Piece feature prevents jaw fatigue. The ridges and flexible material allow the diver to have more control of the mouth piece and reduces tension in the jaw. Read more
• PNEUMATICALLY BALANCED 2ND STAGE: A balance chamber added to the regulator 2nd stage, providing equal pressure to both sides of the LP seat greatly reducing inhalation effort.
