Clear Sonar Real Time.

See Everything In Real Time
See easy-to-interpret live scanning sonar images of fish swimming near clearly defined structure see lures as its retrieved and even distinguish between species of fish in real time.

Excellent Range
Not only will this sonar display crystal-clear imagery around the boat It can also see at a distance of up to 200 feet in both Forward and Down modes — even while the boat is stationary.

Image Stabilisation
Attitude Heading Reference System stabilises the sonar view on the chartplotter screen even in rough conditions.

Vivid Colour Palettes
Choose from seven vivid colour options — including Aqua Caribbean Lava and more — to see fish and structure in maximum contrast and clarity.

Beam Angle Icon
This icon appears on the chartplotter display to show where the Panoptix LiveScope transducer is aimed relative to the boat (calibration required).

Easily Connect To the vessels System
Seamlessly integrate this system with a compatible Garmin chartplotter using the simple plug-and-play Garmin Marine Network connector.

In The Box

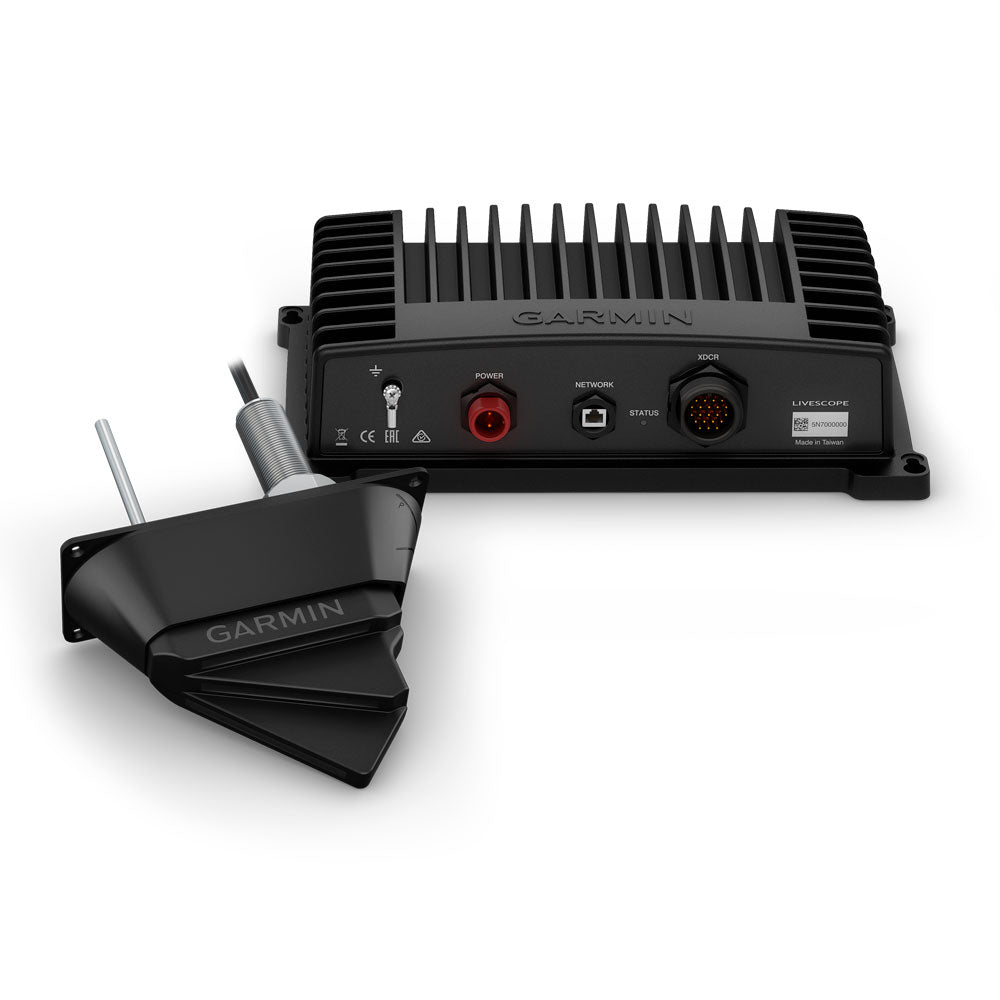

• LiveScope GLS 10 sonar black box
• Panoptix LVS32-TH transducer
• Thru-hull mount hardware
• Power cable
• 2 metre Garmin Marine Network cable small connector
• Network adapter cable
• Mounting hardware
• Documentation
