Eight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility all in one product.

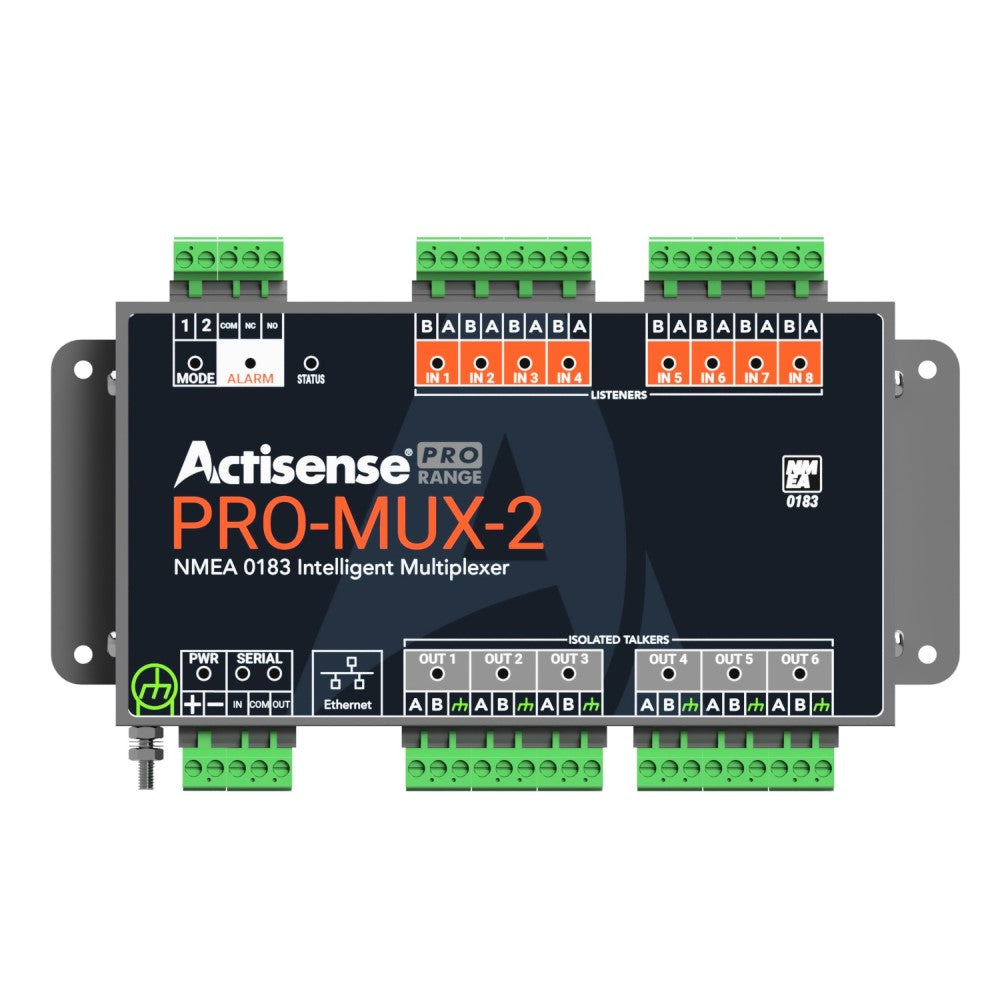

Introducing the Actisense® PRO-MUX-2 the intelligent type-approved PRO range multiplexer.

The PRO-MUX-2 is rugged with a stainless steel housing and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs six NMEA 0183 outputs a bi-directional serial port and an Ethernet port the PRO-MUX-2 is a perfect solution for larger leisure vessels commercial shipping and is a great addition for systems that require type-approved devices.

The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems from leisure through to class vessels.

The eight NMEA 0183 inputs can be routed to any of the six NMEA 0183 outputs providing a highly customisable network. A bi-directional serial port and an Ethernet port allow for simple configuration and diagnostics using Actisense software.

The configuration tool is accessible via any popular web browser (using the Ethernet port) so there are no PC operating system compatibility issues to contend with. Using the web based configuration tool will allow the user to finely tune the exact data available on each output. The default setup is for all data to go to all outputs.

2-part pluggable connectors on the PRO-MUX-2 (screw or screwless terminals available) mean that new devices can easily be installed without the need to remove the PRO-MUX-2 from its mounted location. A professional DIN rail mounting mechanism keeps the PRO-MUX-2 secure in high vibration environments. Helpful LEDs indicate power data in data out and the alarm status to aid diagnostics.
