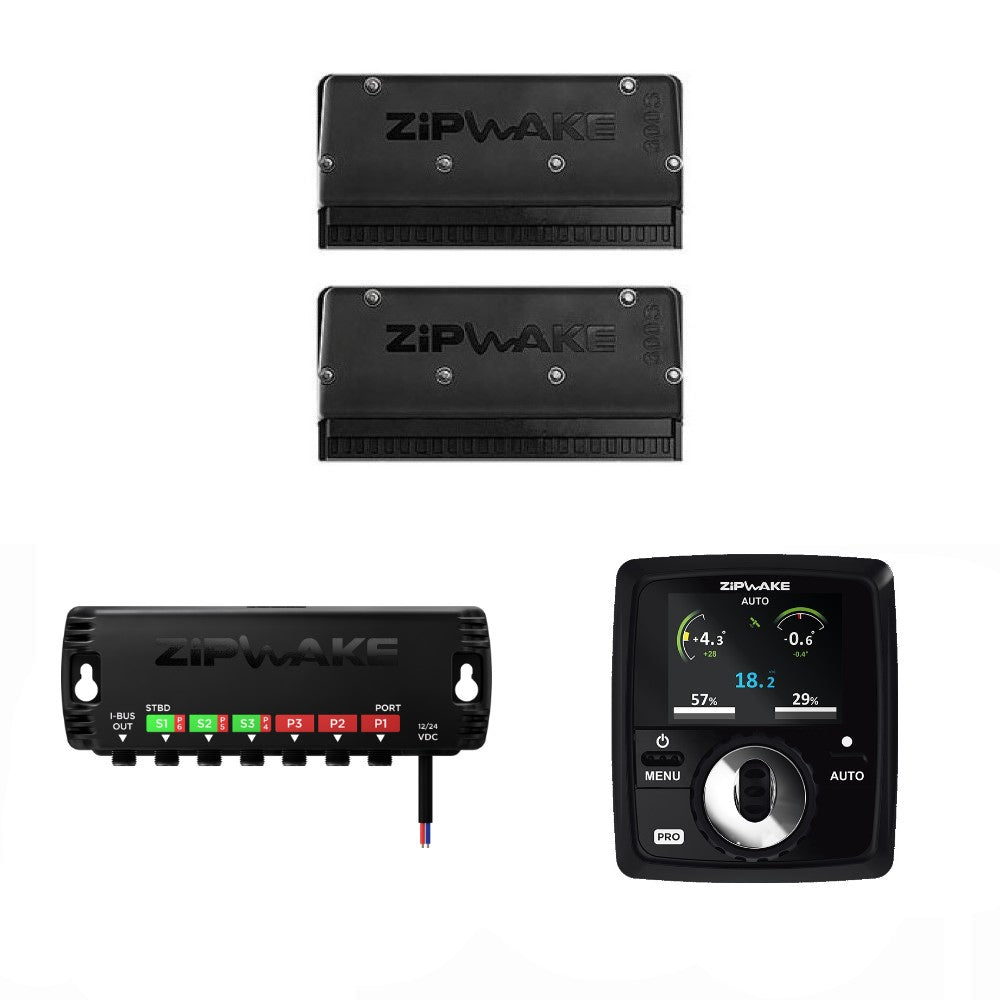

Zipwake Series S Pro Trim Control Kit - 300S Interceptor

Zipwake Series S PRO Dynamic Trim Control Kit Comprising:

• Control Panel Pro with 7m cable
• Distribution Unit Pro with 4m power cable
• 2 x 300S PRO Interceptors with 3m cables

• Zipwake Pro is a fully automatic and active trim control system
• Faster than Ever - Moving from 0 to 30 or 60mm in just 0.3 seconds
• Active Roll Control - Stability in all conditions
• Balanced Turn dynamically adjusts the heeling angle to cancel lateral forces
• Wake Shaping to create the ideal wake-surfing conditions.
• New PRO Interface
• Series S Pro - For boats up to 50ft
• 30mm Blade stroke

Go Pro - Complete Control in a Single Kit

Experience next-level trim control with PRO – the ultimate upgrade in performance comfort and fuel efficiency. Each PRO Kit Box includes everything you need to equip your vessel with Zipwake’s cutting-edge Dynamic Trim Control System featuring one pair of ultra-fast straight chine or round interceptors.

Control Panel Pro - The panel’s two unique control wheels provide easy quick and intuitive manual control of running trim heel or heading. However the system normally operates in automatic control mode which is enabled by a single press on the AUTO button. In this mode the built-in high-frequency GPS 3D gyro sensors and robust motion controller automatically ensure dynamic elimination of un- comfortable and dangerous boat pitch and roll.

Distribution Unit Pro - The distribution unit (DU PRO) with built-in voltage boost circuitry supplies the servo units with 36V DC power. It can accommodate
up to three Series E Pro dual-servo interceptors or six single-servo Pro interceptors.

Series S PRO Interceptors - Compact and slim with a blade stroke of 30 mm. Ideal for boats up to 50 feet especially where transom space is limited.

The New Pro

The ultimate upgrade to our Dynamic Trim Control System. PRO delivers unmatched responsiveness greater precision and more dynamic functionality than ever before.

Faster Than Ever - Zipwake PRO’s interceptors operate five times faster than previous models delivering a whole new level of performance and precision. Moving from 0 to 30 or 60 mm in just 0.3 seconds the increased blade speed enables ultra-fast adjustments to changing conditions. Whether you’re facing wind waves or shifting loads Zipwake PRO responds instantly — optimizing trim and stability for smoother safer and more accurate control when it matters most.

Active Pitch Control - With Active Pitch Zipwake PRO continuously and rapidly adjusts the boat’s trim to maintain the running angle set by the user. Regardless of head seas following seas beam seas or changes in weight distribution the system constantly works to keep the boat’s running trim angle. This automatic adjustment ensures improved acceleration better visibility enhanced stability greater comfort and lower fuel consumption.

Active Roll Control - The ultra-fast interceptors ensure quicker more precise corrections to rolling motions caused by changing conditions. PRO responds instantly delivering smoother safer handling keeping your boat steady and your passengers comfortable.

Balanced Turn - Balanced turn is faster and more precise with Zipwake PRO. The system dynamically adjusts the heeling angle to cancel out the lateral forces experienced onboard during turns resulting in more controlled manouvering and smooth comfortable turns at any speed.

Wake Shaping - Zipwake PRO allows using the interceptors as tool for shaping the wake to creating the ideal wake-surfing conditions.

New Interface - Our new interface has been refined and polished to deliver a smoother more intuitive user experience. Designed with the operator in mind it ensures the right information is presented at the right time clearly and efficiently.

In The Box

• 1 x Control Panel Pro with 7m cable
• 1 x Distribution Unit Pro with 4m cable
• 2 x 300S Pro Interceptors with 3m cable
• Operators Manual
• Installation Guide
• Drilling templates
• Quick Start Guide
