Automatic Trim And Stability Control

Enjoy a smoother ride better visibility improved fuel economy and enhanced safety. The Dynamic Trim Control System Series S brings together a family of durable fast-acting interceptors and intuitive 3D controls to put you in command of running trim heel and heading. The system is fully automatic. For boats up to 50 ft.

The Complete Package

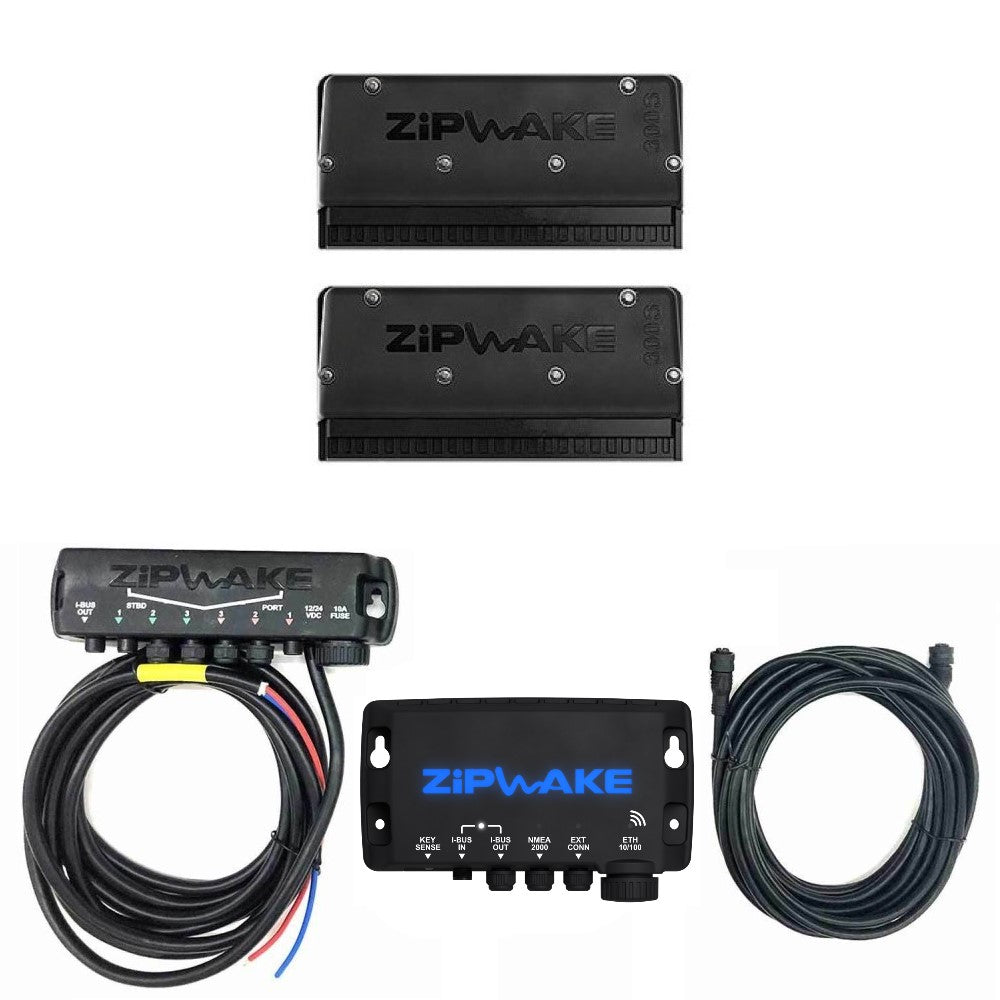

Each Series S Kit Box comes complete with all the parts and software needed to install a Dynamic Trim Control System including one pair of fast-acting interceptors. Choose between a standard Kit Box and a Kit Box for integration which includes an integrator module for hard-wired system integration and wireless communication. Here’s quick overview of the Kit Box contents.

Integrator Module - Get all the joy of a Zipwake system without adding clutter to your dashboard. The Integrator Module seamlessly connects the system to your boat’s multifunction display (MFD) and your smart devices

State Of The Art Interceptors - The Series S product family includes 13 fast-acting interceptors (four straight four V-shaped four chine and one intermediate). Perfectly adapted to any planing or semi-planing boat between 6–15 m (20-50 ft).

Distribution Unit - The heart of the system. The distribution unit supplies the system with power and accommodates up to six Series S interceptors. It is robust waterproof oil resistant and ignition protected for mounting in an engine room.

How It Works

See how the Zipwake Dynamic Trim Control System automatically eliminates pitch and roll for a safer ride and improved fuel economy in the video below.

Push Auto And Leave The Rest To ZipWake - No stress no worry. Just press the “auto” button and Zipwake will automatically keep your boat level. What could be easier?
