Windlass 800W Horizontal 6mm gypsy - 800H
Windlass 800W Horizontal 6mm gypsy - 800H
SKU:62009
Couldn't load pickup availability

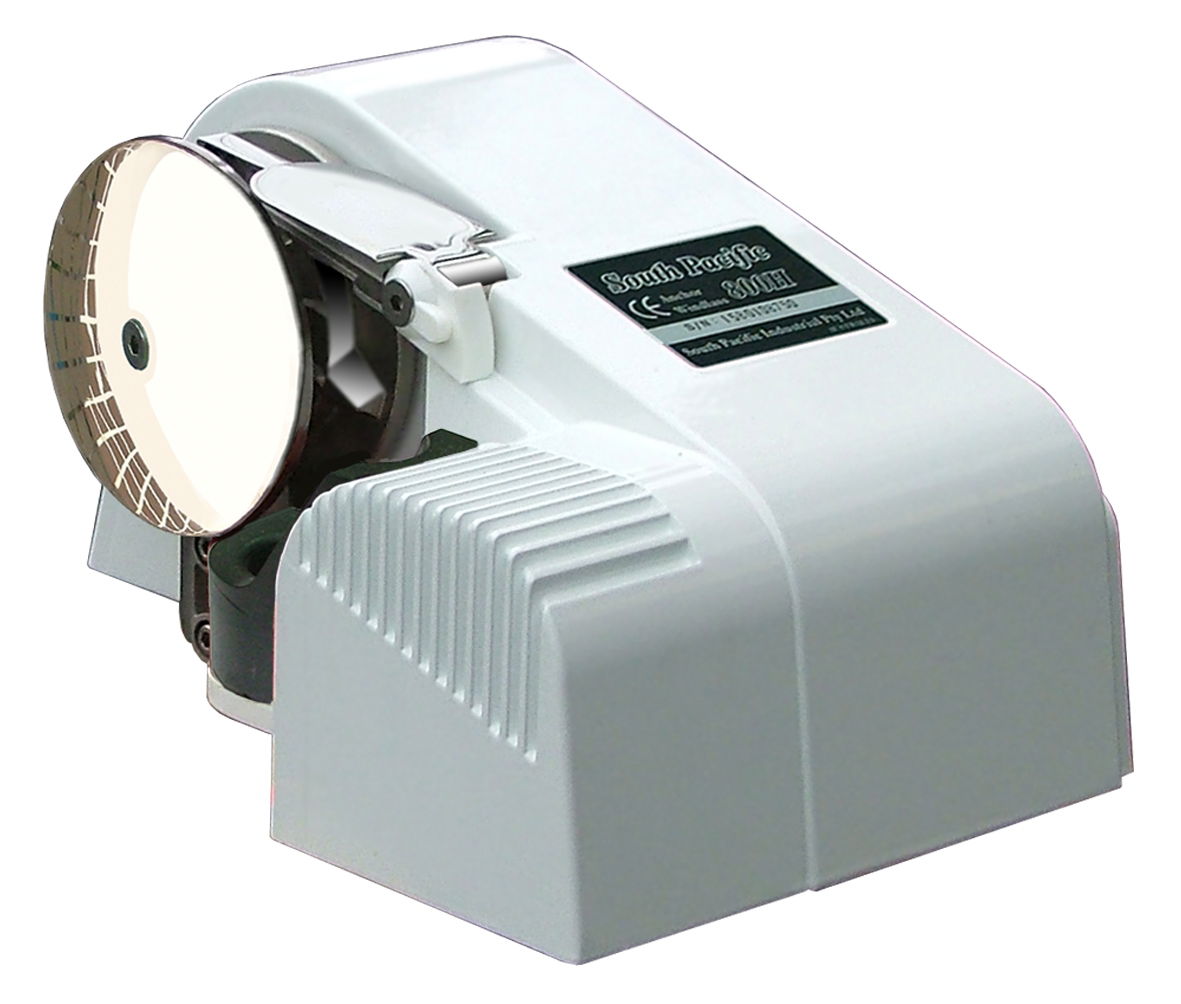

Horizontal 800W Windlass Kit (800H)
The South Pacific 800H is designed for boats from 20ft to 30ft or to handle an anchor up to 13.6kg. It is available with a 6mm or 8mm stainless steel gypsy. It has been developed using efficient spur gears rather than traditional worm gears which can reduce power consumption by up to 40%. The Stainless Steel Gypsy takes both rope and chain and a heat radiating system minimises motor overheating.
This compact windlass is easy to operate and easy to install and is supplied with a switch, circuit breaker, fixing bolts and manual.
Windlass Kit
1.Windlass 800H
2. Direct Control Switch SW-200 (no solenoid required)
3. Circuit Breaker CB-001-30
4. Fixing Bolts
5. Manual & Template
Features:
• Efficient spur gears, low current draw, high output power
• Efficient heavy duty DC motor produces less heat
• Stainless steel Gypsy takes both rope and chain
• A torque limiter absorbs sudden impacts, delivers smoother operation and greater reliability
• Compact one-piece housing ensures water resistance
• Aluminium alloy case with powder coated finish
• Installation is simple with the whole one-piece unit fitting on the deck.
Specifications
Power : 800W
Operating Voltage : 12V DC
Max. Working Load : 300 kg
Typical Working Load : 60 kg
Retrieval Speed : 19 m/min
Pay-Out Speed : 22 m/min Current
Draw (Typical) : 24 amp
Gear: Spur Gear
Dimensions (LxWxH) : 304 mm x 197mm x 153mm
Weight:7.8 kg)
Suit Chain Size : 6, 8mm DIN766,
Suit Rope Size : 12 - 14mm
Suit Deck Thickness : 3mm~60mmv
