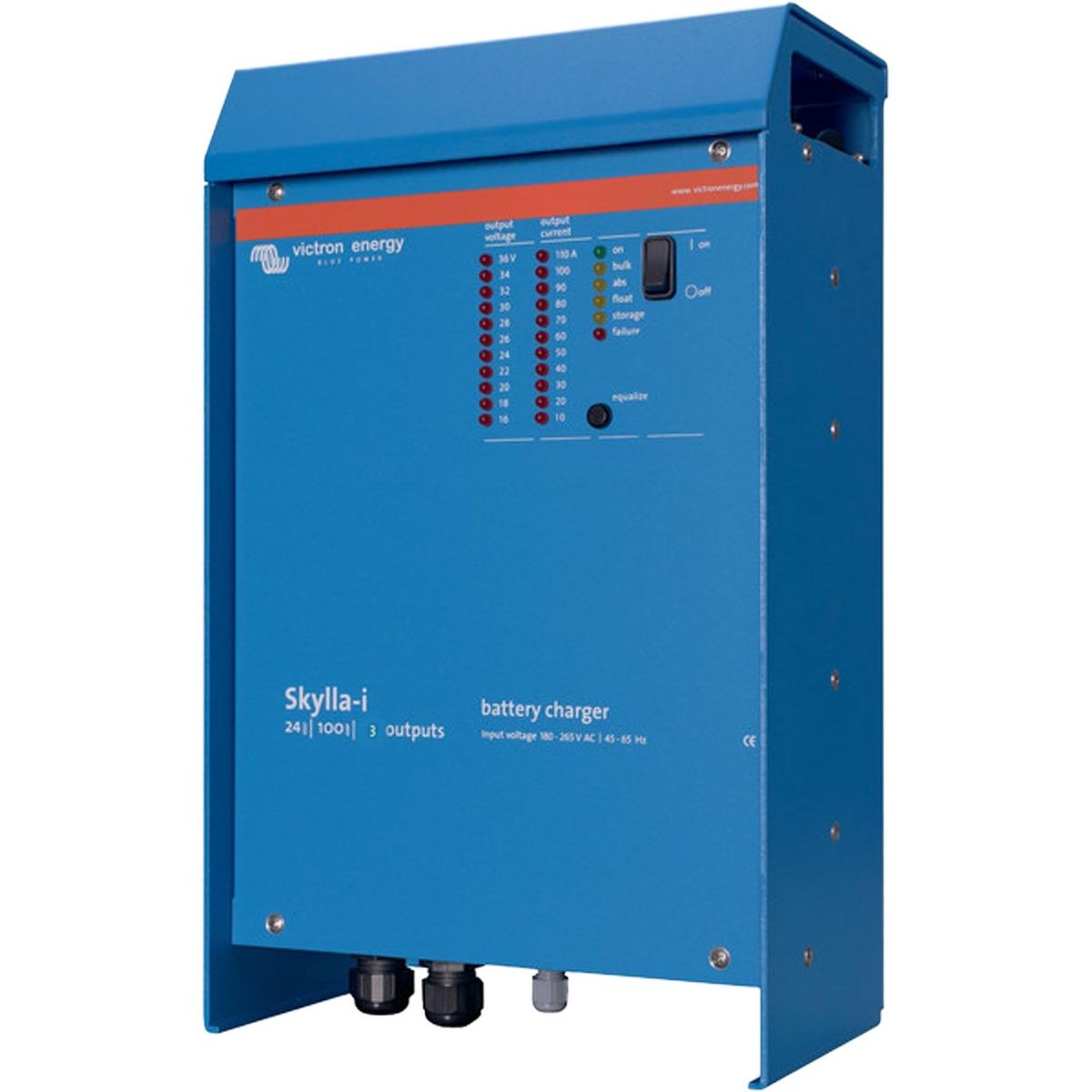

Victron Skylla-i Battery Charger (100A / 24V)
Victron Skylla-i Battery Charger (100A / 24V)
SKU:VC-SKI024100002
Couldn't load pickup availability
The main features of the Skylla-i are that is has synchronised parallel operation which means several chargers can be synchronised with the CAN bus interface. This battery charger also has a BatterySafe mode which prevents damage due to excessive gassing, Storage mode is also available which after 24 hours of non-use the float voltage will be reduced to 2.2V.
This Victron charger has a temperature sensor which lowers the charge voltage as the temperature increases and has battery voltage sense which compensates for loss due to cable resistance by using a voltage sense facility to ensure the battery always gets the correct charge voltage.
The Skylla-i is suitable for AC and DC supply and can also be used as a power supply.
You can find the specifications of this battery charger below:
Skylla-i (24/100 - 3)
- Input voltage: 230V AC
- Input voltage range: 185V to 265V AC
- Input voltage range: 180V to 350V AC
- Maximum AC input current at 180V AC: 20A
- Frequency: 45-65 Hz
- Power factor: 0.98
- Charge voltage 'absorption': 28.8V DC
- Charge voltage 'float': 27.6V DC
- Charge voltage ‘storage’: 26.4V DC
- Charge current: 3 x 100A
- Charge algorithm: 7 stage adaptive
- Battery capacity: 500-1000 Ah
- Charge algorithm, Li-Ion: 3 stage, with on-off control or CAN bus control
- Temperature sensor: Yes
- Can be used as power supply: Yes
- Remote on-off port: Yes (can be connected to a Li-Ion BMS)
- CAN bus communication port (VE.Can): Two RJ45 connectors, NMEA2000 protocol, galvanically isolated
- Synchronised parallel operation: Yes, with VE.Can
- Alarm relay: DPST AC rating: 240VAC/4A DC rating: 4A up to 35VDC, 1A up to 60VDC
- Forced cooling: Yes
- Protection: Battery reverse polarity (fuse) Output short circuit Over temperature
- Operating temp. range: -20°C to 60°C (Full output current up to 40°C)
- Humidity (non-condensing): Max 95%
- Enclosure:
Material & Colour: Aluminium (Blue RAL 5012)
Battery-connection: M8 bolts
230 VAC-connection: Screw-clamp 10mm² (AWG 7)
Protection category: IP 21
Weight: 7 kg (16 lbs)
Dimensions: Height 405mm x Width 250mm x Depth 150mm
- Standards:
Safety: EN 60335-1, EN 60335-2-29
Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
