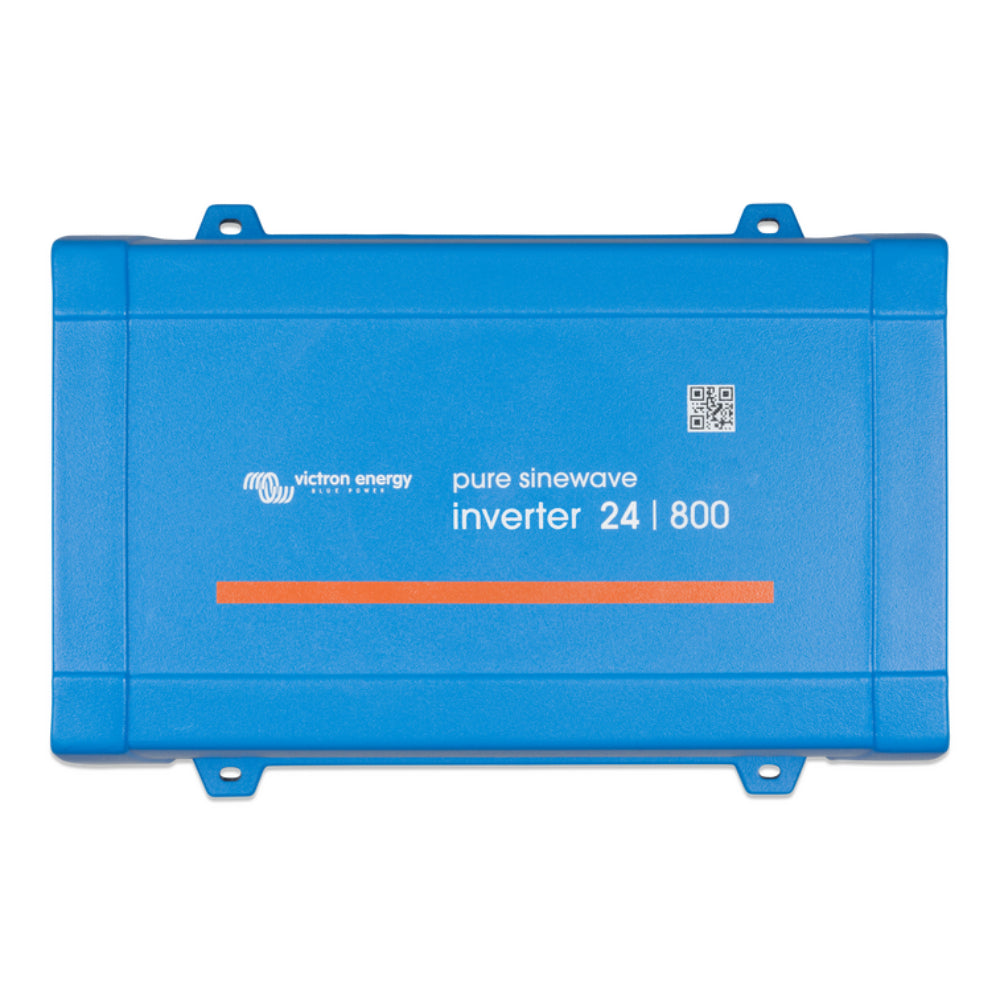

Victron Phoenix Inverter 24/800 230V VE Direct UK
Victron Phoenix Inverter 24/800 230V VE Direct UK
SKU:792-PIN241801400
Couldn't load pickup availability
- Voltage: 24V
- Cont. Output Power at 25°C: 800VA
- Peak Power: 1500W
- Output AC Voltage: 230V
- Efficiency: 91%
- Protection Category: IP21
- Dimensions: 105 x 216 x 305mm
- Weight: 5.5Kg
The Phoenix 24/1200 VE.Direct inverter allows you to power domestic equipment – requiring 230V – using ‘leisure’ or ‘automotive’ batteries rated at 12V 24V or 48V DC.
VE.Direct communication port
The VE.Direct port can be connected to:
- A computer (VE.Direct to USB interface cable needed)
- Apple and Android smartphones tablets MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)
Fully configurable:
- Low battery voltage alarm trip and reset levels
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load dependent cut-off level
- Output voltage 210 – 245V
- Frequency 50 Hz or 60 Hz
- ECO mode on/off and ECO mode sense level
Monitoring:
- In- and output voltage % load and alarms
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The Phoenix Inverter 24/1200 VE.Direct are short circuit proof and protected against overheating whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps halogen lamps or electric tools.
ECO mode
When in ECO mode the Phoenix Inverter VE.Direct will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable default: every 2 5 seconds). If the load exceeds a preset level the inverter will remain on.
Remote on/off
A remote on/off switch can be connected to a two pole connector or between battery plus and the left hand contact of the two pole connector.
DC connection with screw terminals
No special tools needed for installation.
Monitor operate & control your system
VictronConnect lets you get live status information and configure your Phoenix Inverter 24/1200 VE.Direct when connected to a VE.Direct Bluetooth Smart Dongle.
