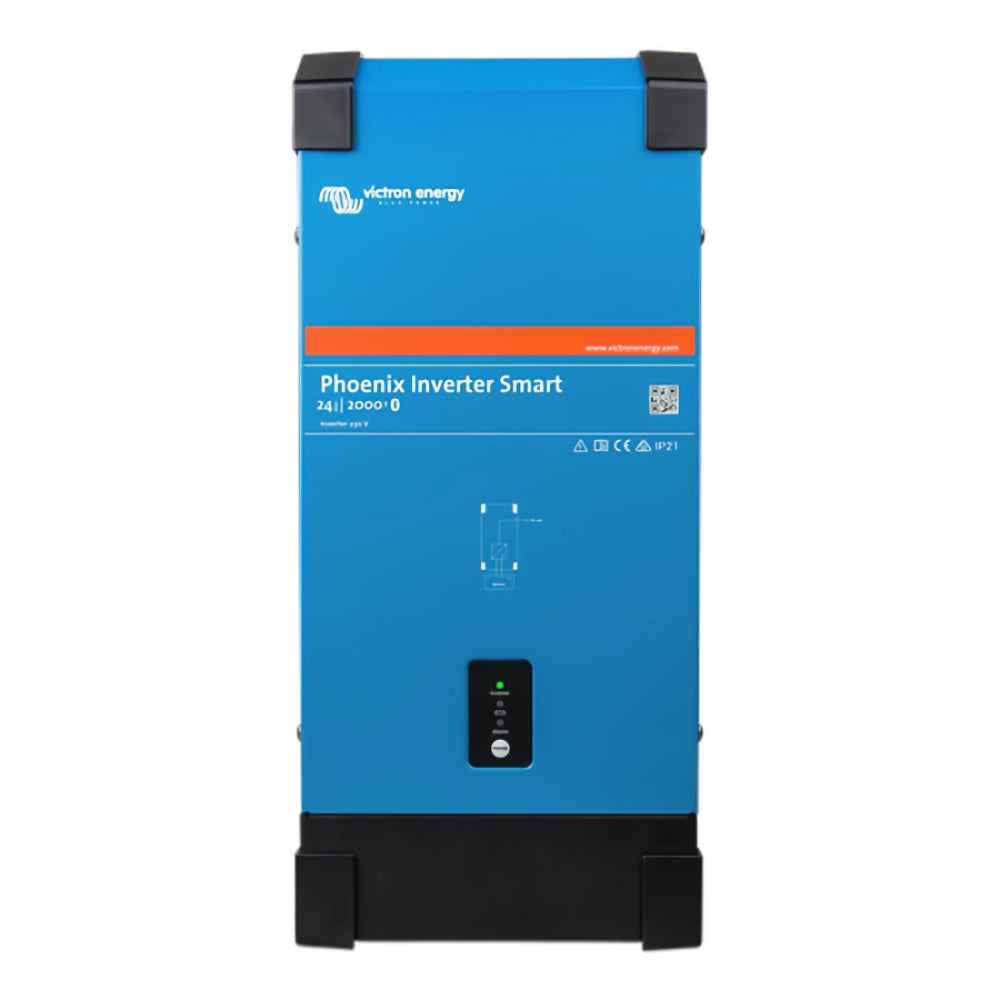

Victron Phoenix Inverter 24/2000 Smart 230V
Victron Phoenix Inverter 24/2000 Smart 230V
SKU:792-PIN242201000
Couldn't load pickup availability
- Peak Power: 3000W
- Voltage: 24V
- Cont. Output Power at 25°C: 2000VA
- Peak Power: 4000W
- Output AC Voltage: 230V
- Protection Category: IP21
- Efficiency: 94%
- Bluetooth Enabled: Yes
- Dimensions: 485 x 219 x 125mm
- Weight: 13g
- Warranty: 5 Years
The Phoenix Inverter 24/2000 Smart is an efficient and reliable inverter. Built on Victron\'s proven and field tested Phoenix inverter platform it now comes with a new slimmer design and full metal casing. Models are available in 1600VA 2000VA 3000VA and 5000VA for 12 24 or 48V systems.
It’s powerful enough to supply most common plug in appliances in any car boat caravan or home. A toroidal transformer provides a high peak power surge capacity stable voltage frequency and high quality sine-wave.
Installation is simpler than ever before with terminals now more accessible for the installer enabling a more professional finish.
Bluetooth is built-in and makes setting up the high power inverter easier than ever before.
Configure alarms alarm relay voltage cut-off output voltage frequency eco-mode and more all from within VictronConnect.
Features
Bluetooth built-in: fully configurable with a tablet or smartphone
- Low battery voltage alarm
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load dependent cut-off level
- Output voltage: 210 – 245V
- Frequency: 50 Hz or 60 Hz
- ECO mode on/off and ECO mode sense level
- Alarm relay
Monitoring:
- In- and output voltage load and alarms
VE.Direct communication port
The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The Phoenix Smart Inverters are short circuit proof and protected against overheating whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps halogen lamps or electric tools.
ECO mode
When in ECO mode the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2 5 seconds (adjustable). If the load exceeds the preset level the inverter will remain on.
Remote on/off
A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively the H terminal (left) of the two pole connector can be switched to battery plus or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle for example).
To transfer the load to another AC source: the automatic transfer switch
For low power inverters we recommend Victron\'s Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.
Control over system
Want to have perfect control over the system from anywhere while using a Phoenix Inverter 24/2000 Smart why not have a look at the Cerbo GX. Simply connect through the Victron Remote Management (VRM) portal or access directly using the separate GX Touch a MFD or the VictronConnect App thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity redefining smart power solutions in every way.
