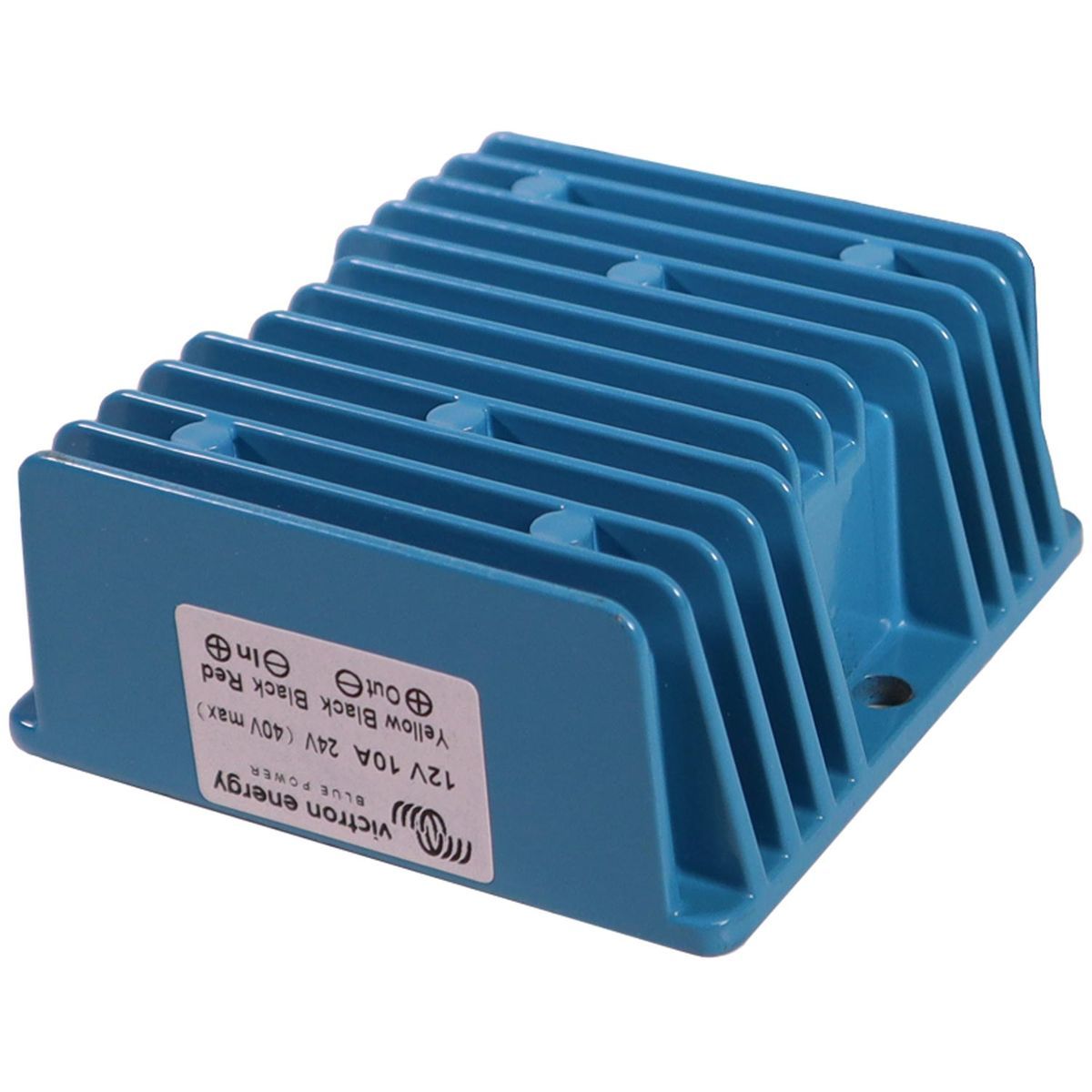

Victron Orion Voltage Converter (120W / 24V - 12V)
Victron Orion Voltage Converter (120W / 24V - 12V)
SKU:VC-ORI241210260
Couldn't load pickup availability
The Victron Orion voltage dropper is designed to convert an input voltage of 24V DC (in fact anywhere between 15V and 40V DC) into a 12V DC output for use on most electrical items on board boats, motorhomes and other automotive applications. The casing is made of cast aluminium and the electronics are moulded in resin. All this gives the Victron Orion an IP67 rating, protecting it from any water, oil or dirt that could make contact with it. There is also added protection against overheating, short circuits and reverse polarity connection.
This voltage converter includes 1.8 metre long cables, which should eliminate the need to add cable interconnections in most cases. This adds to the reliability of the product and decreases cost and installation time.
Victron 24/12-10
- Input Voltage Range: 15 - 40V DC
- Under Voltage Shutdown: 13V
- Under Voltage Restart: 14V
- No Load Current at 24V: 20mA
- DC Output Voltage: 12V +/- 3%
- Maximum Continuous Output Current: 10A
- Efficiency: 93%
- Ripple & Noise: 75mV pp
- Operating Temperature Rang: -20 to +70C (full rated output up to 40C)
- Overload Protection: Hiccup mode
- Short Circuit Proof: Yes
- Protection Against Reverse Polarity Connection: with external fuse or circuit breaker (not included)
Enclosure
- Material & Colour: Aluminium (Blue RAL 5012)
- Protection Category: IP67
- DC Connection: Two Input and Two Output Cables, Length 1.8M
- Cable Cross Section, Input: 1.5mm2 (15 AWG)
- Cable Cross Section, Output: 1.5mm2 (15 AWG)
- Weight: 300g
- Dimensions: Height 74mm x Width 74mm x Depth 32mm
Standards
- Safety: EN 60950
- Emission: EN 61000-6-3, EN 55014-1
- Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2
- Automotive Directive: ECE R10-4
- Vibration: IEC 68-2-6: 10-150 Hz / 1.0 G
