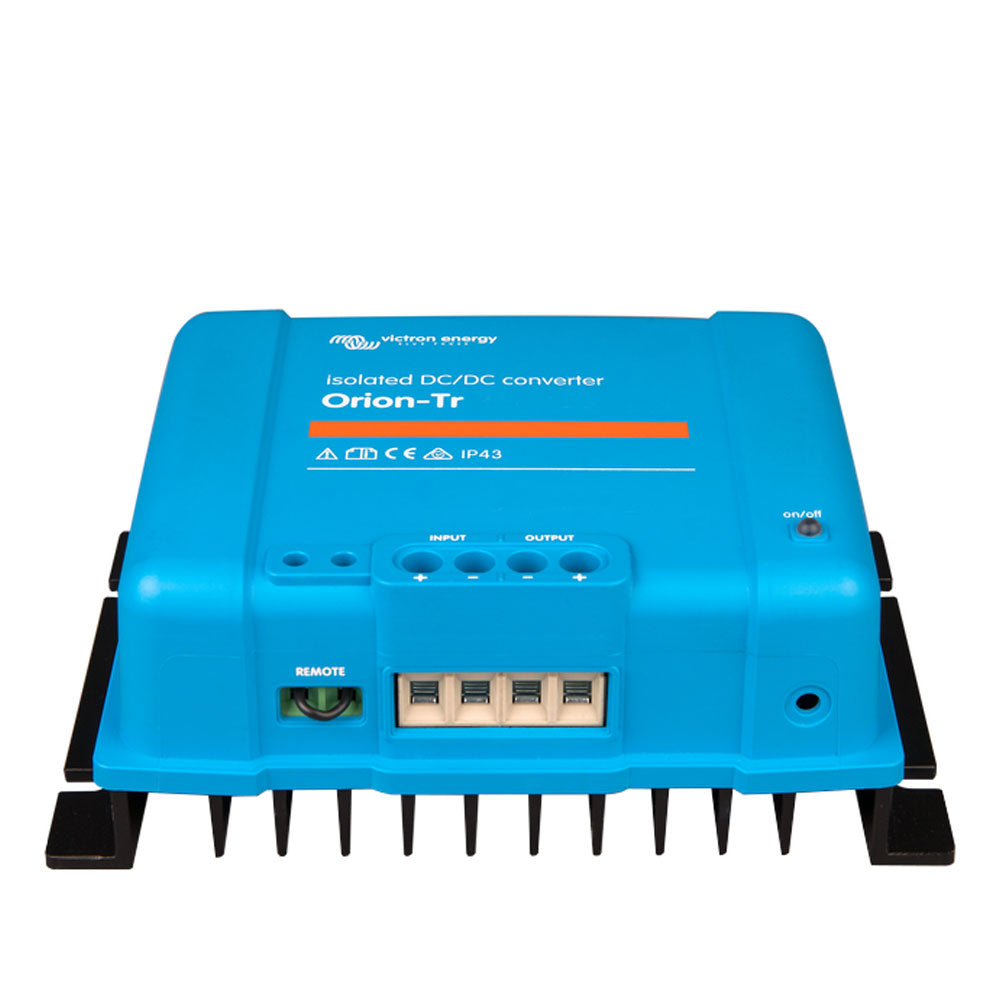

Victron Orion-Tr DC-DC Converter-Isolated 12/12-18A (220W)
Victron Orion-Tr DC-DC Converter-Isolated 12/12-18A (220W)
SKU:792-ORI121222110
Couldn't load pickup availability
Orion-Tr DC-DC converters isolated: 100 Watt series.
Remote on-off - The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger - For example to charge a 12 Volt starter or accessory battery in an otherwise 24 V system.
All models are short circuit proof and can be paralleled to increase output current - An unlimited number of units can be connected in parallel.
IP43 protection - When installed with the screw terminals oriented downwards.
Screw terminals - No special tools needed for installation.
Input fuse - On 12V and 24V input models only.
Galvanic isolation: 200 V dc between input output and case.
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C).
Humidity: Max. 95% non condensing.
DC connection: Screw terminals.
Maximum cable cross-section: 13 mm² AWG6.
Dimensions (HxWxD) / Weight: 130 x 186 x 70 mm / 1.3 kg.
Standards:.
Safety: EN 60950.
Emission: EN 61000-6-3 EN 55014-1.
Immunity: EN 61000-6-2 EN 61000-6-1 EN 55014-2.
Automotive Directive: EN 50498.
