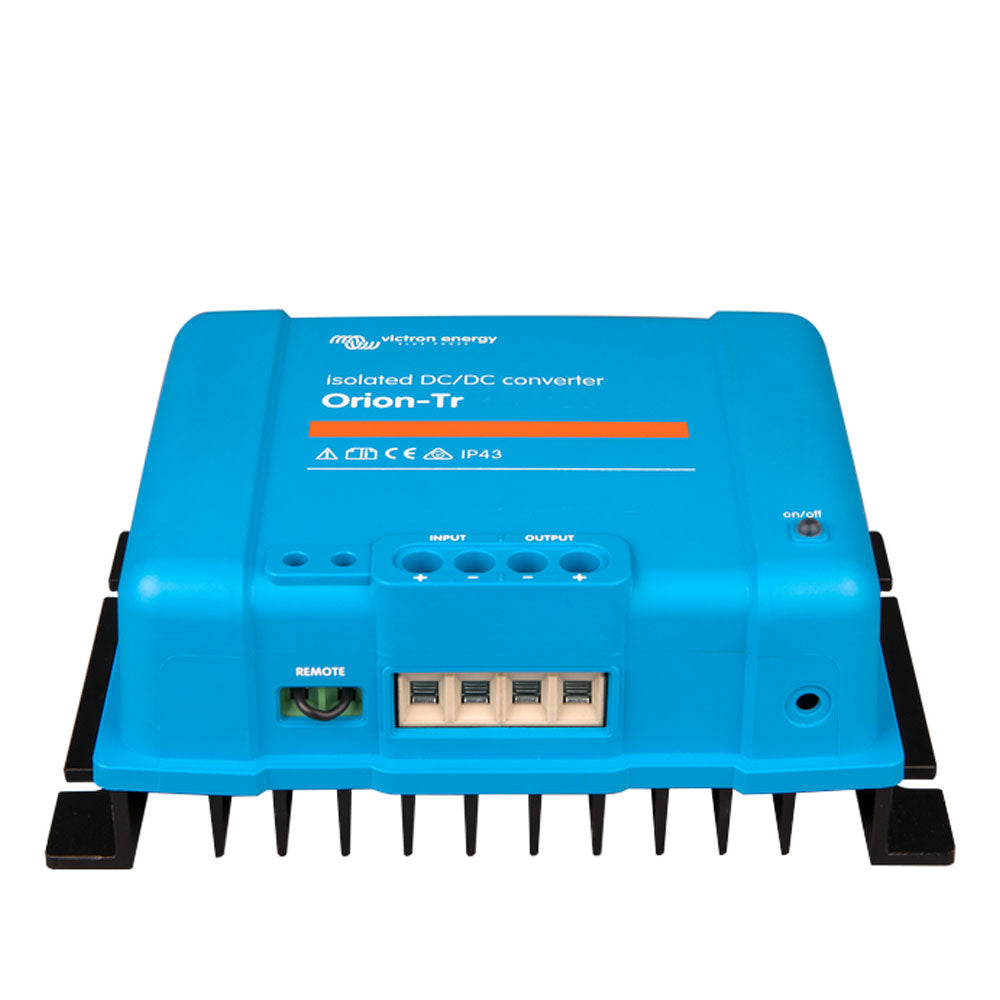

Victron Orion-Tr DC-DC Converter 24/12-30A (360W) Isolated
Victron Orion-Tr DC-DC Converter 24/12-30A (360W) Isolated
SKU:792-ORI241240110
Couldn't load pickup availability
- Input Voltage Range: 20-35V
- Under Voltage Shutdown: 14V
- Under Voltage Restart: 15V
- Nominal Output Voltage: 12.2V
- Output Voltage Adjust Range: 10-15V
- Short Circuit Output Current: 60A
- Cont. Output Power at 25°C: 430W
- DC Connection: Screw Terminals
- Protection Category: IP43
- Dimensions: H130 x W186 x D80 mm
- Weight (kg): 1.8
- Warranty: 5 Years
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse
On 12V and 24V input models only.
