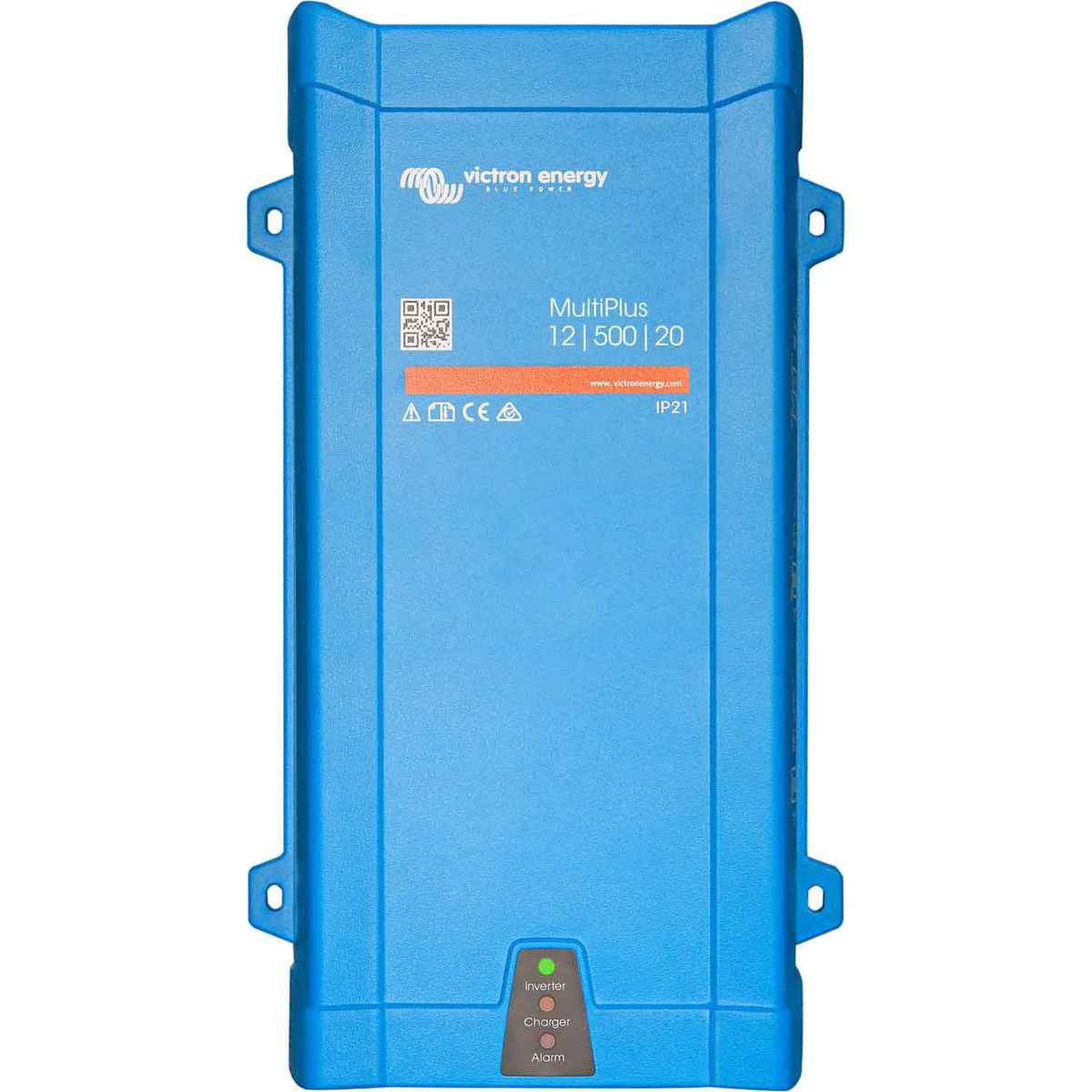

Victron MultiPlus Inverter/Charger (12V / 500VA / 20A) VC-PMP121500000

The Victron MultiPlus is a combined power inverter and battery charger in one unit. The PMP121500000 is suitable for charging 12 volt batteries from 187-265V AC input, as well as producing a true sine wave 230V AC output from these 12 volt batteries.

When connected to shore power or a generator, the MultiPlus will draw a large current and use it to power any AC loads connected to the output side. Any leftover power will then be used for charging batteries, while protecting the supply side from overloading. If there are periods where AC load exceeds the input power, either by adding more appliances or by the input power being disconnected, the multi will switch to battery power within 20 milliseconds, so fast that electronic equipment will continue to operate without any disruption.

If more power is required, up to 6 Victron MultiPlus units can be used in parallel operation. Each unit also features protections against problems such as short circuits, over / under voltage, high temperatures etc to prevent failure. Monitoring and controlling your Victron MultiPlus is easy too, through the Color Control GX, the Venus GX or any smartphone/tablet or computer with internet connection.

Inverter:
Input Voltage Range: 9.5V - 17V
Output: Output voltage: 230VAC ± 2% Frequency: 50Hz ± 0,1%
Cont. output power at 25°C: 430W
Cont. output power at 40°C: 400W
Cont. output power at 65°C: 300W
Peak power: 900W
Maximum efficiency: 90%
Zero-load power: 6W
Zero-load power in search mode: 2W

Charger:
AC Input: Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz
Charge voltage 'absorption': 14.4V
Charge voltage 'float': 13.8V
Storage mode: 13.2V
Charge current house battery: 20A
Charge current starter battery: 1A
Battery temperature sensor: Yes
