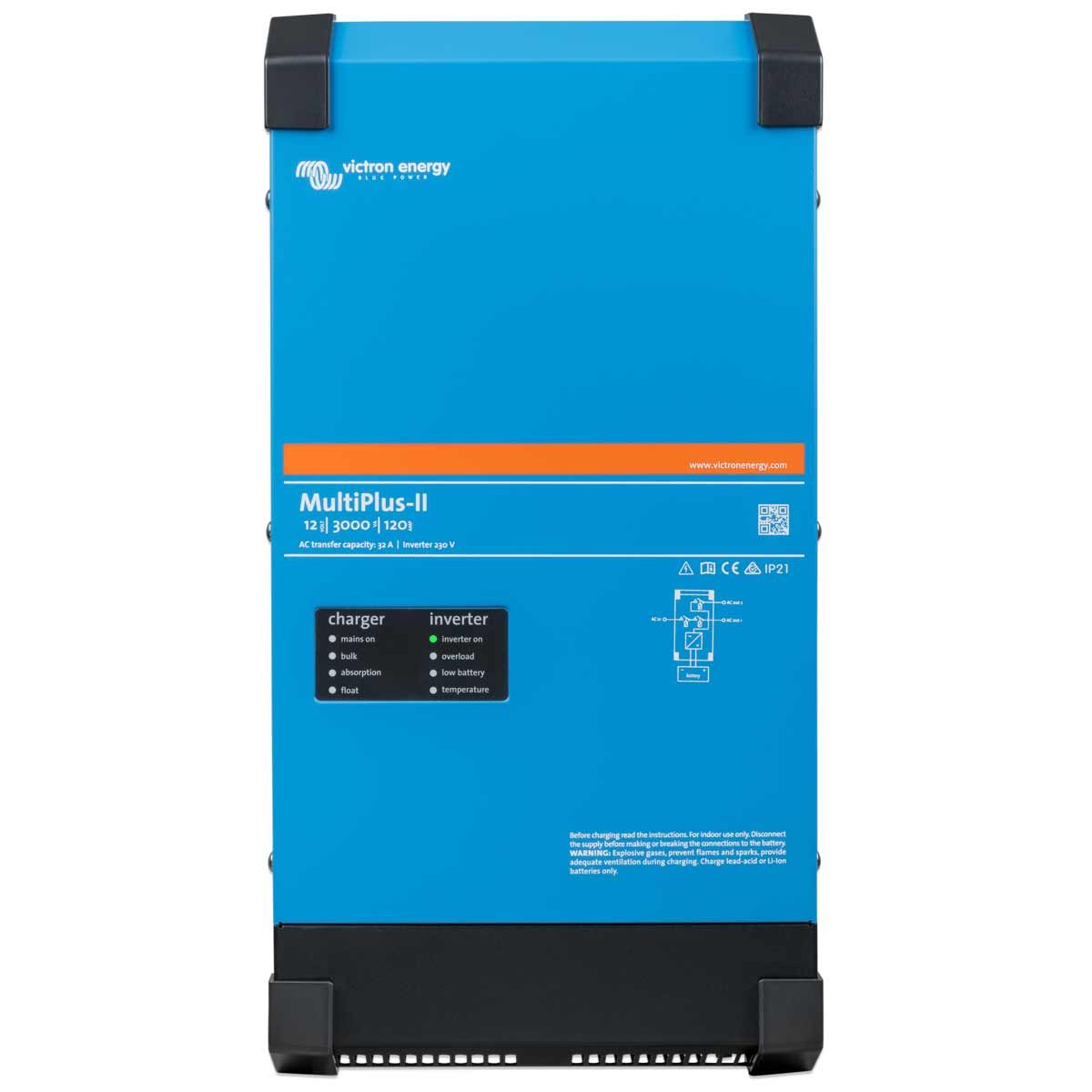

Victron MultiPlus-II Inverter/Charger (12V 230V / 3000VA / 120-32A) VC-PMP122305010

Victron MultiPlus-II inverter charger combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimise self-consumption with external current sensing (max. 32A). The combined inverter charger also has all the features of the Victron MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection with PowerAssist. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Victron MultiPlus-II is the key component in a Victron ESS (Energy Storage Systems), providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters.

This unit acts as an uninterrupted AC power supply (UPS function). In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more.

Please Note: for a short period of time this product was called MultiGrid-II.

Victron PMP122305010 MultiPlus-II 12V 230V / 3000VA / 120-32A Details:
PowerControl & PowerAssist: Yes
Transfer switch: 32A
Maximum AC input current: 32A

Inverter:
Cont. output power at 25°C: 3000VA
Max apparent feed-in power: 3000VA
Peak power: 5500W
Maximum efficiency: 93%
Zero load power: 13W
Zero load power in AES mode: 9W
Zero load power in Search mode: 3W

Charger:
Charge voltage 'absorption' 14.4V
Charge voltage 'float' 13.8V
Storage mode 13.2V
Max. battery charge current: 120A
Battery temperature sensor: Yes

General:
Auxiliary output: Yes (32A)
External AC current sensor (optional): 50A or 100A
Programmable relay: Yes
Protection: a – g
VE.Bus communication port: For parallel and three phase operation, remote monitoring and system integration
General purpose com. port: Yes, 2x
Remote on-off: Yes
Humidity (non-condensing): max 95%

Enclosure:
Battery-connection: M8 bolts
230V AC-connection: Screw terminals 13mm² (6 AWG)
