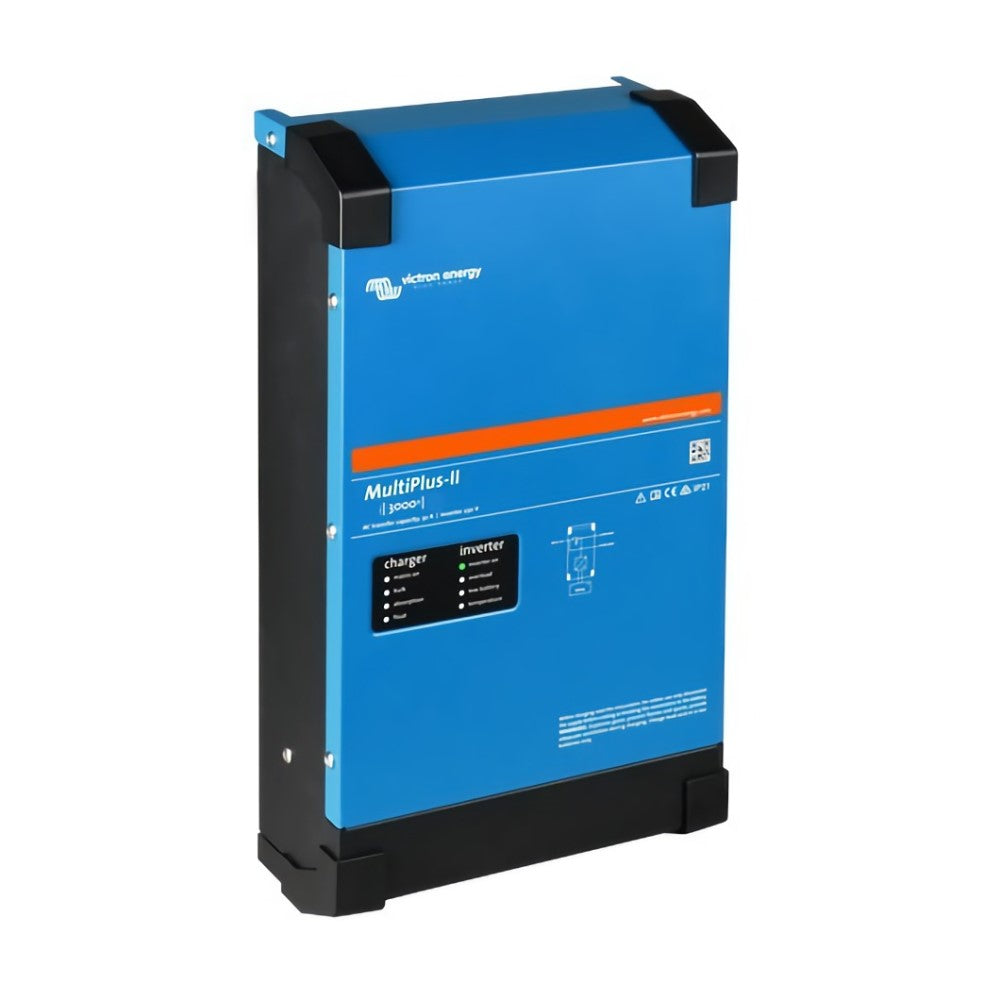

Victron MultiPlus-II 12/3000/120-32 230V Inverter Charger
Victron MultiPlus-II 12/3000/120-32 230V Inverter Charger
SKU:792-PMP122305010
Couldn't load pickup availability
- Voltage: 12V
- Cont. Output Power at 25°C: 3000VA
- Peak Power: 5500W
- Output AC Voltage: 230V
- Transfer Switch: 32A
- Max. AC Input Current: 32A
- Max. Battery Charge Current: 120A
- Protection Category: IP22
- Efficiency: 93%
- Bluetooth Compatible: Yes
- Dimensions: H546 x W275 x D147mm
- Weight: 19Kg
- Warranty: 5 Years
The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.
Features
A MultiPlus plus ESS (Energy Storage System) functionality
The MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus plus an external current sensor option which extends the PowerControl and PowerAssist function to 50A resp. 100A. The MultiPlus-II is ideally suited for professional marine yachting vehicle and land based off-grid applications. It also has built-in anti-islanding functionality and an increasingly long list of country approvals for ESS application. Several system configurations are possible. For more detailed information see the ESS Design and configuration manual.
PowerControl and PowerAssist – Boosting the capacity of the grid or a generator
A maximum grid or generator current can be set. The MultiPlus-II will then take account of other AC loads and use whatever is extra for battery charging thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period the MultiPlus-II will compensate insufficient generator shore or grid power with power from the battery. When the load reduces the spare power is used to recharge the battery.
Solar energy: AC power available even during a grid failure
The MultiPlus-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters.
Two AC Outputs
The main output has no break functionality. The MultiPlus-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus-II. Loads that should not discharge the battery like a water heater for example can be connected to this output.
Virtually unlimited power thanks to parallel and three phase operation (not available for the 8k and 10k models)
Up to 6 Multis can operate in parallel to achieve higher power output. Six 48/5000/70 units for example will provide 25 kW / 30 kVA output power with 420 Amps charging capacity. In addition to parallel connection three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a 75 kW / 90 kVA inverter and more than 1200 Amps charging capacity.
On-site system configuring monitoring and control
Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed). Several monitoring and control options are available: Cerbo GX Color Control GX Venus GX Octo GX CANvu GX laptop computer Bluetooth (with the optional VE.Bus Smart dongle) Battery Monitor Digital Multi Control Panel.
Remote configuring and monitoring
Install a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website free of charge. When connected to the internet systems can be accessed remotely and settings can be changed.
