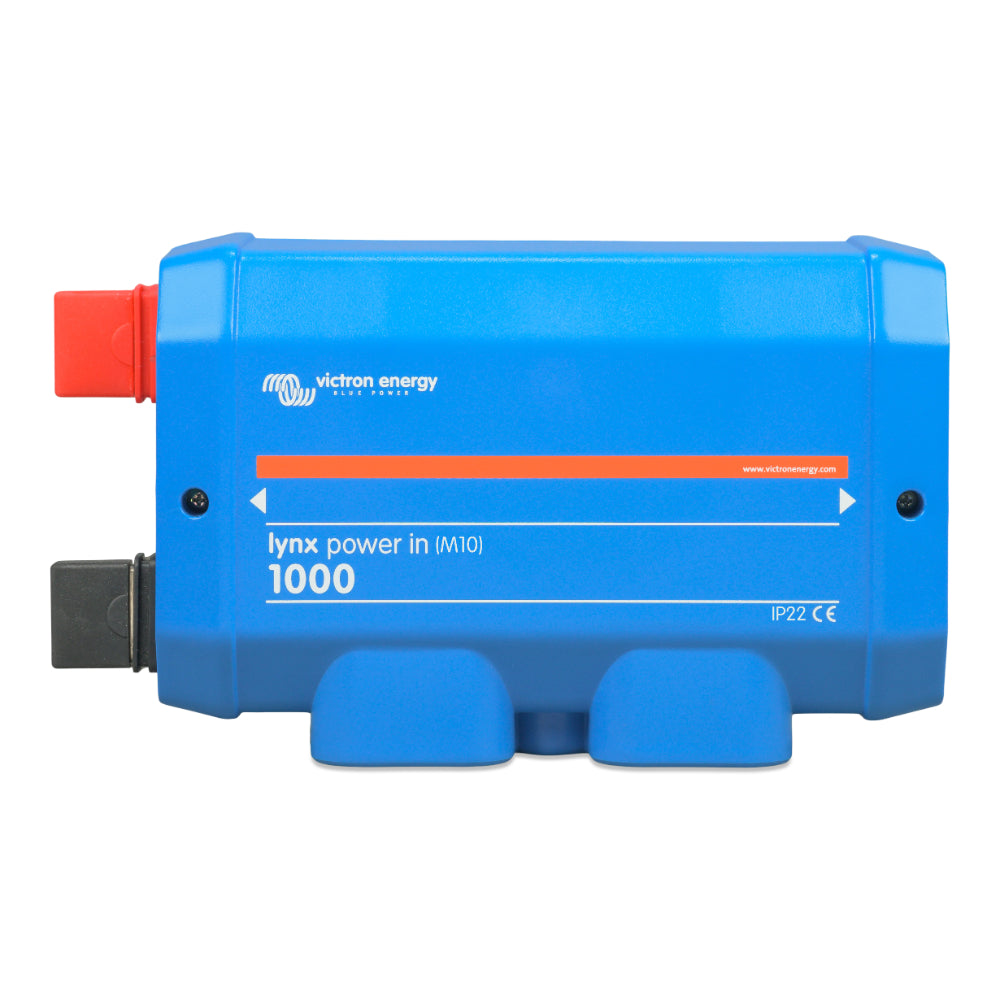

Victron Lynx Power In - M10
Victron Lynx Power In - M10
SKU:792-LYN020102010
Couldn't load pickup availability
The Victron Lynx Power In is a modular DC busbar used to connect batteries to the Lynx DC distribution system, available in M8 & M10 models.
- Voltage Range: 9 - 60V DC
- Current Rating: 1000A DC Continuous
- Busbar: M10
- Enclosure Material: ABS
- Dimensions: 290 x 170 x 80mm
- Weight: 2.1Kg
- Protection class: IP22
The Victron Lynx Power In is a modular DC busbar used to connect batteries to the Lynx DC distribution system available in M8 & M10 models.
The Lynx Power In contains a positive and negative busbar with 4 connections for batteries loads or chargers and a ground connection. It is part of the Lynx Distribution system and is available in two versions with M8 or M10 busbar.
Note: that M10 refers to the busbar connection joints where the modules are connected to each other. The fuse and cable connections are always M8.
The Lynx Distribution System
The Lynx Distribution System is a modular busbar system that incorporates DC connections distribution fusing battery monitoring and/or Lithium battery management. For more information see the DC Distribution Systems product page.
The Lynx Distribution System consist of the following parts:
- Lynx Power In - A positive and negative busbar with four batteries or DC equipment connections available in two versions with M8 or M10 busbar.
- Lynx Class-T Power In - A positive and negative busbar that accepts two Class-T fuses and has two battery or DC equipment connections available with M10 busbar.
- Lynx Distributor - A positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring available in two versions with M8 or M10 busbar.
- Lynx Shunt VE.Can - A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device. Available in two versions with M8 or M10 busbar.
- Lynx Smart BMS - For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 500A model with M8 or M10 busbars or 1000A model with M10 busbars.
