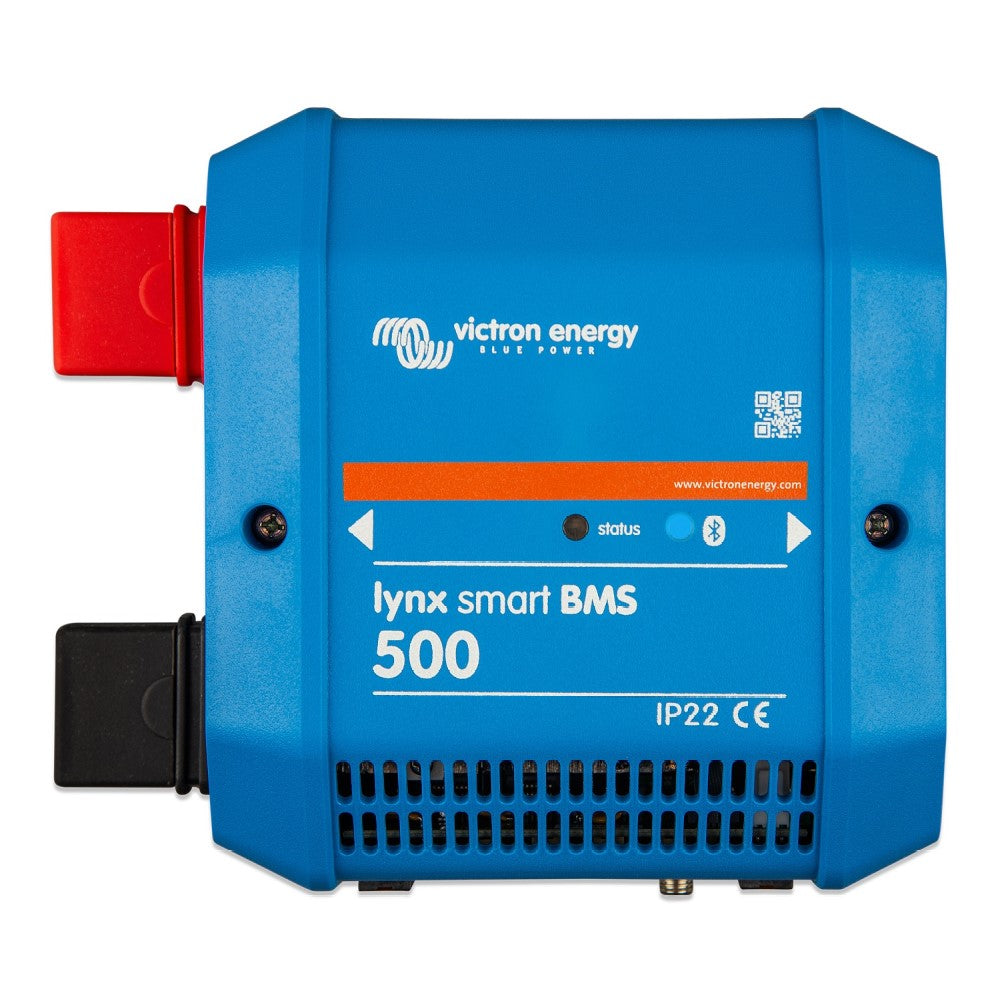

Victron Energy LYN034160200 Lynx Smart BMS 500

Victron Energy LYN034160200 Lynx Smart BMS 500

792-LYN034160200

£523.29
£754.95 £523.29
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Supply Voltage Range: 9-58Vdc
  • Main Safety Contactor Continuous Current Rating: 500A continuous
  • Reverse Polarity Protection: No
  • Supported System Voltages: 12 24 or 48V
  • Main Safety Contactor Peak Current Rating: 600A for 5 minutes
  • Battery BMS Cables Connection: Male and female circular 3-pole connector with M8 screw ring
  • VE.Can Connection: RJ45 and RJ45 terminator
  • Busbar Connection: M8
  • AUX Output Maximum Current Rating: 1.1A continuous protected by resettabel fuse
  • Power Consumption in Active Mode: Approximately 2.6W (200mA at 13V) depending on the state of the relays
  • Power Consumption Hibernate or Standby Mode: Approximately 10.4mW (0.8mA at 13V)
<a class=\"pagebuilder-button-primary\" href=\"https://www.dropbox.com/s/4etkrun749n04cr/Datasheet-Lynx-Smart-BMS-EN.pdf?dl=0\" target=\"_blank\" style=\"text-align: center; font-weight: normal;\"> <i class=\"fas fa-file-alt\"></i> <span data-element=\"link_text\" style=\"font-weight: 600;\"> Datasheet</span> </a> <a class=\"pagebuilder-button-primary\" href=\"https://apps.apple.com/us/app/victron-connect/id943840744\" target=\"_blank\" style=\"text-align: center; font-weight: normal;\"> <i class=\"fab fa-app-store\"></i> <span data-element=\"link_text\" style=\"font-weight: 600;\"> iOS App</span> </a> <a class=\"pagebuilder-button-primary\" href=\"https://play.google.com/store/apps/details?id=com.victronenergy.victronconnect\" target=\"_blank\" style=\"text-align: center; font-weight: normal;\"> <i class=\"fab fa-google-play\"></i> <span data-element=\"link_text\" style=\"font-weight: 600;\"> Android App</span> </a> <a class=\"pagebuilder-button-primary\" href=\"https://updates.victronenergy.com/feeds/VictronConnect/windows/w7/VictronConnectInstaller.exe\" target=\"_blank\" style=\"text-align: center; font-weight: normal;\"> <i class=\"fab fa-windows\"></i> <span data-element=\"link_text\" style=\"font-weight: 600;\"> Windows App</span> </a> <a class=\"pagebuilder-button-primary\" href=\"https://apps.apple.com/us/app/victronconnect/id1084677271?ls=1&mt=12\" target=\"_blank\" style=\"text-align: center; font-weight: normal;\"> <i class=\"fab fa-apple\"></i> <span data-element=\"link_text\" style=\"font-weight: 600;\"> Apple Mac App</span> </a>

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries and the Lynx Smart is the most feature rich and complete option. Its main features are:

  • Built-in 500A contactor used as a fall-back safety mechanism and also available as a remote controllable main systems switch
  • Battery monitor indicating state of charge percentage and more data.
  • Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
  • Bluetooth for use with the VictronConnect App for setup and monitoring.
  • Local and remote monitoring using a Victron GX device for example the Cerbo GX
  • The Lynx Smart BMS is part of the modular Lynx Distribution system.
