792-SPM040201200

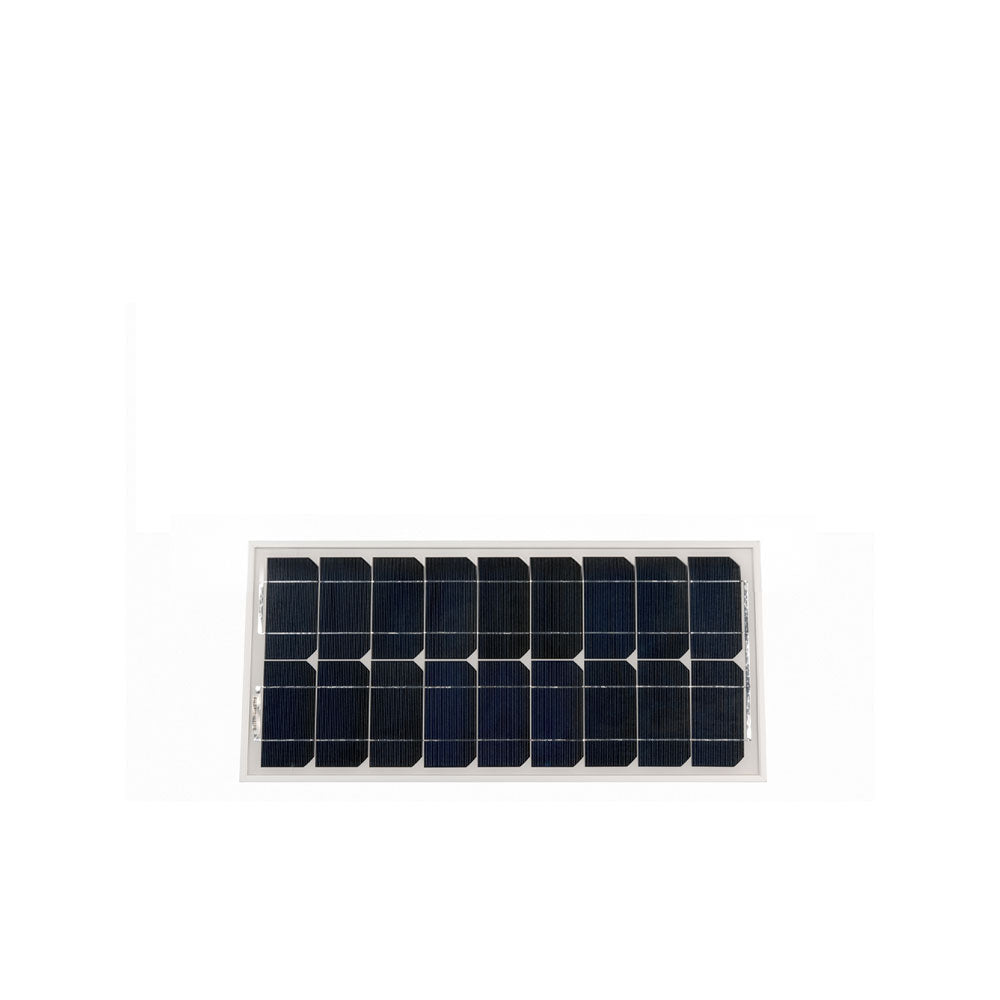

Victron BlueSolar Monocrystalline 12V Solar Panel - 20W

  • Regular price £36.00


  • Power: 20W
  • Size: 440 x 350 x 25mm
  • Weight: 1.9Kg
  • Vmp (VDC): 18.5
  • Imp (A): 1.09
  • Voc (V): 22.6
  • Isc (A): 1.19
<a class=\"pagebuilder-button-primary\" href=\"https://www.dropbox.com/s/qrzxvtbapmkyet3/Datasheet-BlueSolar-Monocrystalline-Panels-EN.pdf?dl=0\" target=\"_blank\" style=\"text-align: center; font-weight: normal;\"> <i class=\"fas fa-file-alt\"></i> <span data-element=\"link_text\" style=\"font-weight: 600;\"> Datasheet</span> </a>

Low voltage-temperature coefficient enhances high-temperature operation. Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
25-Year limited warranty on power output and performance. 5-Year limited warranty on materials and workmanship.

Sealed waterproof multi-functional junction box gives high level of safety. High performance bypass diodes minimize the power drop caused by shade. Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.

A sturdy anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems. Highest quality high-transmission tempered glass provides enhanced stiffness and impact resistance. High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors
