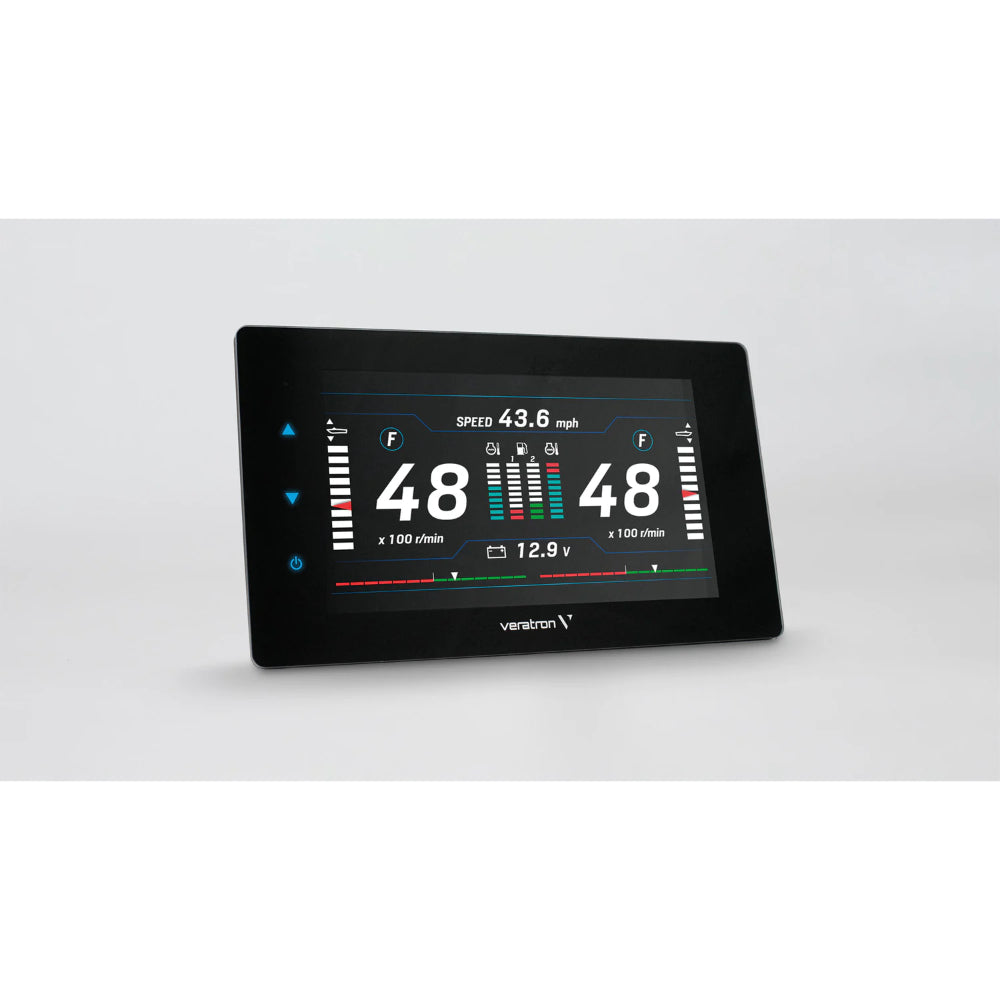

Veratron VMH-70 Colour NMEA 2000 Multifunction Display
Veratron VMH-70 Colour NMEA 2000 Multifunction Display
SKU:797-B00129201
Couldn't load pickup availability
- Display: 7\" sun-readable IPS TFT touchscreen display
- Materials: Aluminium case PBT and mineral glas front
- Nominal voltage: 12 / 24 V
- Operating voltage: 9 - 32 V
- Current consumption: ≤ 900 mA (normal mode) + 100mA for each EasyLink satellite gauge
- Dimensions: 220 x 128 mm (outer) 118 x 206 mm (mounting hole)
- Resolution: 800 x 480
- Protection class: IP X7 (with cables connected)
- Digital Inputs: NMEA 2000 SAE J1939 Video composit Alarm input
- Analog Inputs: 6x resistive 2x frequency 3x voltage 2x capacitive
- Output data: NMEA 2000 EasyLink Alarm output
- Operating Temperature: From -25 to +70 °C
- NMEA 2000 certified with embedded analog gateway
The VMH 70 display is designed to manage large amounts of complex data and thanks to its real-time operating system it ensures full control on vital engine information immediately after power up.
Easily configured to display information from up to four engines when connected to NMEA2000 or two engines via J1939 or analog inputs simultaneously it has large possible setting. This allows users to group similar items such as single or dual engines battery performance fuel water waste tank level rudder and trim onboard systems navigation and weather if desired.
The device has an integrated light sensor that adjusts for easy reading without eye strain no matter how bright or dark the conditions and two camera inputs allow to control the engine compartment during navigation and keep an eye on the main deck while maneuvering.
The embedded NMEA 2000 gateway brings all the sensor readings and alarms to any external multi functional display saving the cost of an additional converter.
