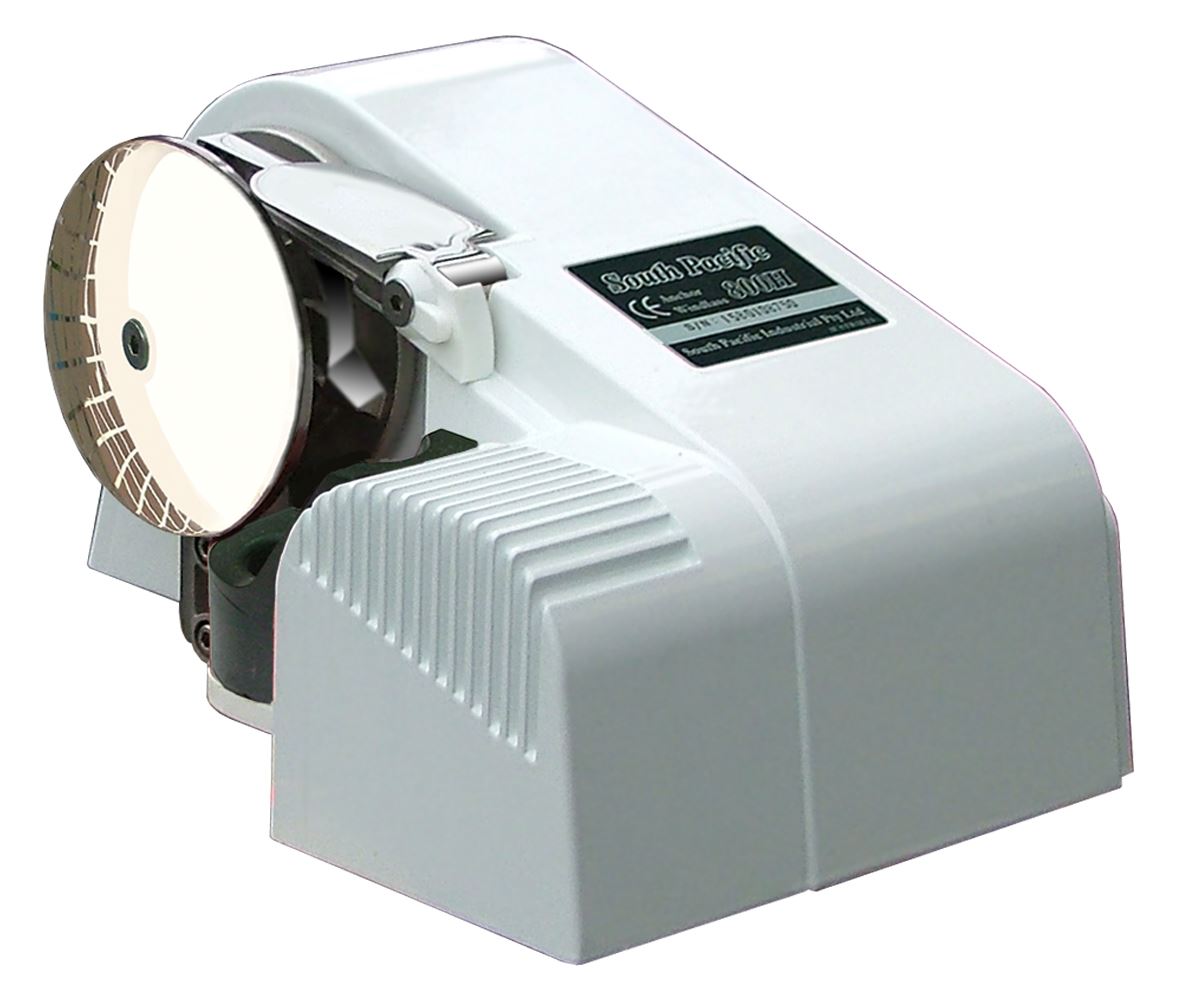

Horizontal 800W Windlass Kit (800H)
The South Pacific 800H is designed for boats from 20ft to 30ft or to handle an anchor up to 13.6kg. It is available with a 6mm or 8mm stainless steel gypsy. It has been developed using efficient spur gears rather than traditional worm gears which can reduce power consumption by up to 40%. The Stainless Steel Gypsy takes both rope and chain and a heat radiating system minimises motor overheating.
This compact windlass is easy to operate and easy to install and is supplied with a switch, circuit breaker, fixing bolts and manual.
Windlass Kit
1.Windlass 800H
2. Direct Control Switch SW-200 (no solenoid required)
3. Circuit Breaker CB-001-30
4. Fixing Bolts
5. Manual & Template
Features:
• Efficient spur gears, low current draw, high output power
• Efficient heavy duty DC motor produces less heat
• Stainless steel Gypsy takes both rope and chain
• A torque limiter absorbs sudden impacts, delivers smoother operation and greater reliability
• Compact one-piece housing ensures water resistance
• Aluminium alloy case with powder coated finish
• Installation is simple with the whole one-piece unit fitting on the deck.
Specifications
Power : 800W
Operating Voltage : 12V DC
Max. Working Load : 300 kg
Typical Working Load : 60 kg
Retrieval Speed : 19 m/min
Pay-Out Speed : 22 m/min Current
Draw (Typical) : 24 amp
Gear: Spur Gear
Dimensions (LxWxH) : 304 mm x 197mm x 153mm
Weight:7.8 kg)
Suit Chain Size : 6, 8mm DIN766,
Suit Rope Size : 12 - 14mm
Suit Deck Thickness : 3mm~60mmv
