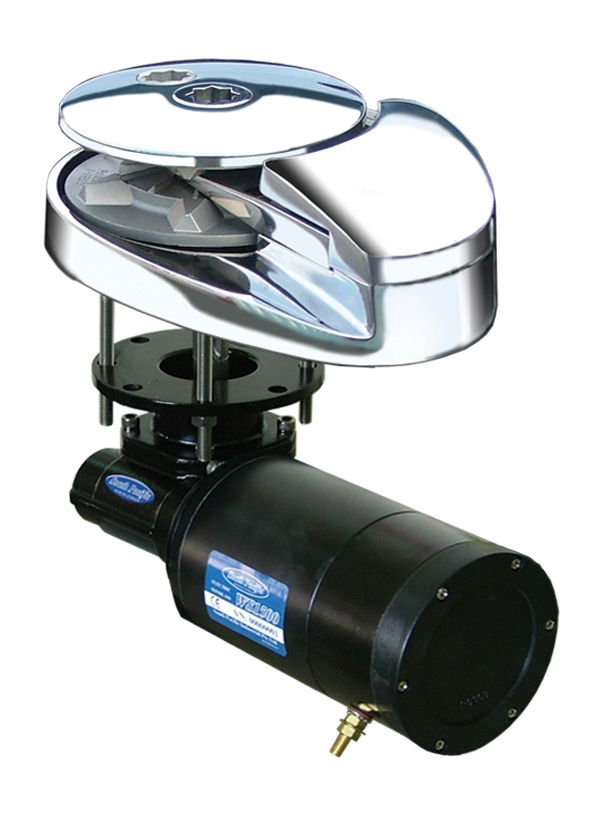

South Pacific Windlass 1500W Vertical SS base 10mm - WS1500
South Pacific Windlass 1500W Vertical SS base 10mm - WS1500
SKU:62044
Couldn't load pickup availability
Vertical 1500W Windlass Kit with Aluminium Base, Horizontal Power Unit with 10mm Gypsy
South Pacific WS1500 series is designed for boats from 40ft to 60ft or to handle an anchor up to 27kg. The power unit is held horizontally and beneath the deck which reduces the space requirement of the unit but at the cost of a more complex gear box and power efficiency. The unit benefits from an improved self-locking worm gear box which gives it high stress capacity and can also can reduce power consumption by up to 15%. The power unit can be oriented in one of eight horizontal positions. A built in torque limiter absorbs sudden impacts to deliver a smoother operation and greater reliability. Available with an 8mm stainless steel gypsy.
Windlass Kit
1. Windlass WS1500
2. Switch for Solenoid SW-025
3. 200A solenoid K-200
4. Circuit Breaker CB-003
5. Fixing Bolts
6. Manual & Template
Features
• A torque limiter to deliver smoother operation and greater reliability
• Efficient heavy duty DC motor
• Stainless steel Gypsy takes both rope and chain
• Manual retrieval capable
Specifications
Power: 1500W
Operating Voltage: 12V /24V
Weight: 16kg
Max. Working Load: 680kg
Typical Working Load: 120kg
Current Draw (Typical): 90A(12V) 45A(24V)
Current Draw (Max.):440A (12V) 220A (24V)
Gear type: worm gear
Retrieval Speed: 20m/min
Pay-Out Speed: 22m/min
