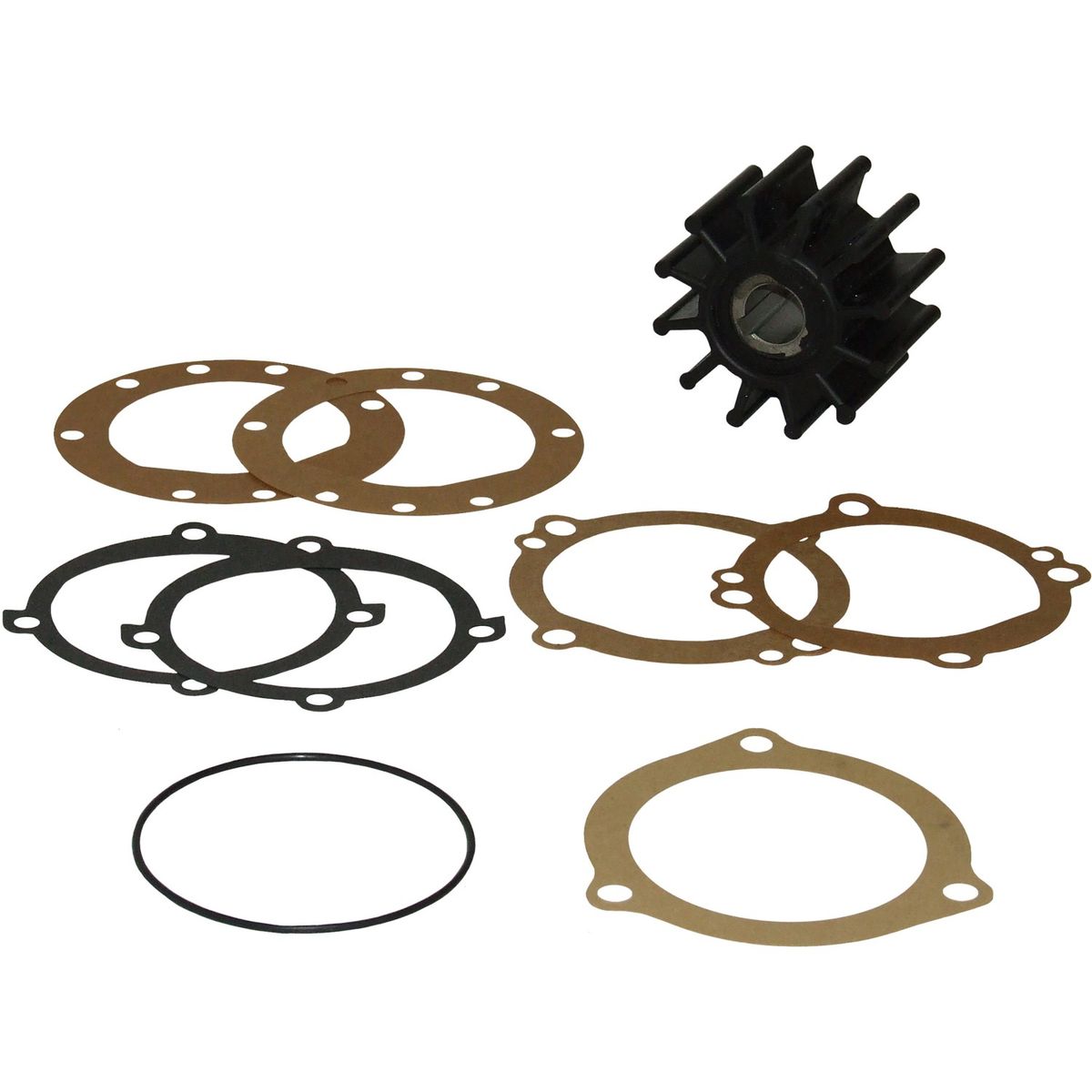

Sherwood 10615K Flexible 12 Vane Neoprene Impeller Kit (Through Key) SW10615K

This genuine Sherwood impeller 10615K model is supplied with an O-ring, gaskets and a technical guide. It has 12 vanes and features a through key keyway. The neoprene impeller is designed to fit on a 5/8" pump shaft and should only be used to pump water.

Sherwood marine raw water pumps feature a flexible neoprene impeller which attaches to the shaft. The shaft-rotation powers the impeller which transfers the water by creating a vacuum on the inlet side, forcing water out in a uniform flow on the outlet side. As such an important component, you should ensure that your pump impeller is always in top condition and that you always use the correct impeller for your application. This will help to ensure the best engine performance and prolong engine life.

Sherwood recommend that all impellers are replaced at least annually (depending on application) to maintain impeller performance, however it is good practice to inspect them often to check for excessive abrasions or damage. It is also recommended that during long periods of being unused, impellers should be removed from the pump housing to prevent ultraviolet deterioration, vanes setting into position and copper bonding of the impeller to the housing. Any issues with your impeller can lead to engine overheating, which is the main reason for premature engine wear.

Sherwood 10615K impeller fits the following:
- Sherwood B04, C-03, D05, D55, E35, F10, F75, F95, G3, G4, G5, G5-1, G7, G7B, G8, G26-01, G45-1, G45-2, G46, G50, G55-2, G56, G85, G1004, G1005, G1006-01, G1008-01, H-85, K90, L10, L10B, L80, L90, M71-01, P101, P102, P105, P105-01, P109, P1012-01, P10550G, R101, R102, R10970G, RPBC, S11040G & S11095G pumps
- Chris Craft 16.80-10010, 16.80-18340 & 16.80-18347 pumps
- Chrysler 2846428, 2847629, 3619030, 3619212, 3675763, 3745511, 4142878 & E-7592-M pumps
- Commander C2-10-610 pumps
- Crusader 40050, 40070 & 97179 pumps
- Cummins 3912019 pumps
- Escort D5MZ8502 pumps
- Gray Marine G85106 pumps
- Isuzu X-26230-1023 pumps
- Onan 132-0278, 132-0343, 132-0347, 132-0356 & 132-0413 pumps
- OMC 981937, 981939 & 985096 pumps
- Perkins NA001175 pumps
- Westerbeke 16432 pumps

The Sherwood neoprene impeller 10615K can be found on the following engines:
- Chris Craft Model 307-327Q, 327F, 427 & 454 engines
- Chrysler Marine 318 & 360, LM318-X, LM340-X, LM341-X, LM342-X, LM343-X, LM344-X, M383X, M413E & M440X engines
- Commander 302 & 351 engines
- Crusader Model 220, 270, 300 & 350 engines
- Cummins 210 HP 4B engines
- Escort 302 & 351 engines
- Gray Marine Gov engines
- Indmar 4 & 6 cylinder and Gov engines
- Isuzu 4 & 6 cylinder diesel engines
- Lenco, Marine Power & Osco Motors engines
- North American 6.2 litre diesel engines
- Onan 5 & 6 cylinder diesel & 10-25 KW engines
- OMC inboard & V8 Chevy engines
- Perkins 6-354 diesel engines
- Pleasurecraft Marine Chevy 454, 7.3 litre diesel, 350 GM, 5.7L & 8.1L V8 GM engines
- Volvo Penta engines & crank drive engines
- Westerbeke 4 & 6 cylinder diesel engines
