818-YSE-DB
- Frequency: 860-960Mhz & 1750-2100Mhz
- Polarisation: Vertical
- Impedance: 50 Ohms
- VSWR: <1.5:1 at 860-960Mhz. <2:1 at 1750—2100MHz
- Gain: 3dB
- Cable: 5m RG58
- Connector: TNC Plug as standard
- Power Rating: 50W
- Element Material: Solid Brass sleeved dipole
- Length: 0.15m
- Mounting: Supplied as Standard with R/A bracket
<a class=\"pagebuilder-button-primary\" href=\"https://www.dropbox.com/s/y428oslq62a6ifk/Shakespeare%20LDDB%20-%20GSM%20%26%20GPRS%20Cellular%20Antenna%20-%200.15m.pdf?dl=0\" target=\"_blank\" style=\"text-align: center; font-weight: normal;\"> <i class=\"fas fa-file-alt\"></i> <span data-element=\"link_text\" style=\"font-weight: 600;\"> Datasheet</span> </a>

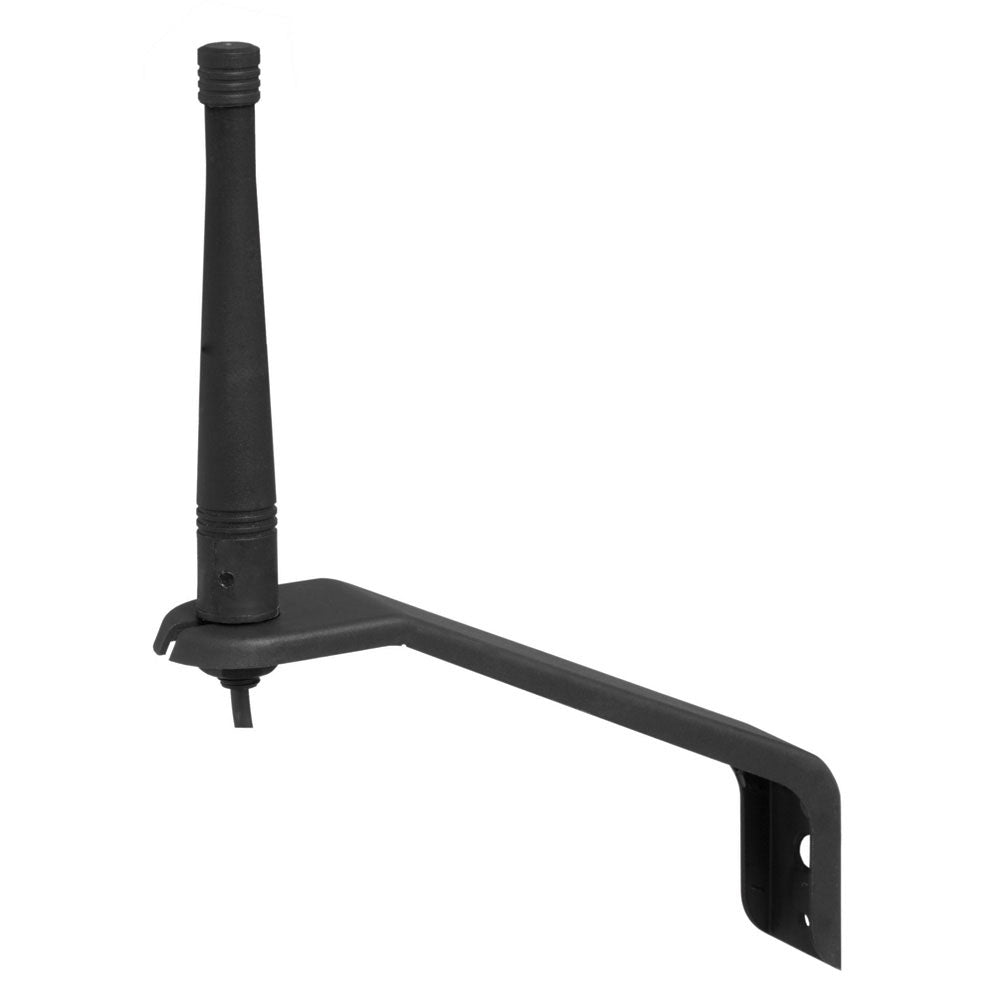

The LDDB antenna is a Triple Band sleeved dipole tuned to cover GSM and GPRS frequencies. The antenna is a full 3dB sleeved dipole on the 860-960MHz band and have excellent responses from 1800—2200MHz.
The antenna has a rugged design that is small enough to be mounted in many positions. It is supplied as standard with a stand off bracket and 3 screws.
