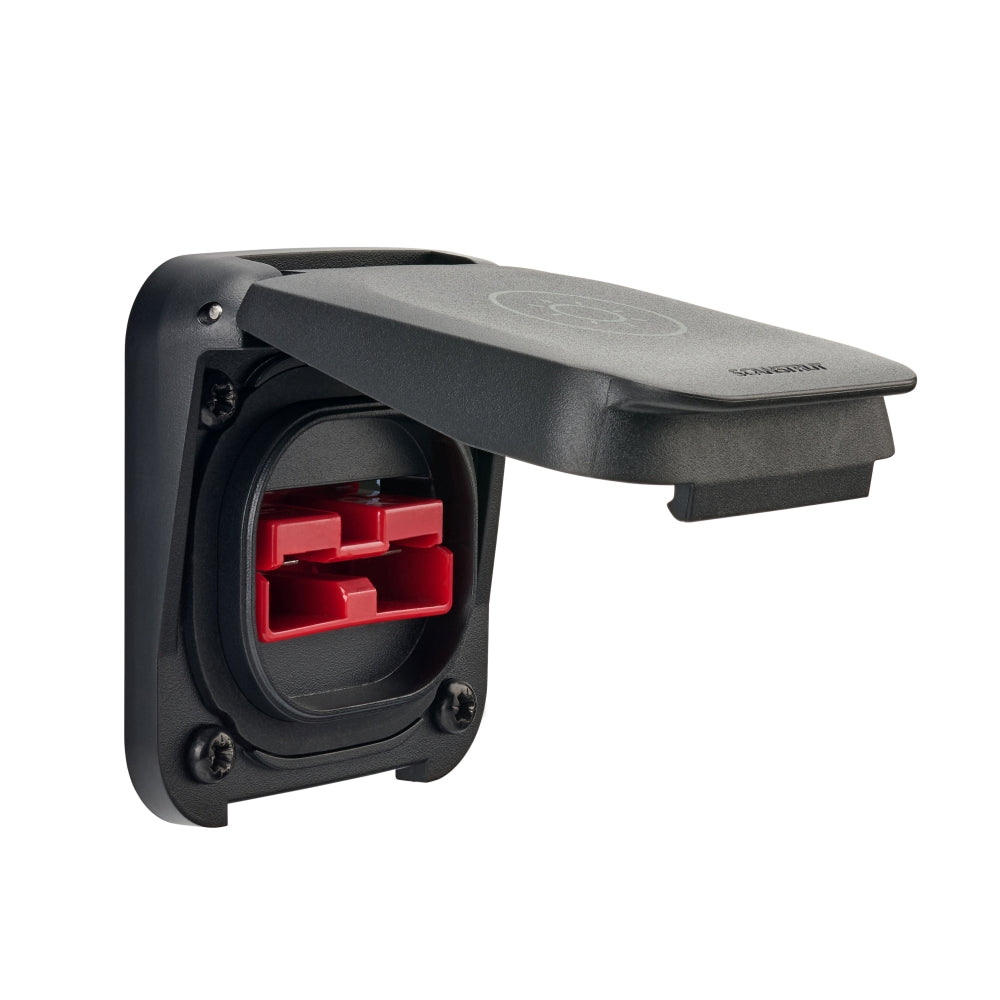

Scanstrut Ventura Series SC-V-S1 - Anderson 50A Solar Connection - Red
Scanstrut Ventura Series SC-V-S1 - Anderson 50A Solar Connection - Red
SKU:715-SC-V-S1
Couldn't load pickup availability
Whether running solar into a camper's power system, charging lithium batteries in an overland rig, or connecting high-draw gear at basecamp, this Anderson 50A connection keeps the power flowing, no fuss, no compromise.
- IP68 IP69K Waterproof (with lid closed)
- Built-in gaskets for a watertight seal
- Spring-Loaded Lid
- Marine-Grade 316 Stainless Steel Components
- 90° Holding Bump-Feature
- UV Resistant
- Easy install
Whether running solar into a camper's power system charging lithium batteries in an overland rig or connecting high-draw gear at basecamp this Anderson 50A connection keeps the power flowing no fuss no compromise.
The Ventura Series Anderson 50A Solar Connection is rugged ready-for-anything power port perfect for serious off-grid setups.
Designed for outdoor life this fixed heavy-duty connector won’t work loose. Its robust design and optimal cable sizing ensure a secure fit and reliable performance even at higher voltages.
Crafted with Scanstrut marine-grade innovation it’s built to thrive in tough environments. UV-tested waterproof (IP68 & IP69K) and made with 316 stainless steel components it’s built to last - rain dust heat or snow.
The Ventura Series blends beautiful design with tough practicality. Its compact and uniform look complements the range of exterior sockets like power water and solar keeping your build clean and cohesive. From remote trails to rugged coastlines keep your setup powered and adventure-ready with the Scanstrut Ventura Series Anderson 50A.
Electrical Information
- Connection Type: Anderson SB50 - Red
- Connector Max Current: Rated 50A (6AWG cable)
- Connector Max Voltage: Rated 600V DC
- Max Power Delivery (12V Input): 600W
- Max Power Delivery (24V Input): 1200W
- Max Power Delivery (48V Input): 2400W
- Waterproof Rating: IP68 IP69K Front only when lid closed
- Certification: CE ROHS
Terminal Crimps
SB50 terminal crimps are not included. Genuine crimps are available from Anderson Power.
Sizes available:
- 6AWG/16mm² (Part number - 5900)
- 8AWG/10mm² (Part number - 5952)
- 12-10AWG/4mm²-6mm² (Part number - 5915)
