715-SC-MULTI-F2

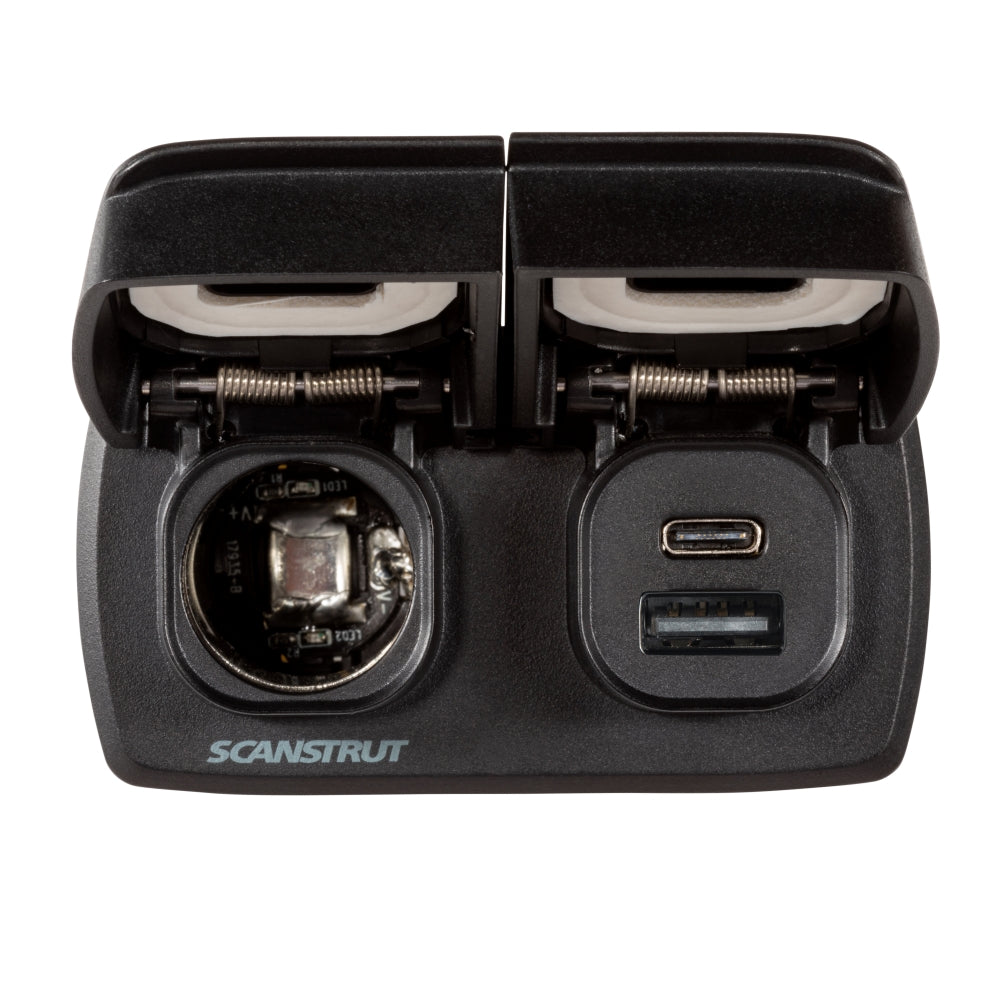

Scanstrut Flip Pro Multi - 12V USB-A & C Socket (Front or Rear Fit)

  • Regular price £75.95


  • 120 -150W max power 12V system only
  • Input voltage: 10-30V DC (12/24V System)
  • Input current Max: 6A (10A fuse recommended)
  • IPX4 waterproof with the cover closed
  • UV resistant
<a class=\"pagebuilder-button-primary\" href=\"https://app.box.com/s/8vl112n8lq8fdbao4jvvdbxhpmapn7un\" target=\"_blank\" style=\"text-align: center; font-weight: normal;\"> <i class=\"fas fa-file-alt\"></i> <span data-element=\"link_text\" style=\"font-weight: 600;\"> Datasheet</span> </a> <a class=\"pagebuilder-button-primary\" href=\"https://app.box.com/s/zid74ku34165xwu1cu6hamexvhcg07o9\" target=\"_blank\" style=\"text-align: center; font-weight: normal;\"> <i class=\"fas fa-wrench\"></i> <span data-element=\"link_text\" style=\"font-weight: 600;\"> Installation</span> </a>

Combing the features of Scanstrut\'s high-power Flip Pro USB-A / C charger and 12V Power Sockets into a beautiful multi power solution. When not in use the spring-loaded caps remain tightly closed protecting the ports from the elements. Featuring a super-compact footprint Flip Pro Duo is constructed from premium marine-grade materials and is IPX4 waterproof making it completely washdown-ready.

Universal

  • Universal fit for any USB-A & C connectors
  • Fast charge (60W max) up to 2 devices at a time

Marine Ready

  • IPX4 waterproof with the cover closed
  • UV resistant
  • 316 stainless hinge and spring

Electrical Information

  • 120 -150W max power 12V system only (12V Socket)
  • Input voltage: 10-30V DC (12/24V System)
  • Input current Max: 6A (10A fuse recommended)

Installation

  • Easy Install using a standard Ø32mm (1.25”) hole saw
  • Fits Panels 3-25mm (0.11\"-1\") thick.
  • Suitable for front or rear mounting
