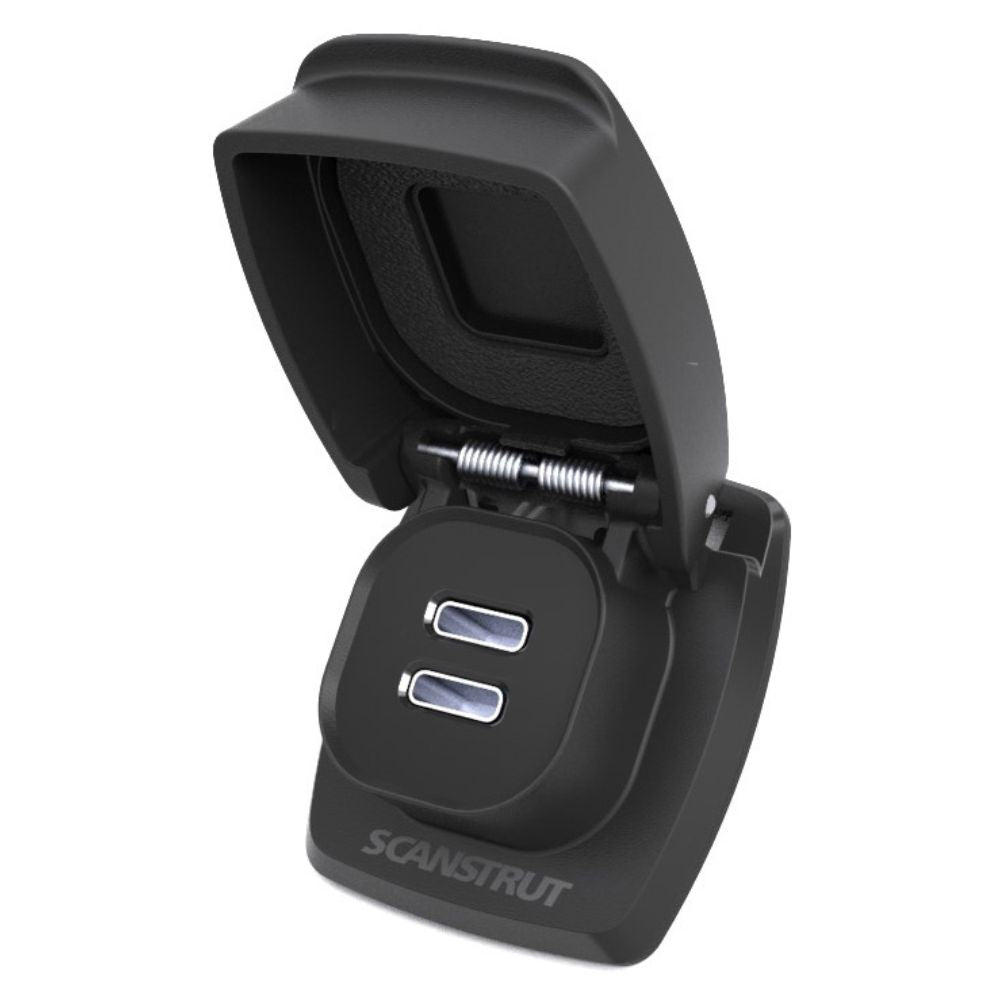

715-SC-USB-F3
- IP rating: IPX4 waterproof when lid is closed
- Input voltage 10-30V DC (12/24V System)
- Input current Max: 6A (10A fuse recommended)
- Standby power draw: 0.01W
- USB – C output: 60W max on 24V system 36W max on 12V system
<a class=\"pagebuilder-button-primary\" href=\"https://app.box.com/s/zgqpg8o2tx7vizq5v1kv85rmmwnnlfoa\" target=\"_blank\" style=\"text-align: center; font-weight: normal;\"> <i class=\"fas fa-file-alt\"></i> <span data-element=\"link_text\" style=\"font-weight: 600;\"> Datasheet</span> </a> <a class=\"pagebuilder-button-primary\" href=\"https://app.box.com/s/as0nc4bhkxub06zal68muwm0nwzy72xd\" target=\"_blank\" style=\"text-align: center; font-weight: normal;\"> <i class=\"fas fa-wrench\"></i> <span data-element=\"link_text\" style=\"font-weight: 600;\"> Installation</span> </a>
Designed for use with either a 12V or 24V input and features 2x 60W USB-C charging ports. It will charge at 36W on a 12V system or up to 60W on a 24V system. This makes it perfect for charging modern laptops and large tablets phones and any other USB-C powered devices onboard. When not in use the spring-loaded cap remains tightly closed protecting the ports from the elements.
Universal
- Universal fit for any USB-C connectors
- Fast charge (60W max) up to 2 devices at a time
Installation
- Easy Install using a Ø32mm (1.25”) hole saw
- Supplied as standard with an optional front fit bezel
Marine Ready
- IPX4 waterproof with the cover closed
- UV resistant
- 316 stainless hinge and spring
Key Information
To maximize charge performance use the cable supplied with your tablet phone etc. (C to C or C-lightning)
Phones charge at the same speed on either a 12 or 24V system but a 24V system must be used to get the full 60W output suitable for laptops.
