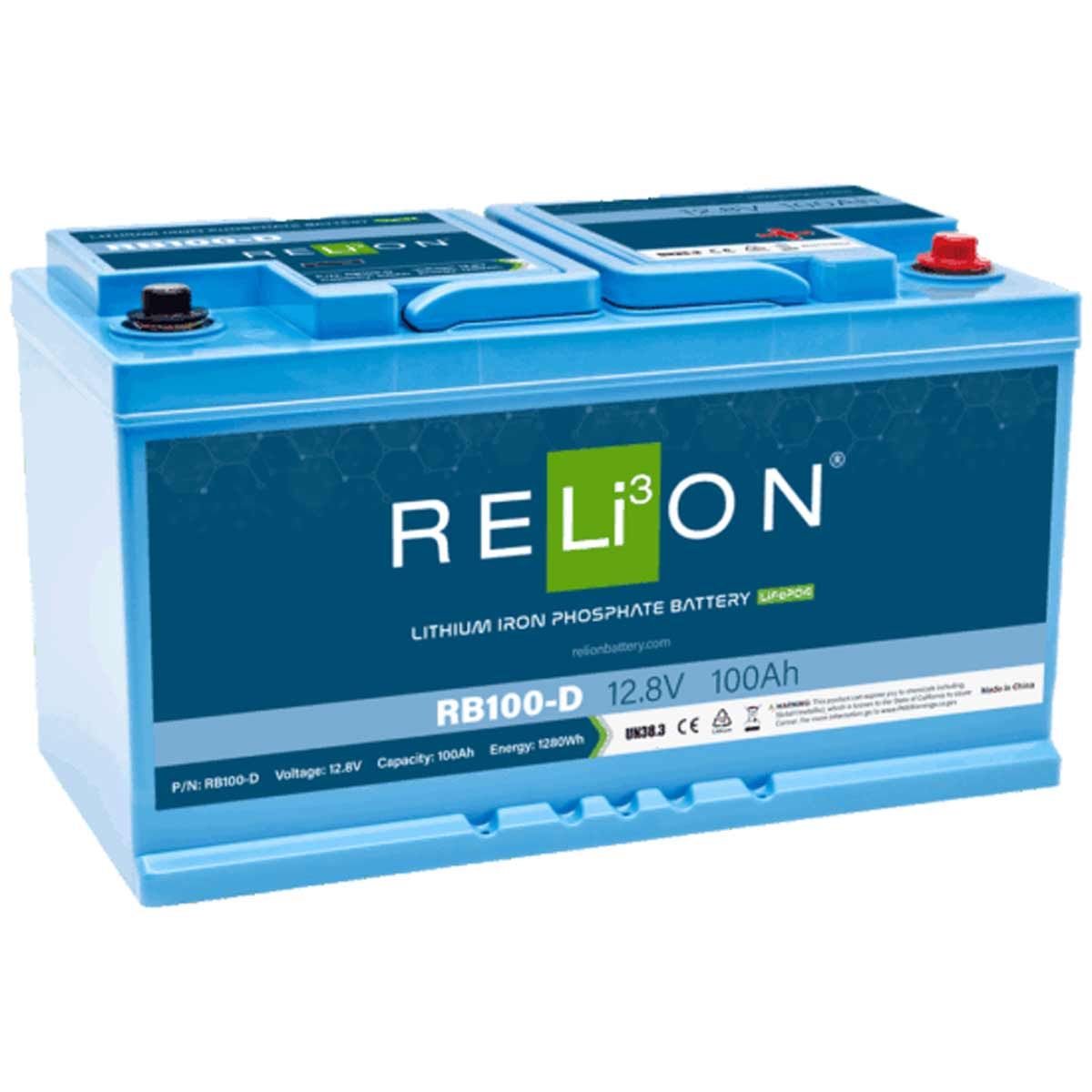

RELiON RB100-D Lifepo4 Lithium Ion Battery (12V / 100Ah / Din 4SC)

RELiON RB100-D 12V 100Ah DIN LiFePO4 Battery

This 12V 100Ah lithium deep cycle battery is a safer, lighter alternative for your application. The RB100-D is a European DIN size battery.

At 30 lbs, this battery is less than half the weight of the lead-acid or AGM equivalent, helping to fight against the drag caused by heavier options. It maintains consistent power and is equipped with handles for carrying, an M8 terminal type and a built-in battery management system (BMS).

All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.

Applications: Marine, Recreational Vehicles, Solar, AWP, Electric Vehicles & Floor Machines

Electrical Specifications
Capacity @ 25A: 240 min
Resistance: ?30 m? @ 50% SOC
Efficiency: 99%
Self Discharge: <3% per Month
Maximum Modules in Series: 4

Mechanical Specifications
Cell Type: Cylindrical
Chemistry: LiFePO4

Discharge Specifications
Maximum Continuous Discharge Current: 100 A
Peak Discharge Current: 200 A (7.5 s ±2.5 s)
BMS Discharge Current Cut-Off: 280 A ±50 A (9 ±4 ms)
Recommended Low Voltage Disconnect: 11 V
BMS Discharge Voltage Cut-Off: 8 V (2.0 ±0.08 vpc) (140 ±60 ms)
Reconnect Voltage: 9.2 V (2.3 ±0.1 vpc)
Short Circuit Protection: 200-600 µs

Charge Specifications
Recommended Charge Current: 5 A - 50 A
Maximum Charge Current: 100 A
Charge Current 32°F to 14°F (0 to -10°C): ?0.1 C
Charge Current 14°F to -4°F (-10 to -20°C): ?0.05 C
Recommended Charge Voltage: 14.2 V - 14.6 V
BMS Charge Voltage Cut-Off: 15.6 V (3.9 ±0.025 vpc) (1.1 ±0.4 s)
Reconnect Voltage: 15.2 V (3.8 ±0.05 vpc)
Balancing Voltage: 14.4 V (3.6 ±0.025 vpc)

Temperature Specifications
Discharge Temperature: -4 to 140 °F (-20 to 60 °C)
Charge Temperature: -4 to 113 °F (-20 to 45 °C) *Refer to charge currents below 32°F (0°C)
Storage Temperature: 23 to 95 °F (-5 to 35 °C)
BMS High Temperature Cut-Off: 176 °F (80 °C)
Reconnect Temperature: 122 °F (50 °C)
