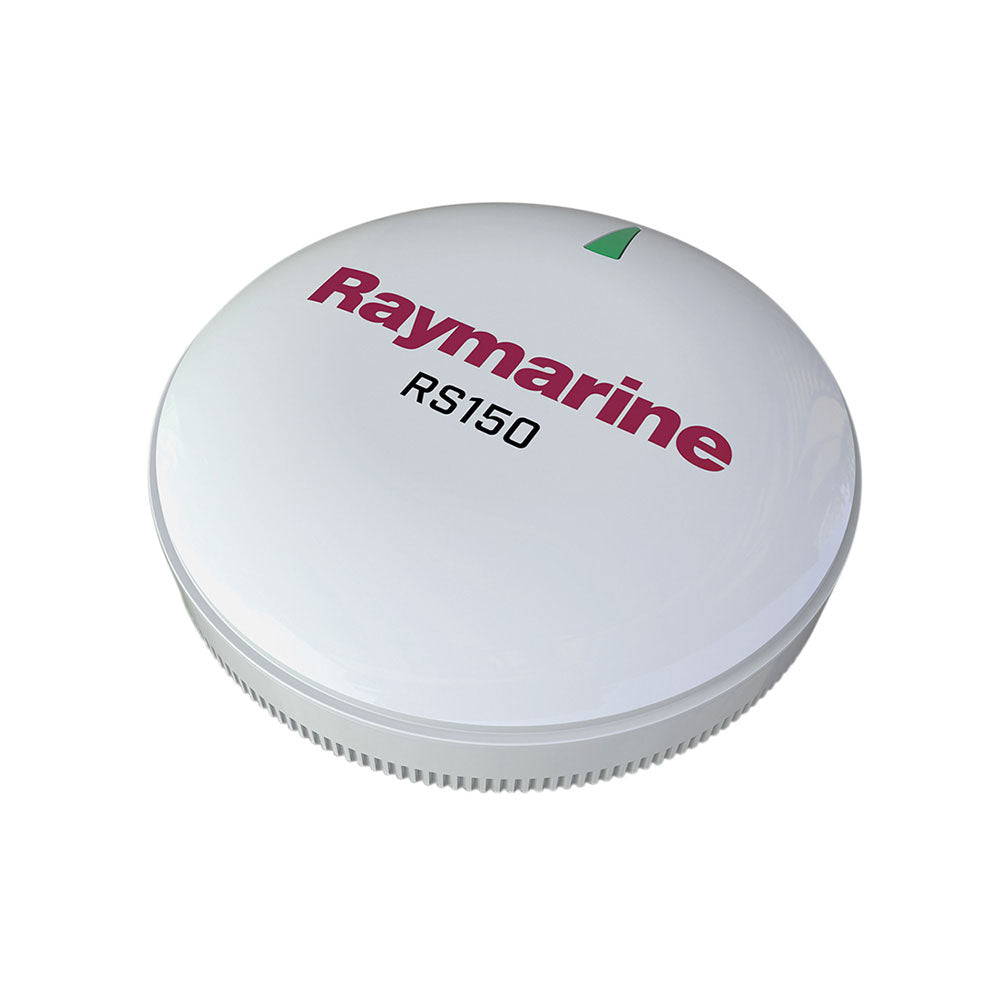

Raymarine Raystar 150 GPS/Glonass Antenna and Pole Mount
Features
- 72-channel GPS receiver
- Fast 10Hz position updates
- Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS EGNOS MSAS and GAGAN support
- A GNSS receiver with GLONASS compatibility
- Low power consumption: 30mA (1 LEN)
- SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
- Designed for low profile surface mounting or optional pole mounting
Specifications
- Nominal supply voltage 12V D.C. Powered by N2K bus
- Operating voltage range 8 - 32V DC
- Power consumption 30 mA max (NMEA LEN = 1)
- Operating temperature -13ºF to 131ºF (-25ºC to +55ºC)
- Relative humidity max 93%
- Waterproof IPx6/7
- Supported connection protocols SeaTalkng: NMEA 2000 (certified) (via DeviceNet adaptor)
- Sensitivity High sensitivity - acquisition down to -163dBm
- No. of channels 72
- Positioning System GPS & GLONASS
- Satellite Differential Type WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
- Differential acquisition Automatic
- Position accuracy (95%) <15m
- Position accuracy with SDGPS (95%) <5m
- Speed accuracy (95%) <0.3kt
- Time to first fix from cold start <2 minutes (< 45 seconds typical)
- Time to first fix from hot start < 8 seconds -72 hour hold up battery allows for hot start
- Geodetic Datum WGS84
- Mounting Surface/rail/pole
The RS150 GPS is a high performance 72-channel remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.
The RS150 is supplied from SMG with additional antenna pole mount included.
