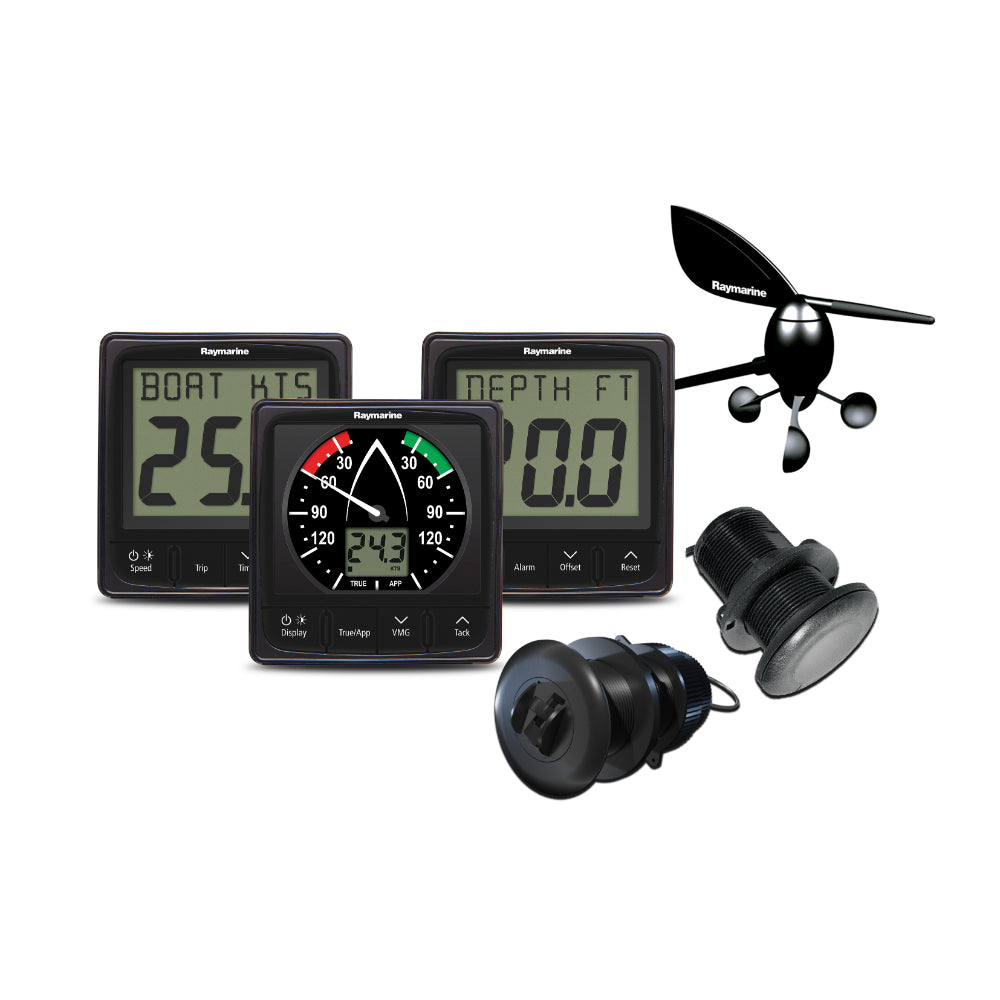

Raymarine i50 i60 Wind Speed & Depth 3 Instrument & Transducer Pack

• Large analogue dial/numerals and digits
• Red backlighting for improved visibility
• SeaTalk & SeaTalkng interfaces
• NMEA 2000 (compatible) interface
• Built-in transducer interface
• 110mm x 115mm footprint identical to older Raymarine ST60+ instrumentation
• Large controls for ease of use at sea
• Low power consumption for increased battery life
• Multiple data source support eliminates potential data conflicts
• Front mounted design for simple installation

The i50 range consists of 3 digital displays. i50 Speed and Depth displays feature extra-large digits and the multi-line i50 Tridata provides speed and depth with a three-line display. These stylish dedicated-function instruments are perfect for sailing yachts powerboats and RIBs.

The i60 is primarily designed for the sailboater. The i60 Wind instrument offers precision wind data and the i60 Close-hauled wind repeater offers an expanded 20º to 60º indicator. Excellent viewing angles and simple push-button controls make the i60 easy to see and use.

i50 Speed - The i50 Speed instrument display is designed for easy viewing of the boat’s speed through the water or speed over ground. The i50 Speed instrument can also display trip and log data as well as water temperature. Ideal for use on RIBs powerboats and small yachts the compact yet surprisingly powerful SeaTalk i40 Depth instrument display can be easily seen even when the lighting conditions are low thanks to its oversized digits and extra-sharp LCDs.

i50 Depth - The i50 Depth instrument display reveals real-time water depth along with audible and visible alerts for shallow water. It also tracks maximum and minimum depth as well as the depth trend. With large digits and audible alarms for deep anchor and shallow water this display works perfectly for sail boats power boats yachts and RIBs. The i50 Depth instrument is engineered for easy viewing. Its high-contrast LCD oversized digits and red backlighting combine to deliver superior visibility under all conditions. i50 instruments also support local and group dimming control. This makes it easy to adjust the brightness of multiple Raymarine products all at once. Simple push button controls provide easy access to all its data displays. I50 series instruments are the perfect combination of powerful performance easy operation and rugged reliability.

i60 Wind - The i60 Wind instrument display calculates both true and apparent wind speed and angle. Wind angle is presented on an easy-to-understand analog needle gauge while wind speed is reported on its high-contrast LCD readout. The i60 Wind instrument provides critical information for sailing vessels and is also right at home onboard well-equipped cruising and fishing powerboats.

The i60 Wind instrument is engineered for easy viewing by day or night. Its high-contrast LCD and red backlighting combine to deliver superior visibility under all conditions. i60 instruments also support local and group dimming control. This makes it easy to adjust the brightness of multiple Raymarine products all at once. Simple push button controls provide easy access to all its data displays. i60 series instruments are the perfect combination of powerful performance easy operation and rugged reliability.

Full Integration With Raymarine Equiptment

All i50 & i60 instruments are designed to fully integrate with Raymarine’s autopilots and other navigation equipment. Each i60 instrument can be configured as a Master display hosting its own transducer or as a Repeater display showing information from another source on the network. i60 instruments are SeaTalkng network-ready and can be easily adapted to connect to NMEA2000 or older SeaTalk networks.
