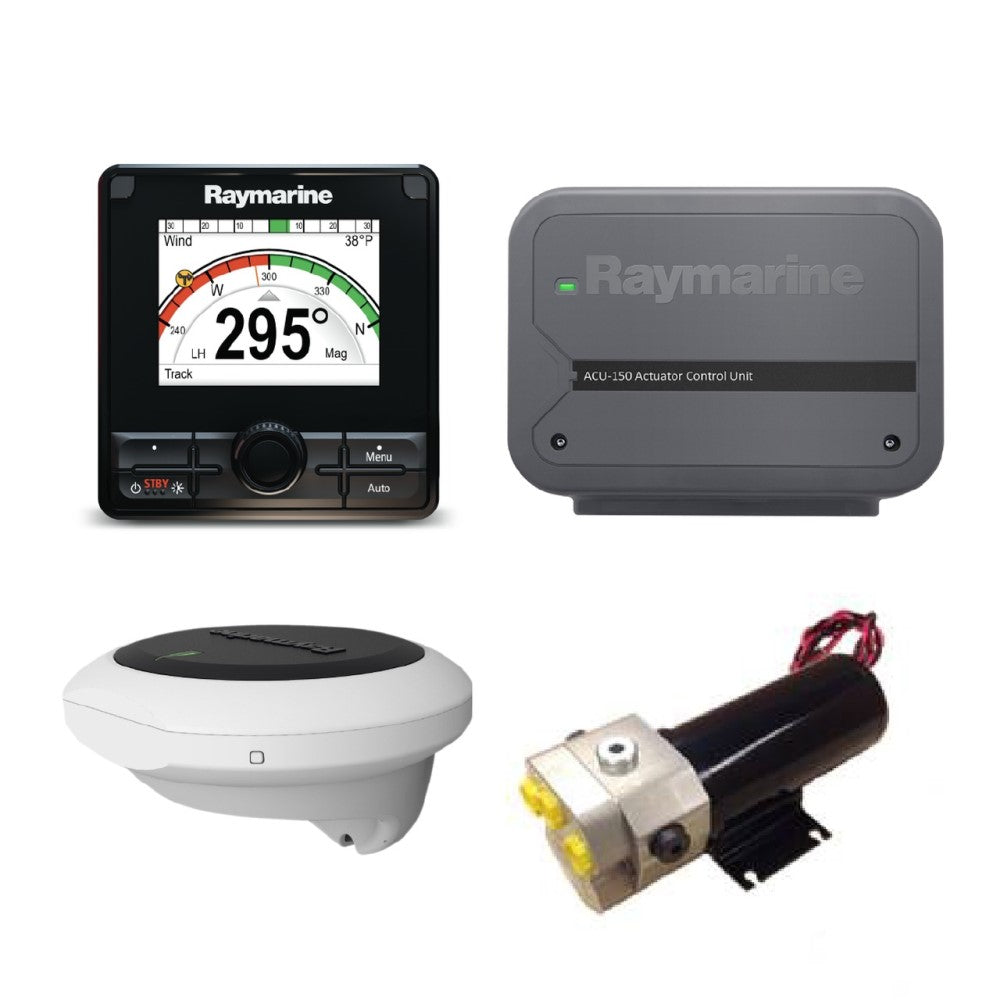

Raymarine Evolution Hydraulic Pilot with P70Rs

• Designed for small power boats.
• Easy to install - EV sensor core can be installed above or below deck Install upside-down or off the vessels centreline.
• 9-axis precision monitoring of pitch roll yaw and heading.
• No lengthy calibration procedures to perform.
• No compass calibration required.
• Plug and play connections.
• Robust - Enclosure is fully sealed and built to IPX6 waterproofing standards.
• Fuel Efficient - Evolution autopilots steer so accurately they will save fuel and get you to your destination faster.
• Flexible Control - Control Evolution from the p70R control head or direct from your Raymarine MFD.

The EV-100 Power autopilot system consists of the revolutionary EV-sensor core the fully-sealed and compact ACU-100 a P70R control interface and Raymarine’s new highly efficient 0.5 litre hydraulic pump. Perfect for vessels with single outboard engines and hydraulic steering install the entire system above or below decks as required and benefit from world-leading autopilot performance at a truly head-turning price.

EV1 Sensor Core: At the centre of every Evolution system is the intelligent EV sensor core a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

ACU-100: With the ACU-100 Raymarine brings the exceptional performance of Evolution Autopilots to sport boats runabouts and smaller cruising yachts. Specifically designed to complement Raymarine’s unique wheel-drive and tiller-drive applications the ACU-100 provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor.

P70Rs autopilot control head:The Raymarine p70Rs autopilot control head with its combination of push-buttons and rotary control dial is aimed at powered craft. Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions. The P70Rs control head also features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.

Hydraulic Pump: The 0.5ltr Hydraulic Pump is intended to operate the boat’s steering mechanism as part of a Raymarine autopilot system. It is primarily designed for use on boats with an existing hydraulic steering system. Alternatively you can use this pump on a boat with mechanical steering in conjunction with a secondary steering ram.

In The Box

• Evolution EV1 Sensor Core
• ACU-100
• P70Rs Colour A/P Head (Power)
• 0.5L / 12V Hydraulic Pumpset
• Evolution Cabling Kit
