Raymarine Evolution EV-400 Autopilot Pack (Sail)

• Heavy-duty 30 Amp output for Type 3 Drives or ZF Sail Pod Drive Systems
• Evolution Ai for superior performance
• No calibration required
• SeaTalkNG Network Compatible
• ACU-400 auxiliary power to SeaTalkNG network

The EV-400 Sail Autopilot is for sail boats fitted with a type two and three drive unit drawing less than 30 Amps. The Evolution autopilot systems perceive their environment and instantly calculate and evolve steering commands to maximize performance. The result is precise and confident course keeping regardless of vessel speed or sea conditions - Evolution autopilots steer so accurately they can save fuel and get you to your destination faster.

EV1 Sensor Core: At the centre of every Evolution system is the intelligent EV sensor core a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

ACU-400: The ACU-400 Autopilot control unit suitable for Type 2 hydraulic linear and rotary mechanical drives. Max continuous current 30 amps. Has clutch output and can supply SeaTalk ng with 12 volt power. Supplied with rudder reference sensor.

P70s autopilot control head: is a push-button operation controller designed primarily for sailboats. Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions. The p70 / p70s control head also features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.

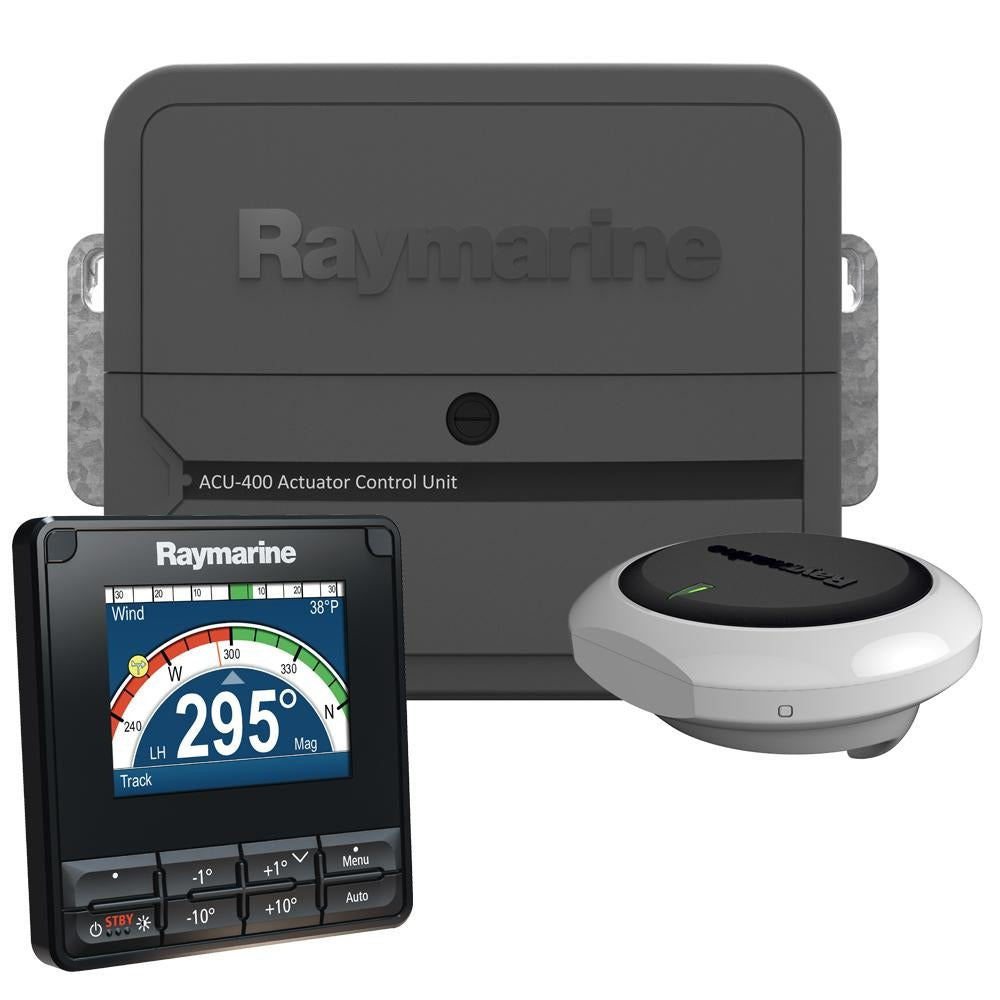

In The Box

• Evolution EV1 Sensor Core
• ACU-400
• P70s Colour A/P Head (Sail)
• Evolution Cabling Kit
