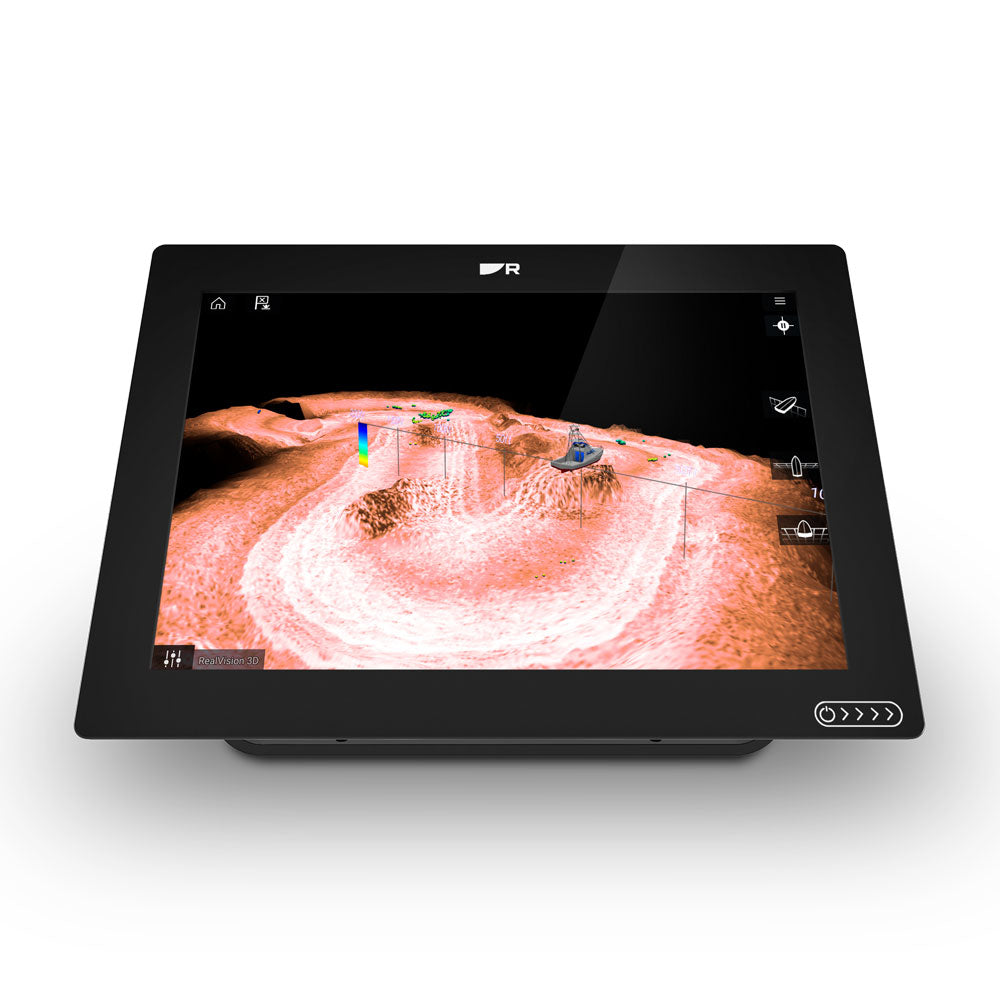

Raymarine AXIOM+ 12RV - Display Only

• Display Size: 12.0 inch High Density IPS
• Display Resolution: 1280 x 800 (WXGA)
• Display Type: Multitouch with HydroTough™ rugged hydrophobic coating
• Brightness: 1 800 nits
• Viewing Angle: 88° Top Bottom Left Right
• Dimensions W x H x D: 314 x 217 x 77mm 12.36 x 8.54 x 3.0in
• Weight: 6.5 lbs
• Mounting Options: Surface Flush Trunnion (Front installation bracket available)
• Waterproof Rating: IPX7
• Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
• Storage Temperature Range: -30°C to +70°C (-22°F to +158°F)
• Voltage: 12V DC (8V to 16V DC)
• Power Consumption:15.48 Watts. RV Sonar version 19.96 Watts

Axiom+ A New Generation of High-Performance Multifunction Navigation Displays

The performance-tuned Axiom+ is a new generation of award-winning Raymarine multifunction displays. Optimised for speed Axiom+ is equipped with a powerful quad-core processor for industry-leading responsiveness and speed giving you the power to seamlessly redraw charts navigate with augmented reality and experience RealVision 3D sonar.

New higher resolution IPS displays deliver 25 percent more brightness and new day/night colour palettes offer enhanced visibility in any lighting condition. Axiom+ features the renowned LightHouse OS the most powerful and easy-to-use Raymarine MFD operating system to date.

• Performance Tuned - Designed for speed performance and future expansion.
• Fast & Fluid - Fluid and fast chart redraw of LightHouse Navionics and C-MAP electronic charts.
• Quad-Core Power - Powerful quad-core processor plus increased onboard storage for personal data and apps.
• Lighthouse OS - Smart and intuitive LightHouse OS makes navigating easy.
• Augmented Reality - Clearcruise Augmented Reality-capable for smarter navigation decisions.
• Hydrotough Display - Nano-coated impact-resistant glass screen repels water oil and smudges for better viewing and accurate touch controls.
• Brighter - 12 inch all-weather displays are up to 25 percent brighter (up to 1 800 nits).
• Sharper - IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.

Chartplotter
Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital Blue Latitude and more.

Real Vision 3D Sonar
Real Vision model includes built-in RealVision 3D Sonar technology. RealVision 3D transducers combine CHIRP DownVision™ CHIRP SideVision™ High Frequency CHIRP and RealVision 3D into a single transducer housing. Additionally Raymarine’s gyro-stabilized sonar technology compensates for boat movement delivering life-like 3D sonar imagery.
