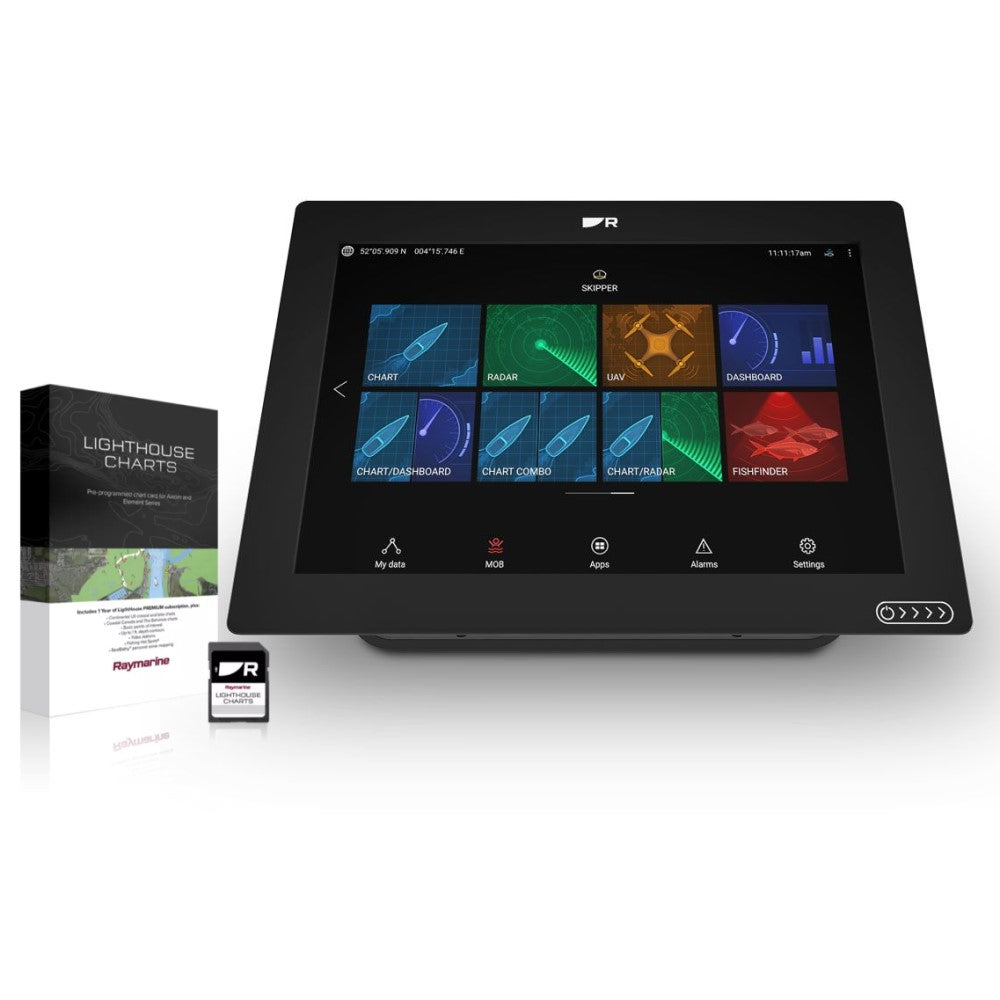

Axiom+ A New Generation of High-Performance Multifunction Navigation Displays

The performance-tuned Axiom+ is a new generation of award-winning Raymarine multifunction displays. Optimised for speed Axiom+ is equipped with a powerful quad-core processor for industry-leading responsiveness and speed giving the power to seamlessly redraw charts navigate with augmented reality and experience RealVision 3D sonar.

New higher resolution IPS displays deliver 25 percent more brightness and new day/night colour palettes offer enhanced visibility in any lighting condition. Axiom+ features the renowned LightHouse OS the most powerful and easy-to-use Raymarine MFD operating system to date.

Performance Tuned - Designed for speed performance and future expansion.

Fast & Fluid - Fluid and fast chart redraw of LightHouse Navionics and C-MAP electronic charts.

Quad-Core Power - Powerful quad-core processor plus increased onboard storage for personal data and apps.

Lightghouse 3 OS - Smart and intuitive LightHouse OS makes navigating easy.

Augmented Reality - Clearcruise Augmented Reality-capable for smarter navigation decisions.

Hydrotough Display - Nano-coated impact-resistant glass screen repels water oil and smudges for better viewing and accurate touch controls.

Brighter - 12 inch all-weather displays are up to 25 percent brighter (up to 1 800 nits).

Sharper - IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.

Chartplotter (No built in Sonar Capabilities) - Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital Blue Latitude and more.

Raymarine LightHouse Chart - Includes Western Europe Lighthouse Chart: coverage area includes Ireland Great Britain Portugal Spain France Germany and Denmark.

In The Box

• MFD (Chartplotter)
• Western Europe Lighthouse Chart
• Trunnion bracket
• Trunnion knobs x 2
• Suncover
• Documentation
• Panel mount gasket
• Rear mounting brackets
• Threaded studs (M5x58) x 4
• Thumb nuts (M5) x 4
• Power/NMEA 2000 cable (1.5 m (4.92 ft) power lead 0.5 m (1.64 ft) NMEA 2000 lead)
• DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in)
