R&D Marine 6" Bobbin Shaft Coupling 808006

R&D Marine 6" Bobbin Shaft Coupling 808006

808006

£607.78
£607.95 £607.78
Sale Sold out
Tax included. Shipping calculated at checkout.

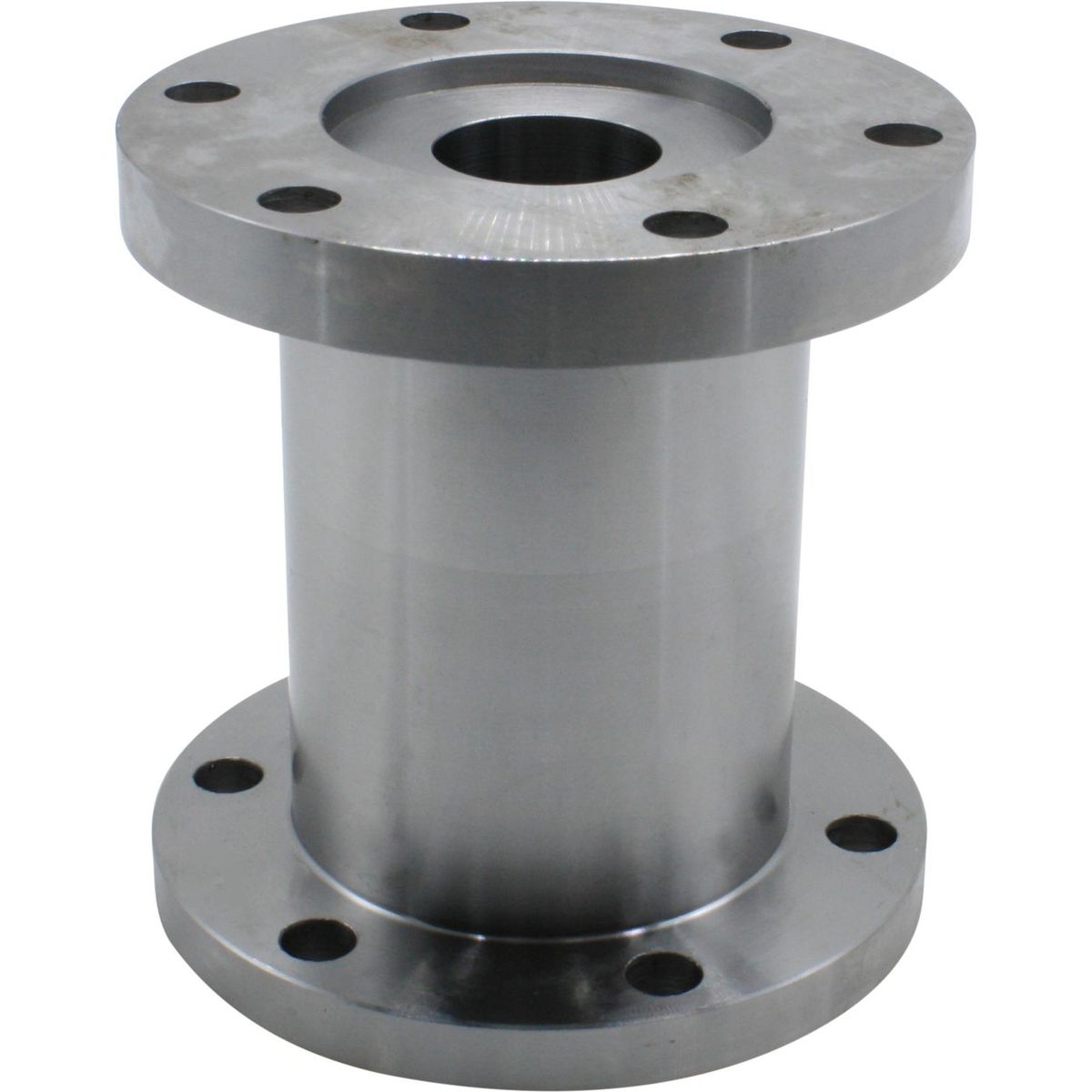

A bobbin coupling is a double flange coupling, which is used to extend the boat propeller shaft. They can also be used for making a double flexible coupling with two R&D type flexible couplings. This can provide excellent noise and vibration control, at a very reasonable price. The 6" R&D bobbin coupling is machine from steel, and the flanges will suit gearbox flanges (5.75") for PRM, Borgwarner Velvet Drive, ZF and Twin Disc gearbox. Bobbin coupling dimensions: a - Flange outside diameter = 5.75" b - Hole pitch circle = 4.75" c - Number of holes = 6 d - Hole size = 0.50" e - Register diameter = 3.00" male on one flange and female on the other f - Bobbin coupling length = 5.86" g - Bobbin neck diameter = 4.25" Bobbin Shaft Coupling Dimensions Diagram R & D Marine Bobbin shaft coupling spacer number 202-250
