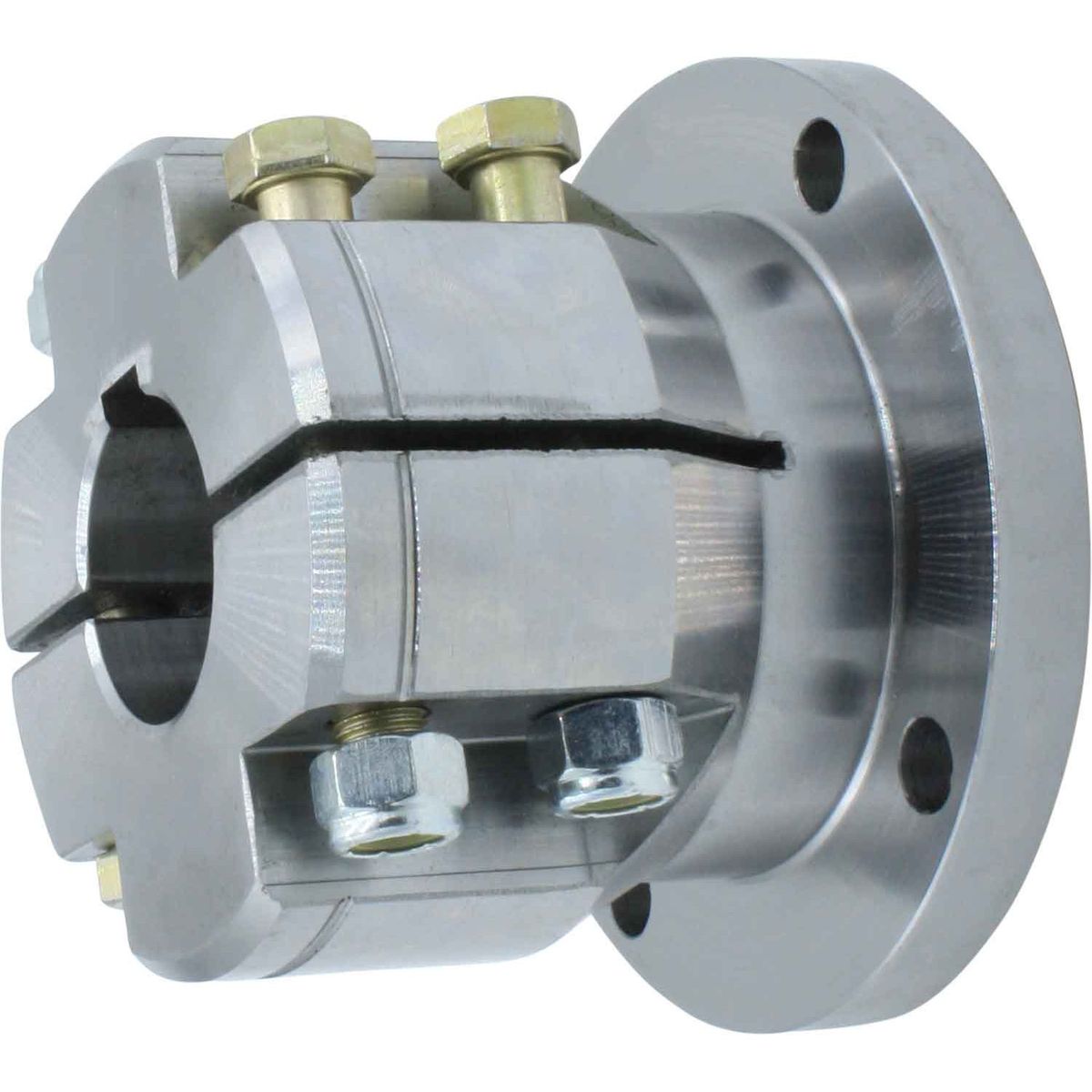

R&D Marine 5" Split Clamp On Coupling for 40mm Shaft 808523

R&D Marine 5" Split Clamp On Coupling for 40mm Shaft 808523

SKU:808523

Regular price £352.64
Regular price £506.95 Sale price £352.64
Sale Sold out
Tax included. Shipping calculated at checkout.
This clamp on split half coupling is machined from solid steel and mates with the gearbox output coupling to connect a 40mm diameter metric boat propeller shaft to the gearbox, usually via a flexible coupling. The clamp on split type propeller shaft coupling is machined to suit the boat propeller shaft diameter but can accommodate the variations that can occur with normal boat propeller shaft tolerances. It is simple to install and can be adjusted to the required position on the shaft. This clamp on shaft coupling is bored with a keyway and is secured to the boat propeller shaft with the clamp bolts supplied. Typical applications include: 5" nominal gearbox flanges of PRM, Borgwarner Velvet Drive, Hurth, Volvo Penta and Technodrive gearboxes. Recommended torque for the clamp bolts: 81Nm (60 lbsft) Coupling dimensions: For propeller shaft diameter 40mm Keyway to BS4235: Part 1 Rectangular a - Flange outside diameter = 5.00" b - Hole pitch circle = 4.25" c - Number of holes = 4 d - Hole size = 0.44" (7/16") e - Register diameter = 2.50" male f - Coupling length = 3.75" g - Coupling clamp boss diameter = 4.06" Split Coupling Dimensions Diagram R & D Marine Clamp on shaft coupling number 202-171H
