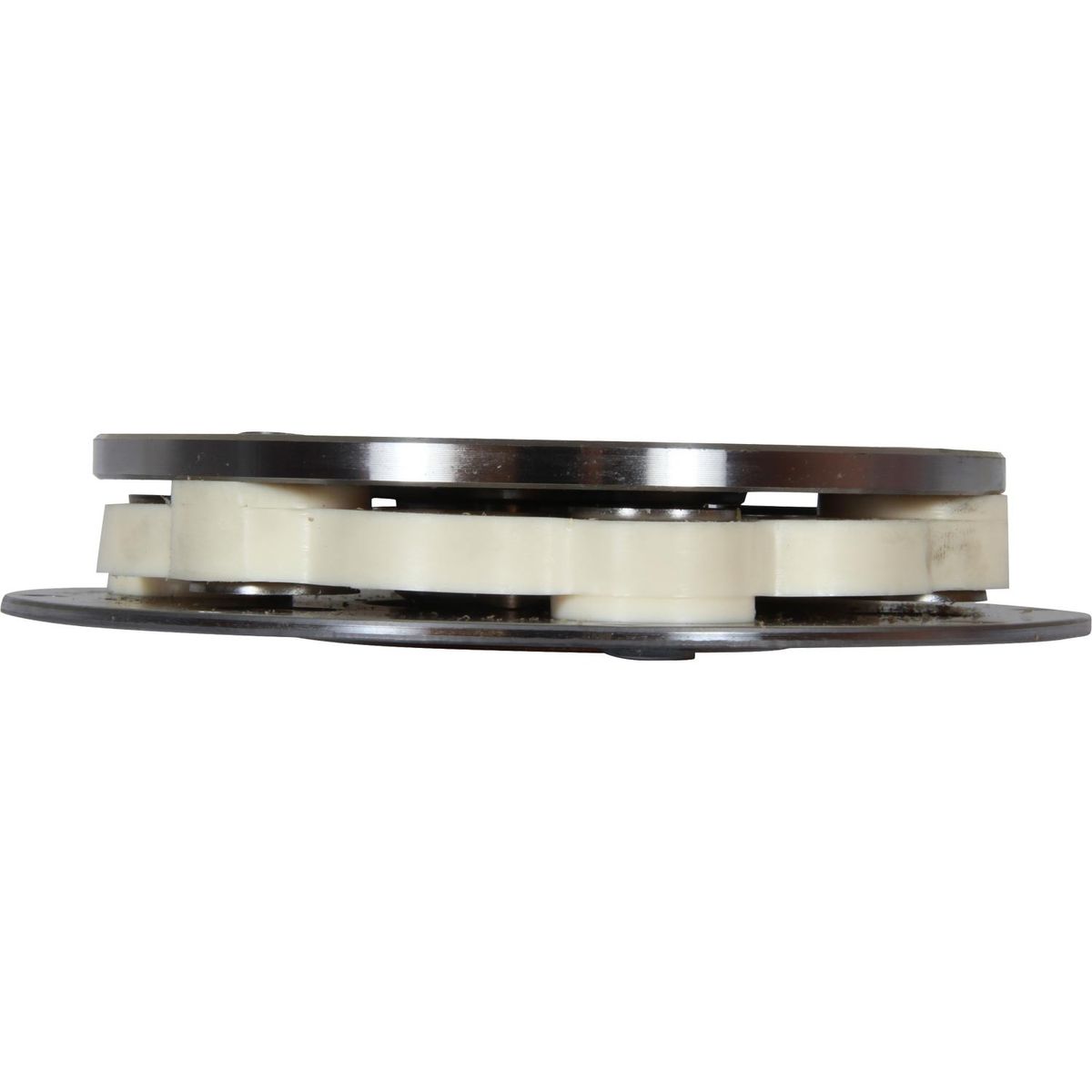

R&D Drive Plate For PRM (10 Teeth Spline / 152mm Diameter)
R&D Drive Plate For PRM (10 Teeth Spline / 152mm Diameter)
SKU:RND-13B16
Couldn't load pickup availability
13B16 Engine / Gearbox Damper Drive Plate by R&D Marine
Fitted between the boat engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D Damper Drive plates include a 'failsafe' design.
Also called the Driven Plate, Damper Plate or Clutch Plate, the 13B16 Damper Drive Plate is from the R and D range. This is a special drive plate, with a turned down back plate. Common applications include Kubota based marine engines such as the Nanni Diesel
R&D 13B16 damper technical details:
- Spline: 10 teeth SAE 1" x 10T (25.4mm diameter) for Newage PRM gearbox models 100, 101, 140, 160 and 260.
- Diameter of drive plate back plate which bolts to the engine flywheel: 151mm turned (5.962" / 5.965")
- Back plate fixing holes: One single set of fixing holes providing 8 x 1/4" holes on 5.512" PCD
- Drive plate maximum thickness: 32mm (1.25")
Fitted with a type B loop element for 135Nm 100 ft lb torque, which can be mounted either round on the flywheel and rotated in either direction. The 13B16 drive plate element will provide linear stiffness up to 3 degrees of deflection and is failsafe.
If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
