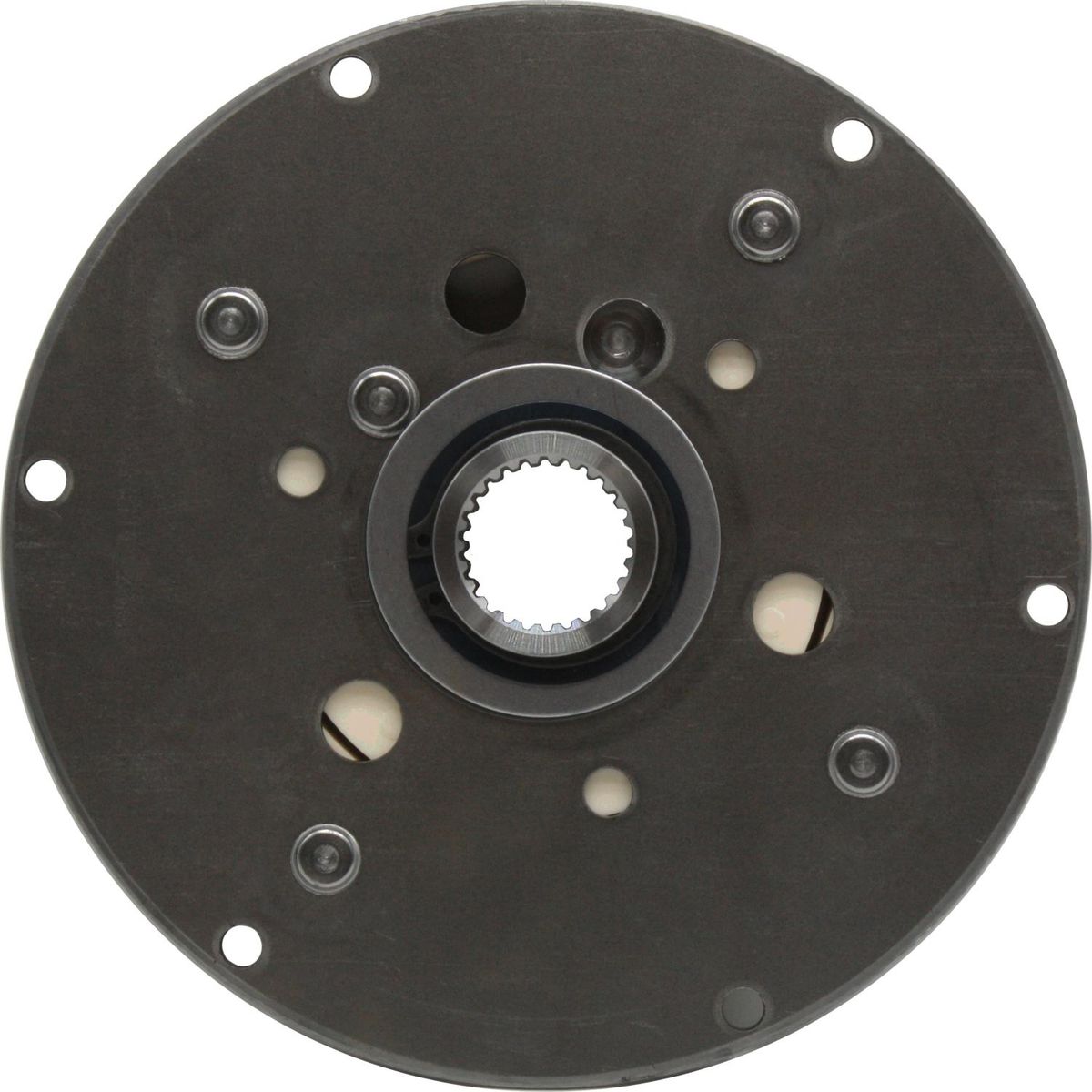

R&D 42AN60 Drive Plate For Borgwarner and PRM (26 Spline / 216mm OD)

R & D Part Number: 42AN60
Common applications for the 42AN60 drive plate include SAE 6.5 flywheels mated to gearboxes with 26 teeth spline, Borgwarner Velvet drive 70, 71, 72, 73 C, PRM inline gearboxes, Paragon P series, Technodrive TM93, TM170, TM26, TM345, TM485, TM545, TM880, TMP1200 & 1500, Twin Disc, Volvo MS, HS1, 270-280 leg, ZF Hurth HSW and IRM220 gearboxes.

This R & D marine damper drive plate is fitted between the engine and the gearbox input shaft, a damper drive plate is designed to transmit the engine power to the gearbox, whilst reducing transmitted gear noise and providing a cushioned drive when selecting gear. All R and D damper drive plates include a 'failsafe' design.

Also called the driven plate, damper plate or clutch plate, the 42AN49 damper drive plate is from the R and D high deflection element range.

R & D damper drive plate technical details:
- Spline: 26 teeth 20/40 DP (35.4mm diameter) for Borgwarner, PRM, ZF, Hurth, Technodrive, TMP gearboxes.
- Diameter of back plate which bolts to the engine flywheel: 215.9mm (8.500")
- Back plate fixing holes: 6 x 8.1mm on 200mm PCD SAE6 1/2
- Maximum thickness of drive plate: 35mm (1.38")
- Fitted with the softer type AN high deflection element for 270Nm 200 ft lb torque, providing a maximum deflection up to 30 degrees.
- This type of plate is especially suited to workboats with slow speed applications and pleasure boats.

Please Note: this type of damper drive plate can only be fitted to rotate in the standard direction of rotation (anti-clockwise when looking at the flywheel) with the element facing the gearbox. These damper plates are also failsafe.

If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
