R&D 22B16 Drive Plate For Hurth & PRM (10 Teeth Spline / 151mm OD)
R&D 22B16 Drive Plate For Hurth & PRM (10 Teeth Spline / 151mm OD)
SKU:RND-22B16
Couldn't load pickup availability

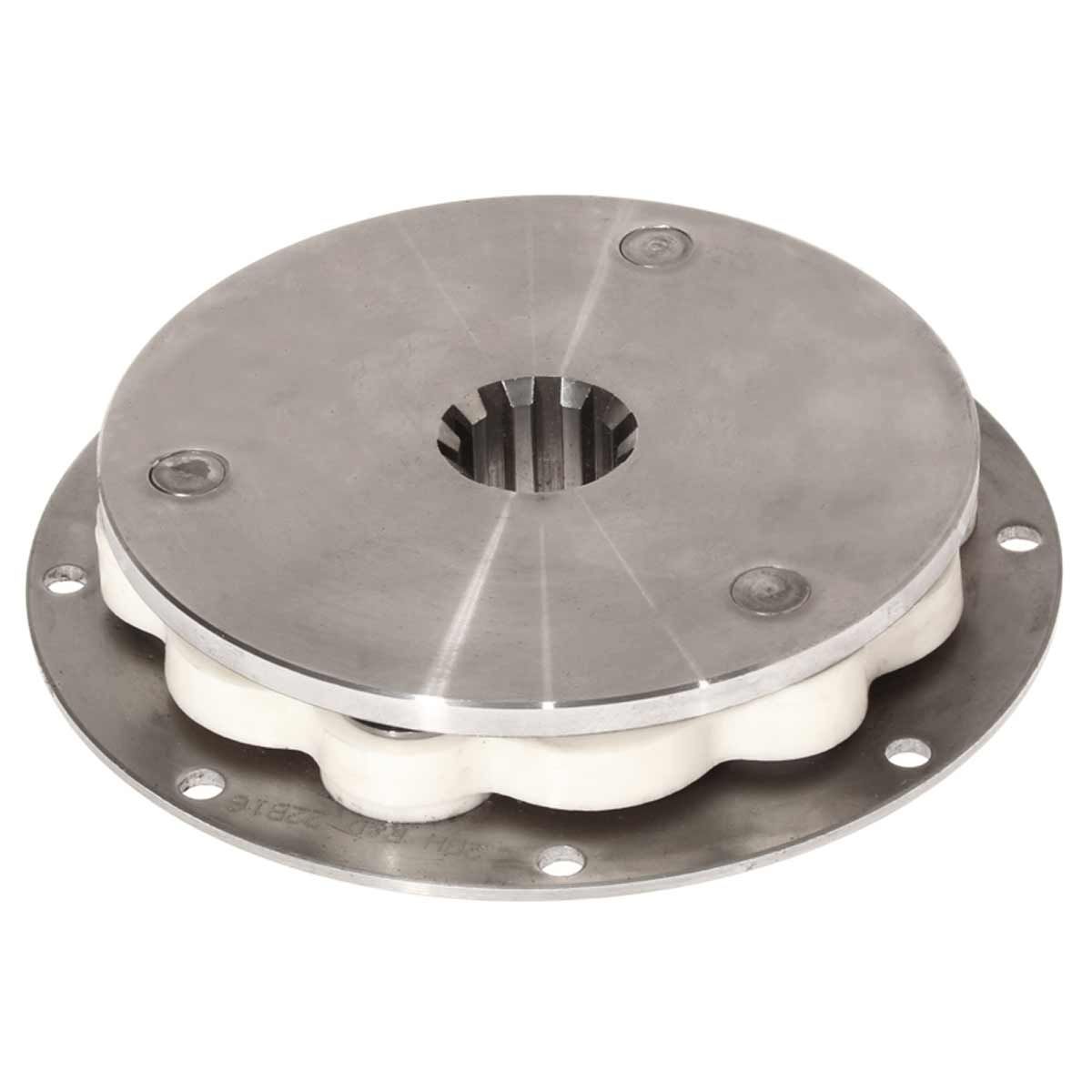

R&D 22B16 loop type drive plate for Hurth HBW and PRM 150 Gearboxes.
The damper drive plate fits between the flywheel to the gearbox to drive the gearbox shaft. Also known as the drive plate, clutch plate, spring plate or gearbox plate. Typical applications for the 22B16 damper drive plate include Hurth HBW gearboxes such as HBW35, HBW50, HBW100 & HBW150, ZF gearboxes such as the ZF10 & ZF12. It also fits the PRM gearbox spline of the PRM80, PRM120 & PRM150 gearboxes, Borgwarner 500 gearbox and TMC 30, 40, 50 & 60 gearboxes.
22B16 Drive plate technical details:
- Overall diameter of drive plate back plate: 151mm (5.94")
- 10 teeth spline B10 x 23 x 29 DIN5464 (29.0mm diameter)
- Bolt hole details: 8 x 6.00mm (0.24") holes on 140.0mm (5.51") PCD
If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
