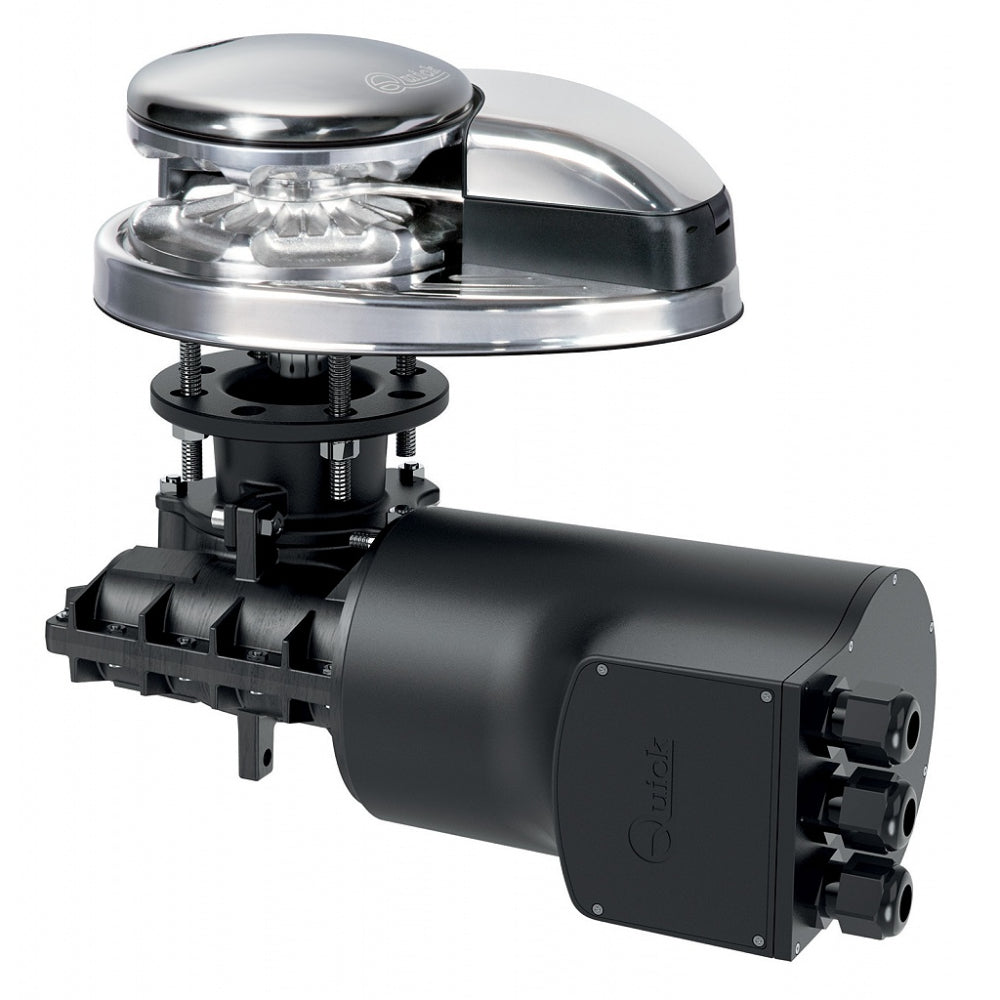

Quick Prince DP3 P 1012 Windlass - 10mm (3/8") 1000W 12V No Drum
Quick Prince DP3 P 1012 Windlass - 10mm (3/8") 1000W 12V No Drum
SKU:690-FSDP31012010B00
Couldn't load pickup availability
- Vertical windlasses
- Stainless steel Aisi 316 base and anodized aluminium in hard oxide
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- Motor watertight to IP67
- Anodized aluminium gearbox (1500W) / Technopolymer gearbox (700W/1000W)
The Prince DP3 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for rope and chain retrieval. Additional features include an IP67 watertight motor anodized aluminum gearbox and inspection lid. This unit is sold complete with the windlass solenoid unit clutch handle and mounting hardware.
Gypsy Options
| Gypsy | 8mm (5/16") | 10mm (3/8") | ||||
|---|---|---|---|---|---|---|
| Chain | 8mm DIN 766 | 8mm ISO | 5/16" G4 | 5/16" BBB | 10mm ISO | 3/8" G4 |
| Rope | 12.7mm (1/2") - 14.2mm (9/16") - 15.8mm (5/8") | 15.8mm (5/8") | ||||
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick" system.
Specifications
| Standard Version | Prince DP3 P 700/700D | Prince DP3 P 1000/1000D | Prince DP3 1500/1500D | |||
|---|---|---|---|---|---|---|
| Motor Power | 700W | 1000W | 1500W | |||
| Motor Supply Voltage | 12V | 24V | 12V | 24V | 12V | 24V |
| Maximum Pull | 850Kg 1874 lb | 850Kg 1874 lb | 1000Kg 2204 lb | 1000Kg 2204 lb | 1100Kg 2425 lb | 1100Kg 2425 lb |
| Maximum working load | 250Kg 551 lb | 300Kg 661 lb | 370Kg 816 lb | 450Kg 992 lb | 470Kg 1036 lb | 540Kg 1190 lb |
| Working load | 80Kg 176 lb | 100Kg 220 lb | 120Kg 264 lb | 150Kg 331 lb | 160Kg 353 lb | 180Kg 397 lb |
| Current absorption @ working load | 90 A | 55 A | 140 A | 80 A | 155 A | 85 A |
| Maximum chain speed | 27.4m/min 89.9 ft/min | 26.4m/min 86.6 ft/min | 39.6m/min 129.2 ft/min | 40.9m/min 134.2 ft/min | 29.2m/min 95.8 ft/min | 29.7m/min 97.4 ft/min |
| Maximum chain speed @ working load | 14.4m/min 47.2 ft/min | 14.8m/min 48.6 ft/min | 20.4m/min 66.9 ft/min | 21.4m/min 70.2 ft/min | 16.3m/min 53.5 ft/min | 19m/min 62.3 ft/min |
| Weight without drum | 16.4Kg 36 lb | 17.4Kg 38 lb | 21.3Kg 47 lb | |||
| Weight with drum | 18.4Kg 40 lb | 19.4Kg 42 lb | 23.2Kg 51.2 lb | |||
