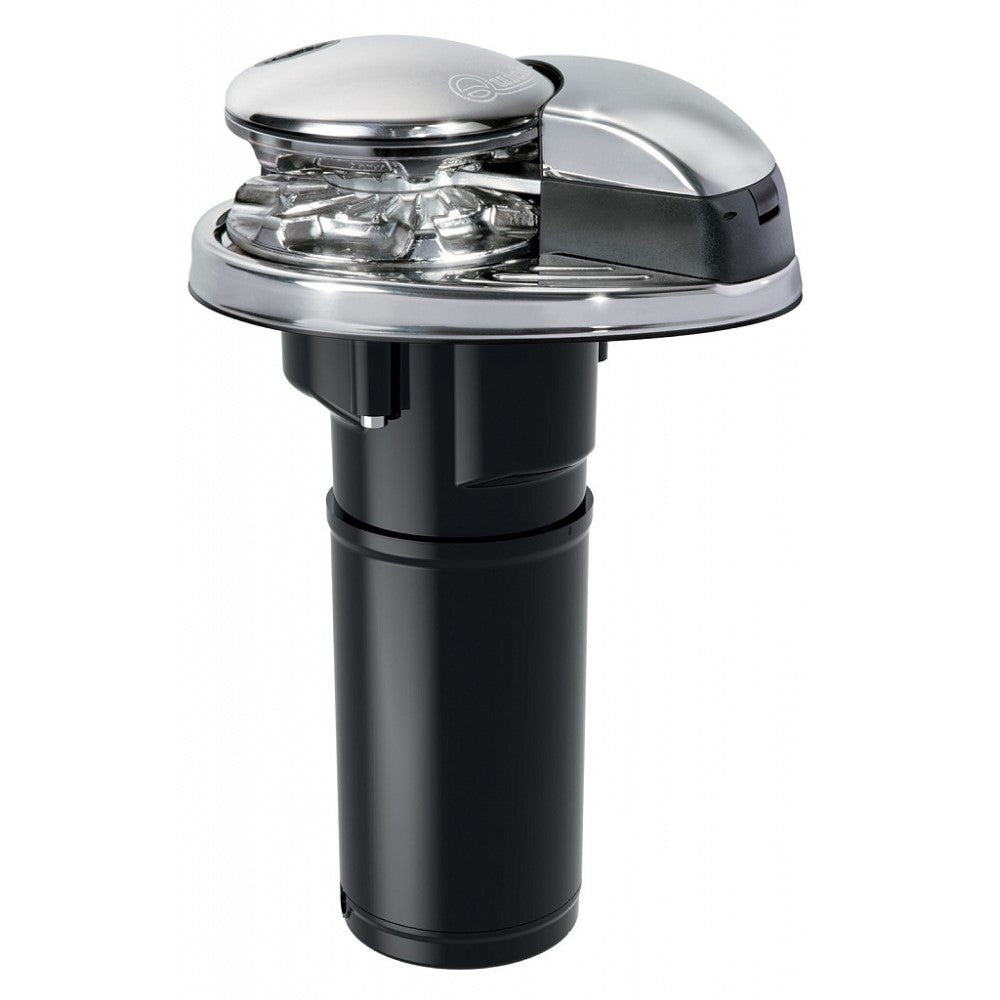

Quick Prince DP2L 770 Windlass - 6mm 350W 12V
Quick Prince DP2L 770 Windlass - 6mm 350W 12V
SKU:690-FSDP2L060006A00
Couldn't load pickup availability
- Vertical windlasses
- Stainless steel Aisi 316 base and BHC.
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- Motor watertight to IP66
- BHC material gearbox
The DP2L is a compact vertical application windlass for smaller boats with limited deck space. Powered by a watertight IP66 350W Motor there are Gypsy options for 6mm or 7mm (1/4") chain.
Gypsy Options
| Gypsy | 6mm | 7mm (1/4") | ||||
|---|---|---|---|---|---|---|
| Chain | 6mm DIN 766 | 6mm ISO | 7mm DIN 766 | 7mm ISO | 1/4" G4 | 1/4" BBB |
| Rope | 12.7mm (1/2") | 12.7mm (1/2") | 12.7mm (1/2") | |||
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick" system.
Specifications
| Standard Version | Prince DP2L 770 |
|---|---|
| Motor Power | 350W |
| Motor Supply Voltage | 12V |
| Maximum Pull | 350Kg 771 lb |
| Maximum working load | 200Kg 441 lb |
| Working load | 80Kg 176 lb |
| Current absorption @ working load | 30 A |
| Maximum chain speed | 17m/min 55 ft/min |
| Maximum chain speed @ working load | 15m/min 49 ft/min |
| Weight | 6.5Kg 143 lb |
