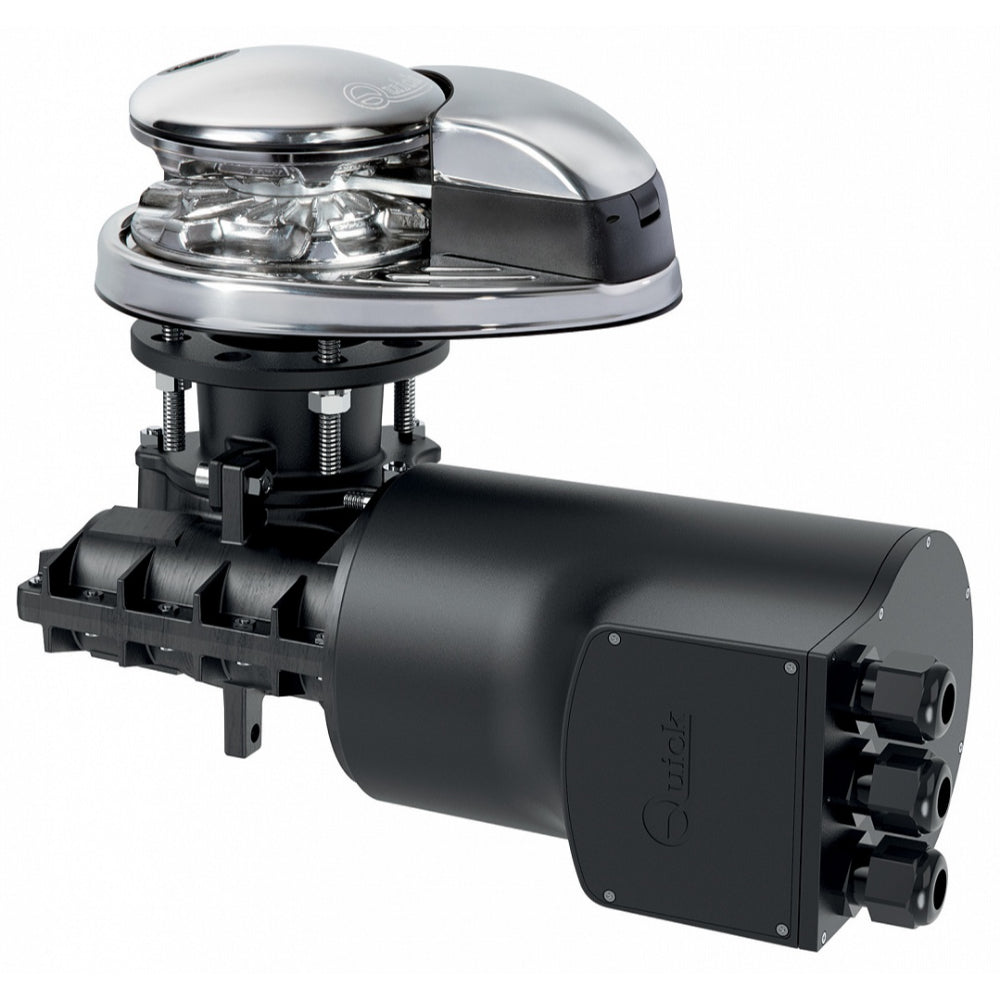

Quick Prince DP2 P 1012 Windlass - 8mm 1000W 12V No Drum
Quick Prince DP2 P 1012 Windlass - 8mm 1000W 12V No Drum
SKU:690-FSDP21012008B00
Couldn't load pickup availability
- Vertical windlasses
- Stainless steel Aisi 316 base
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- IP67 (700 - 1000 W) / IP66 (300 - 500 W)
- Technopolymer gearbox
The DP2 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. It comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for rope and chain retrieval. Additional features include an IP67 watertight motor anodized aluminum gearbox and inspection lid. The package is sold complete with the windlass solenoid unit clutch handle and mounting hardware.
Gypsy Options
| Gypsy | 6mm | 7mm (1/4") | 8mm | 5/16" | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Chain | 6mm DIN 766 | 6mm ISO | 7mm DIN 766 | 7mm ISO | 1/4" G4 | 1/4" BBB | 8mm DIN 766 | 8mm ISO | 5/16" BBB | 5/16" G4 |
| Rope | 12.7mm (1/2") | 12.7mm (1/2") | 12.7mm (1/2") | 12.7mm (1/2") | ||||||
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick" system.
Specifications
| Standard Version | Prince DP2 P 300/300D | Prince DP2 P 500/500D | Prince DP2 P 700/700D | Prince DP2 P 1000/1000D | |||
|---|---|---|---|---|---|---|---|
| Motor Power | 300W | 500W | 700W | 1000W | |||
| Motor Supply Voltage | 12V | 12V | 24V | 12V | 24V | 12V | 24V |
| Maximum Pull | 370Kg 814 lb | 660Kg 1455 lb | 660Kg 1455 lb | 680Kg 1499 lb | 680Kg 1499 lb | 930Kg 2050 lb | 930Kg 2050 lb |
| Maximum working load | 120Kg 265 lb | 200Kg 441 lb | 220Kg 485 lb | 300Kg 661 lb | 320Kg 705 lb | 420Kg 926 lb | 480Kg 1058 lb |
| Working load | 40Kg 88 lb | 65Kg 143 lb | 70Kg 154 lb | 100Kg 220 lb | 107Kg 236 lb | 140Kg 309 lb | 160Kg 353 lb |
| Current absorption @ working load | 65 A | 80 A | 40 A | 95 A | 50 A | 130 A | 75 A |
| Maximum chain speed | 26.3m/min 86.3 ft/min | 25.2m/min 82.7 ft/min | |||||
| Maximum chain speed @ working load | 29.2m/min 95.8 ft/min | 28.9/min 94.8 ft/min | 28.2m/min 92.5 ft/min | 22.6m/min 74.1 ft/min | 25.3m/min 83 ft/min | 31.2m/min 102.4 ft/min | 30.1m/min 98.8 ft/min |
| Weight without drum | 9Kg 19 lb | 9Kg 19 lb | 12.8Kg 28 lb | 14.2Kg 31 lb | |||
| Weight with drum | 9.8Kg 21 lb | 9.8Kg 21 lb | 13.7Kg 30 lb | 15.1Kg 33 lb | |||
