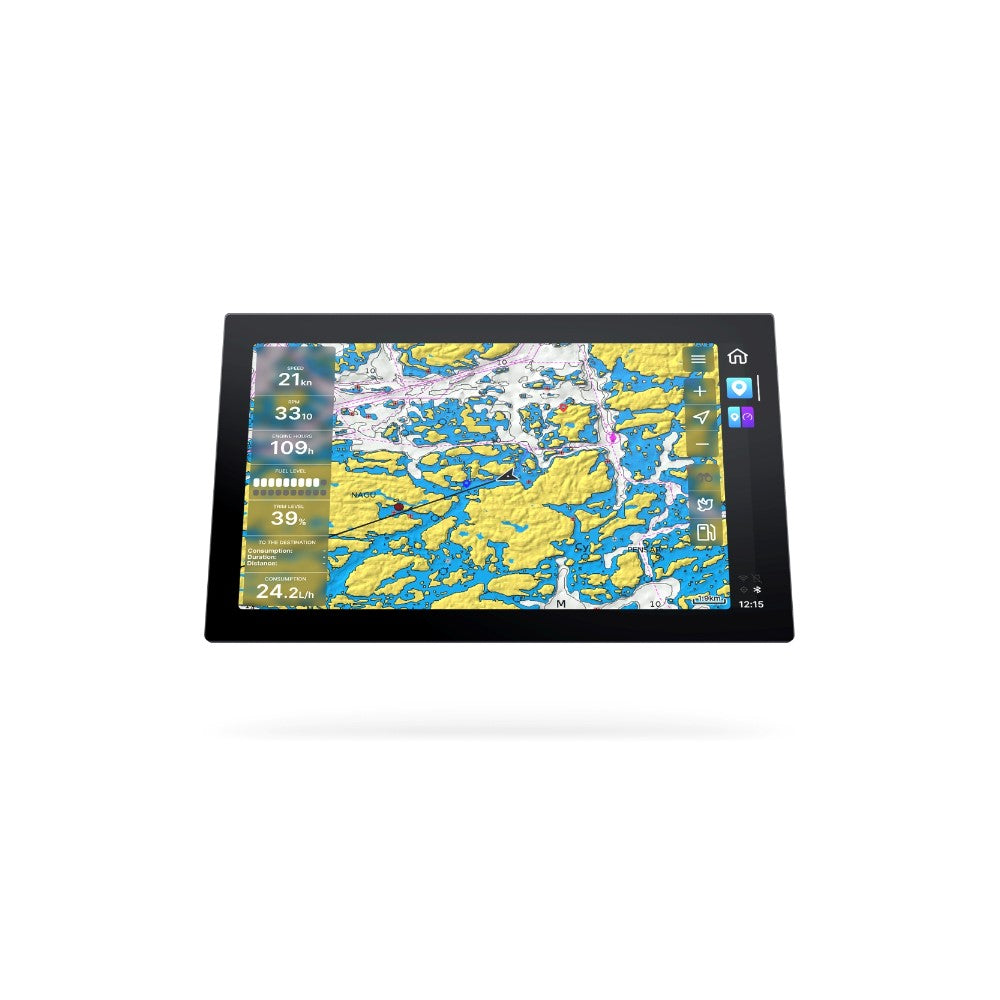

Q Experience Q Display 212 - 12" MFD With Built-in Audio System

• Ultra durable 12" 3mm glass IPS TFT Multi Function Display
• Anti-reflective and anti-fingerprint coating
• Resolution: 1280 x 800 (WVGA)
• Navigation: Compatible with Navionics+ & Navionics Platinum+ charts with 3D mode detailed sonar charts and depth shading.
• 10 Hz GPS
• Connectivity: 4G/LTE WLAN client and hotspot Bluetooth NMEA 2000 Data BUS
• Entertaiment: 2 x 20W audio amplifier With Dual stereo channel RCA audio-output (unamplified)
• FM/DAB radio receiver Bluetooth Hotspot network sharing Internet Radio

All-in-one displays with a mobile app

The Q Experience brings easy-to-use smart navigation to any boat making boating and navigation easier and smarter for everyone. This smart navigation system is more than just a regular plotter. It brings everything needed together from navigation to entertainment and displays it clearly and accessibly all on one display.

The Q Display has been designed with usability as a priority. It has a clear and bright waterproof touchscreen easy-to-read navigation menus and configurable shortcuts for swift control of the boat while on the move. Control the boat’s navigation heating music Fishfinder radar etc. all with the same device.

Navigation

The Q Experience provides robust auto-routing and navigation capabilities and is compatible with Navionics+ and Platinum+ marine charts. To start navigating just set the destination or select an existing route to use for navigating.
NOTE: An active Navionics+ subscription is required to use Autoroute with Navionics charts.

• Dock-to-dock Auto Routing
• Transparent Widgets
• Overlay Gauges
• Automatic Logbook
• Google Place Search

Radar

The Q Display can be connected to a Raymarine Quantum Radar. The radar is connected to either of the two LAN connectors with a RayNet adaptor cable RayNet (F) to the RJ45 (M) Port.

• Tradional Radar
• Radar Overlay on Chart

Fishfinder

The Airmar all-in-one CHIRP fishfinder transducers are the ultimate sonar solution for the Q Displays. Simply plug them into the display and they’ll deliver crisp bottom details and clear fish
target images. Available in both transom and thru-hull mounting options.

AIS

• Over internet or installed AIS receiver via NMEA 2000
• Collision Warnings
• AIS MOB Compatibility

Entertainment

The Music application serves as the central entertainment controller of the  boat’s audio setup. Llisten to radio and stream media from external devices via Bluetooth or AUX cable. In the equalizer users can fine-tune the audio profile to match your listening preferences.

• Built-in amplifier
• Bluetooth music streaming
• FM/DAB receiver
• 3rd Party entertainment options
• Internet Radio

Engine Dashboard

The Q Display engine dashboard can replace traditional gauges and physical instruments by receiving engine status via the NMEA 2000 network. Get access to all of the motor data such as RPM fuel consumption trim angle and fault codes. The NMEA2000 standard also gives certainty on which accessories are compatible with the Q2 Display and which are not.

• Engine data
• Fully customisable
• Selectable widgets

Sailing Instrument

The Q display sailing intrument replaces gauges and physical instruments.

• Sailing related data
• Calculated data
• Selectable widgets
• Overlay data such as laylines directly onto the chart

External Displays

The Q Display family is complete with a full range of external displays for marine use. Connect these as auxiliary displays to the Q Display or another host such as a personal computer. The external displays come in same sizes as the Q Displays: from 10” to 24”.

Q Connected (Subscription required - contact us for further details)

Q displays are constantly connected to the internet through the built-in 4G/LTE modem even when turned off. While the Q app shows all your boats data in real time and lets you remotely control selected appliances through the app.

• Real-time status: Battery voltage location and fuel level
• Remote control: A/C Heaters Fridges Ice makers and more
• Q-Guard anti-theft system
• Trip logbook
• Service book

Q-Guard (Subscription required - contact us for further details)

Boat Guard acts as antitheft alarm for a Q 2 Series Display. It can be used and controlled with Q Experience Buster Q and Yamarin Q mobile apps. All needed Guard cables for antitheft alarm to work are included in the guard cable set. (Sold separately)

Guard mode is on when the Q Display is not - it keeps your boat safe in the docks and alarms you if your boat is filling with water if someone is trying to steal your engine or Q Display and if the boat battery is running out. You'll get notifications on all alarms immediately to your phone. All status updates will be recorded in the guard log that you can see in your phone anytime.
