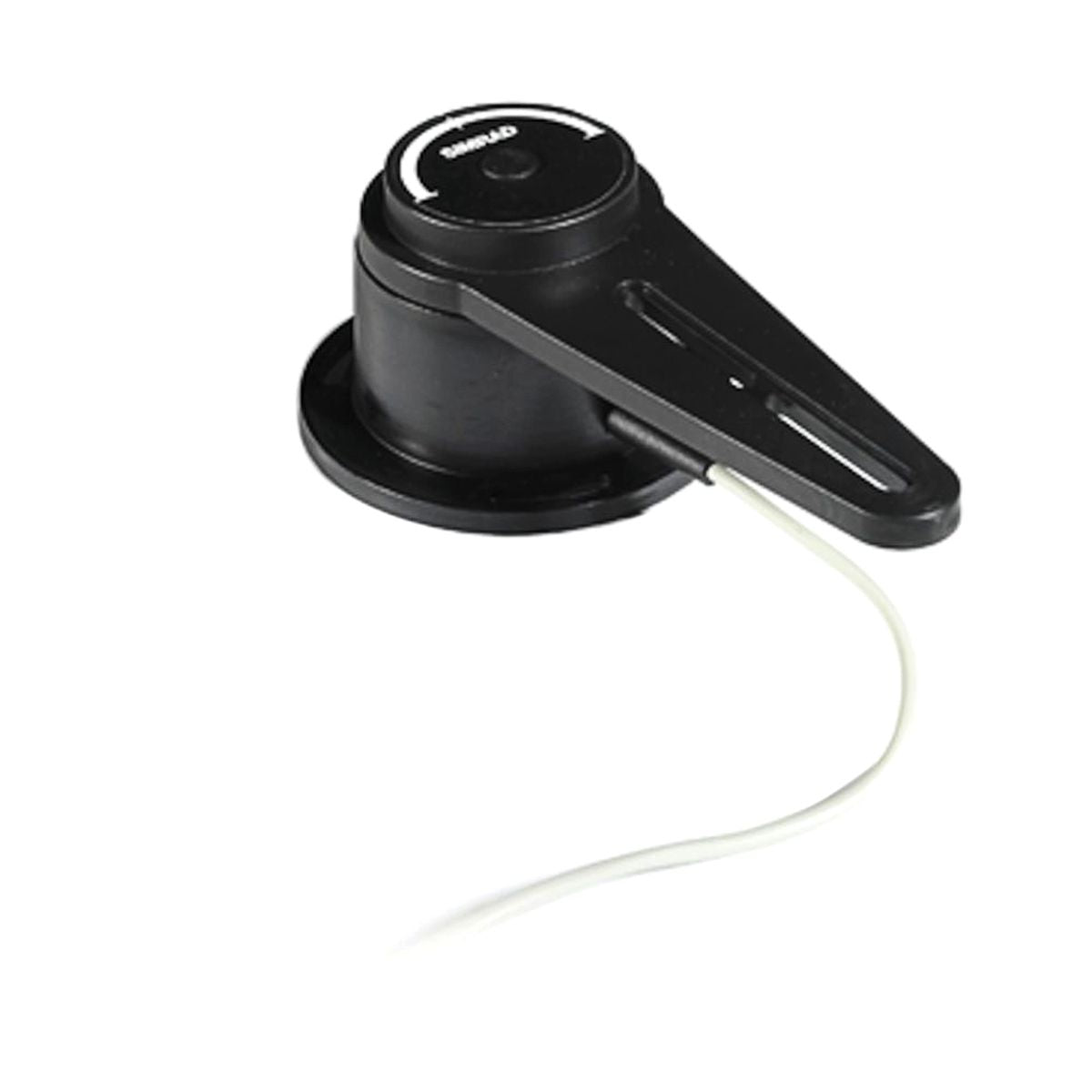

Navico RF25N Rudder Feedback Unit (NMEA2000)
Navico RF25N Rudder Feedback Unit (NMEA2000)
SKU:000-10756-001
Couldn't load pickup availability
The RF25N Rudder Feedback Unit with transmission link and five metre NMEA2000 Micro-C cable, is typically used on boats with inboard engines, on larger vessels, and in special applications where Virtual Rudder Feedback may not be suitable.
It connects to a rudder via a mechanical linkage and continuously reports actual rudder position to an autopilot computer - allowing the Simrad Continuum steering algorithm to make the best-informed steering decisions possible.
The RF25N connects directly to a boat’s NMEA 2000® network, simplifying the cabling required for installation. It can be horizontally, vertically or upside-down mounted.
Specs:
• Material: Arnite T06 200 PBT
• Safe distance to compass: 1.0m (3.1 ft)
• Mounting: Horizontal, vertical, or upside down
• Supply and interface: 8-16V via Micro-C
• Power consumption: 0.4W
• Network load factor (NL): 1
• Moro-C ports (input/output): 1
• Cable supplied: 5m (16ft) Micro-C cable with connector
• Rudder angle: ±120 degrees
• Output signal: NMEA2000 PGN127245
• Accuracy: ±0.25° within ±5°, otherwise ±0.5°
• Repeatability: ±0.1°
• NMEA compliant
• Transmitter link: Stainless 345mm (13.6") with 2 ball joints.
NOTE: Ball joint stud for rudder arm requires 4.2mm diameter hole and 5mm tap.
