Navico NAC-3 Autopilot Core Pack with Computer, Precision-9, RR Sensor
Navico NAC-3 Autopilot Core Pack with Computer, Precision-9, RR Sensor
SKU:000-13336-001
Couldn't load pickup availability
This NAC-3 Autopilot Core Pack is made up of the high-current NAC-3 autopilot computer, Precision-9 compass and RF-25 rudder feedback unit, ideal for vessels above 10 meters (33 feet) in length.

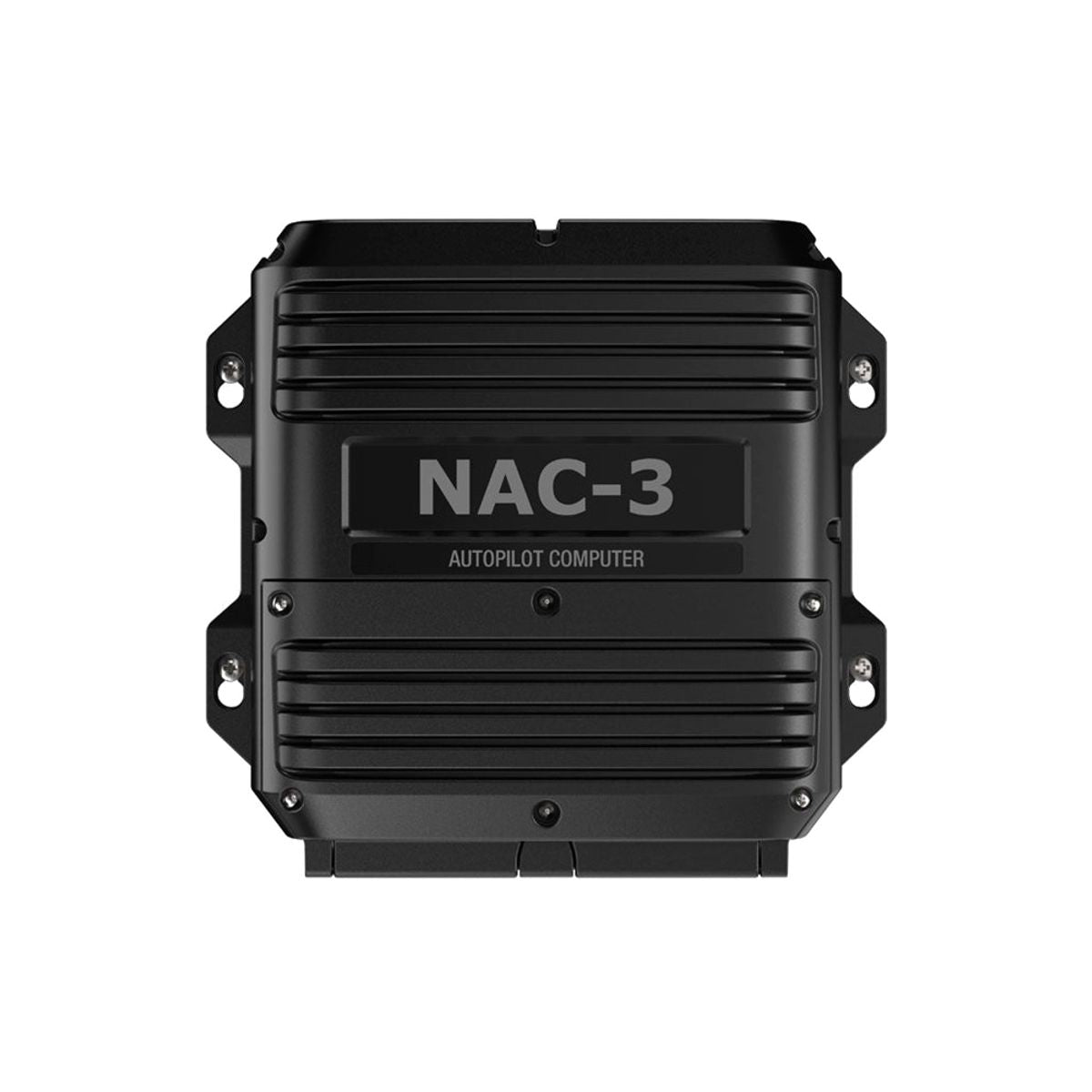

The NAC-3 Autopilot Computer contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units.
The NAC-3 is designed for boats greater than ten metres (35 feet) in length and is rated to operate high-current pumps, mechanical drive units, and solenoid valves (30 amps continuous/50 amps peak).
NAC-3 features
- B&G Reflex Sailing algorithms
- Plug and Play installation
- 12/24V input 8A continuous output, 12A peak
- Solenoid output capable
- 3A clutch output
- Optional Auto/Standby Switch
The Precision-9 compact compass is easy to install and provides accurate heading and rate-of-turn information to B&G, Simrad and Lowrance autopilot, radar and navigation systems over an NMEA 2000® connection.
Precision-9 features
- Heading, Rate Of Turn (ROT), pitch and roll output over NMEA 2000®
- Accurate and reliable solid-state sensor technology
- Heading accuracy of ±2° after calibration
- Easily adjustable mounting bracket allows bulkhead or up-mast installation
- IPX7 waterproof for external up-mast mounting on steel hulled vessels
- Simple installation with a single NMEA 2000® connection
The RF25 is a medium duty rudder feedback unit with a SimNet interface. It attaches directly to Simnet systems for straight-forward installation.
RF25 features
- +/- 120 Degree Measurement
- Precise and Accurate; +/- 0.5 Deg
- SimNet Connectivity
- 5.5m attached SimNet Cable
Minimum product requirements: Requires a hydraulic steering pump or mechanical drive unit, and a compatible autopilot controller or networked multifunction display.
