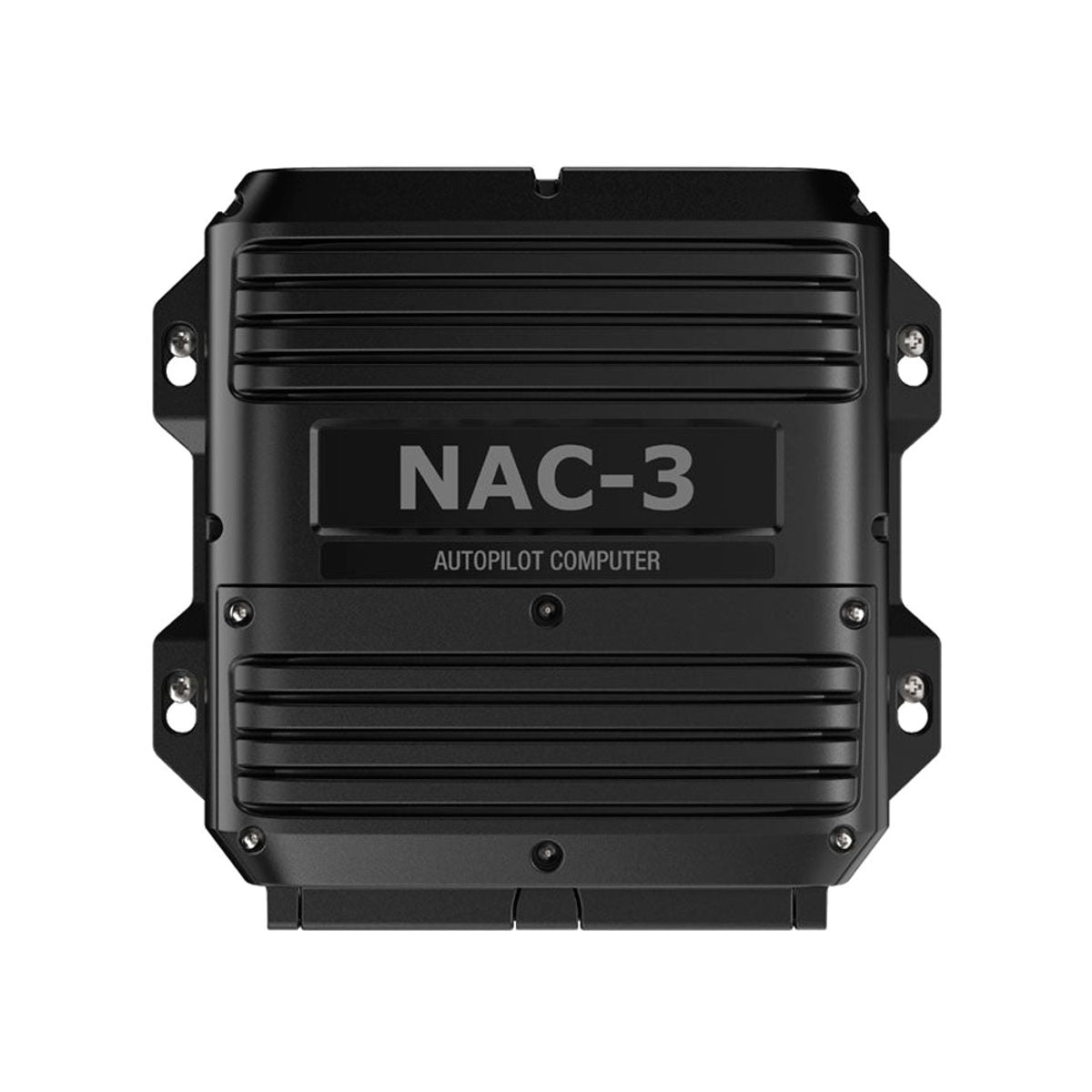

Navico NAC-3 Autopilot Computer
Navico NAC-3 Autopilot Computer
SKU:000-13250-001
Couldn't load pickup availability
The NAC-3 autopilot computer contains the electronics required to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with rudder feedback units and NMEA 2000 devices.
Designed for vessels above 10 metres (33 feet) in length, the NAC-3 is rated to operate high-current drive pumps including the Simrad RPU160 and RPU300, mechanical drive units including the Simrad DD15, hydraulic linear drives such as the HLD2000 series and solenoid valves (30 amps continuous/50 amps peak).
The NA-3 can be controlled by various Simrad and B&G control units, such as dedicated autopilot controllers, Multifunction displays (MFDs) and autopilot remote controllers (used in combination with instrument systems, or any combination of the above).
PLEASE NOTE: A drive unit, heading sensor, NMEA 2000® network, and compatible autopilot controller or multifunction display are required to create a complete autopilot system. Some vessels may also require a rudder feedback unit.
Product contents:
• NAC-3 Autopilot Computer
• Navico N2K-T-RD NMEA2000 T-Connector (000-0119-79)
• N2KEXT-2RD 2ft NMEA2000 Cable (000-0119-88)
Specs:
• Compass safe: 0.5m (20 inches)
• Drive output: 12/24VDC. Rev. motor control 30A, 50A peak (1 sec.). Solenoid control: 10A (min. 10mA)
• NMEA 2000 connectivity: 1x CAN terminal, 1 LEN
• Mounting type: Bulkhead
• NMEA 0183 Sentences supported: Input: AAM, ACK, APB, BOD, BWC, DPT, GGA, GLL, HDG, HDT, HSC, RMA, RMB, RMC, ROT, THS, TNT, VBW, VHW, VLW, VTG, ZDA. Output: HDG (10Hz) or HDT (10Hz), RSA (5Hz)
• Recommended fuse rating: Internal fuse 30A (Slow)
• Compass sensor support: NMEA2000, NMEA0183
• Engine Drive systems integration: Reversible pump/motor, Solenoid valve on/off
• Rudder sensor support: RF300, RF45X, RF25N, RF70 & VRF
