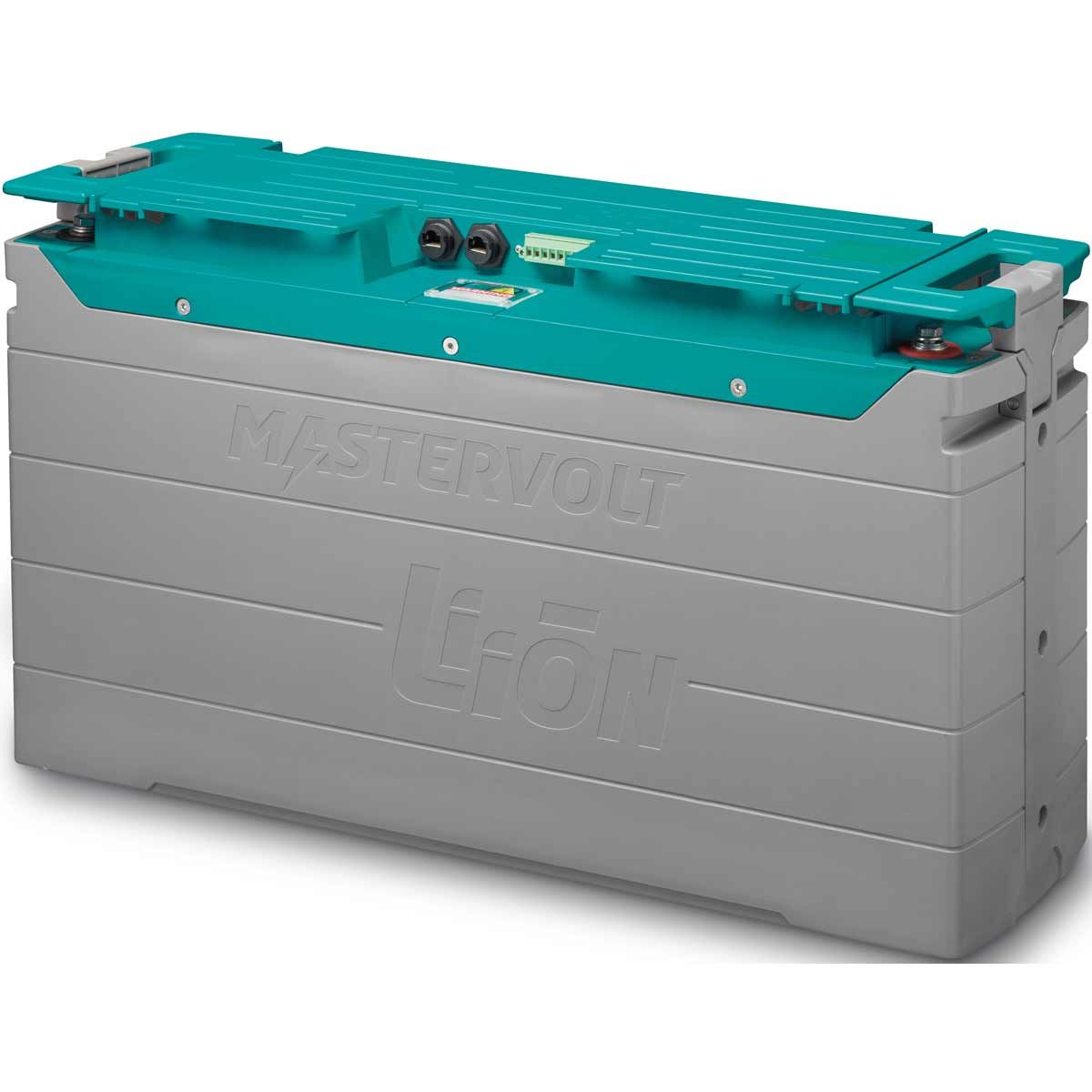

Mastervolt MLI Ultra Lithium Ion Battery (24V / 230Ah / 6000Wh)
Mastervolt MLI Ultra Lithium Ion Battery (24V / 230Ah / 6000Wh)
SKU:M66026000
Couldn't load pickup availability
Mastervolt MLI Ultra 24V/6000-6kW/h Lithium Ion battery is heavy duty for ultimate performance. The MLI battery delivers ultimate Lithium Ion performance even under the harshest conditions, such as high charge and discharge currents, wet environments, mechanical shocks or vibrations. This is realised by combining our best Lithium-Iron Phosphate (LiFePO4) cells with a proprietary Battery Management System (BMS) inside a sturdy, waterproof housing.
The sophisticated Mastervolt BMS ensures optimal use of each individual cell. Integrated battery monitoring provides you with accurate and up-to-date information on the state of your battery. Integrated NMEA 2000, CZone or MasterBus communication allows complete system integration, to ensure the best possible recharging, while maximising the lifetime of your battery.
Self-learning balancing algorithm
The MLI Ultra batteries are equipped with a self-learning balancing algorithm that predicts the behaviour of each individual battery cell and balances proactively, resulting in a faster and more efficient charge cycle. The self-learning system eliminates unnecessary stress on the cells, resulting in an even longer Battery Cycle Life.
Mastervolt MLI Ultra 24/6000 Battery Features:
Ultimate performance, heavy duty Lithium Ion batteries.
BMS and LiFePO4 chemistry according to highest safety standards.
Saves up to 70% in space and weight.
More than three times the life span of traditional batteries.
Fast charging within 60 minutes.
Self-learning balancing algorithm for optimised performance and longer battery lifetime.
High charge / discharge rate up to 2.5 C.
Integrated battery monitoring (Ah consumed, state of charge).
Series connection up to 10 batteries possible.
MasterBus communication with any Mastervolt battery charger.
CZone and NMEA 2000 compatible.
Waterproof electronics compartment.
General specifications:
Recommended Continuous Discharge Current: ? 200A
Nominal battery voltage: 24V
Nominal battery capacity: 230Ah
Nominal battery energy capacity: 6000 Wh
Cycle life: 3500 cycles at 80% DOD at 25?C, max. C3 charge and C2 discharge
Max. charge current: 230A
Recommended charge current: ? 80A
Max. continuous discharge current: 200A
Peak discharge current: 1800A (10 sec.)
Battery monitoring: integrated
MasterBus communication: Yes
CZone / NMEA 2000 communication: Yes
Mounting position: upright (recommended) or either long side
Technical specifications:
Battery chemistry: Lithium Iron Phosphate – LiFePO4
Protection degree: IP65 (electronics cabinet)
Parallel connection: Yes, unlimited
Series connection: Yes, up to 10 - systems over 48V require a separate battery box to prevent access to high voltage parts
Protections: Over voltage, under voltage, over temperature
Safety relay: To be added mandatorily, product code 7702B-BSS
Safety relay controls: Integrated
Please Note: for additional safety, Mastervolt stipulates the use of a safety relay as mandatory part of the battery installation. Safety relay 12 volt, product code 7702B-BSS.
