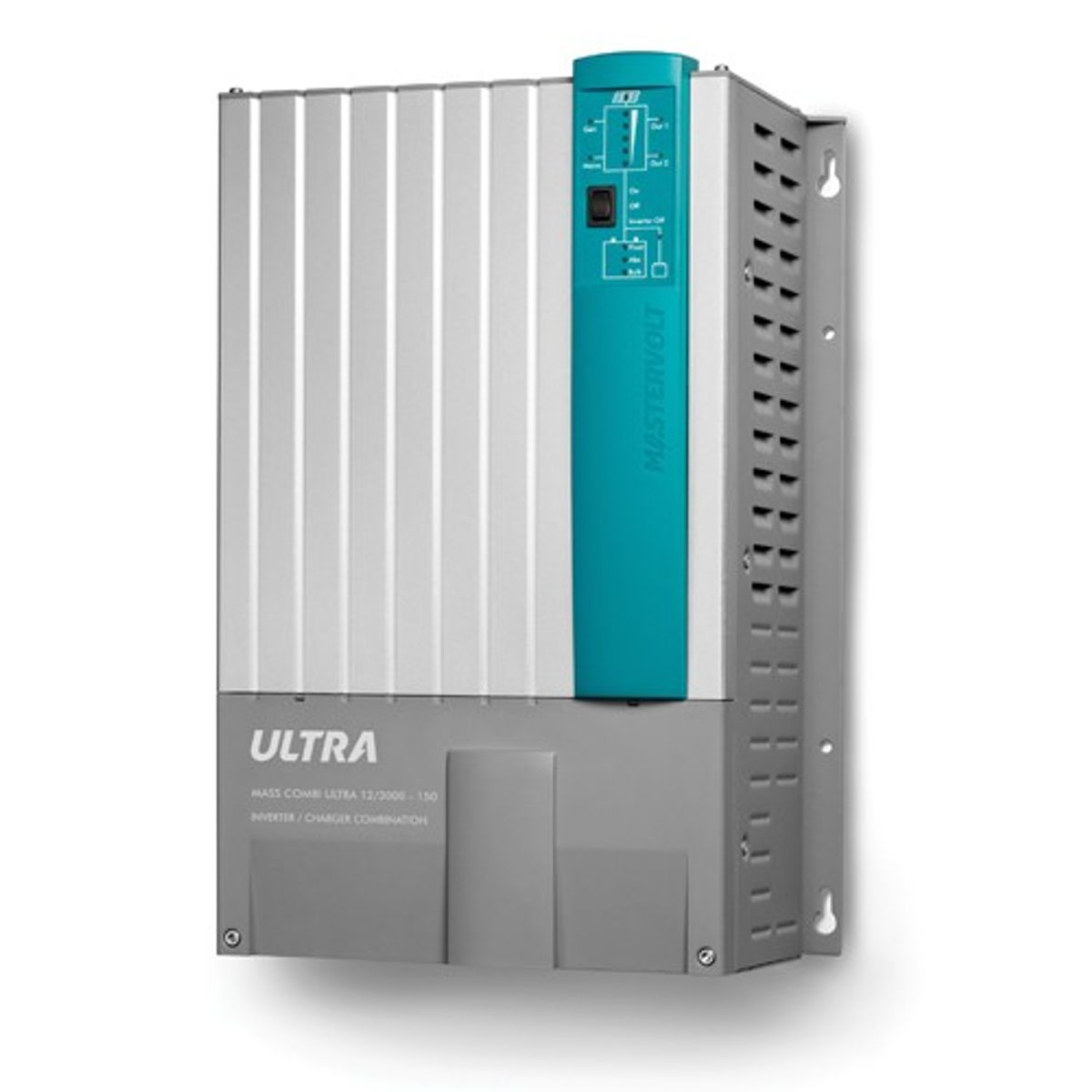

Mastervolt Mass Combi Ultra Inverter/Charger (12V / 3000W / 150A) M38013000

The Mastervolt Mass Combi Ultra combines a 3 step battery charger, a true sine wave power inverter as well as a solar charge regulator. The unit has two AC inputs and can be connected up to shore power, generators or solar panels for charging and the AC output will automatically switch between mains and inverter mode. It has two separate AC outputs, allowing critical equipment to be put on a different circuit to other appliances to protect them from heavy loads. The inverter/charger is built to be reliable and user friendly, and is equipped with MasterBus Combi integration for easy operation along with the rest of your Mastervolt system.

The Mass Combi Ultra features the Power Assist function, which prevents main fuses or breakers being tripped in the event of a weak power supply. It also eliminates power failures and dips to maintain reliable performance. The unit is equally capable at handling heavy loads and more sensitive loads, and with a true sine wave output will not cause harm or damage to your appliances. The high frequency technology used eliminates noise typically associated with power inverters, such as buzzing or humming.

This unit can provide up to 50% of charging current or inverter capacity without using any fan cooling, and so runs very quietly. Even when operating at maximum capacity, or performing in high ambient temperatures, the fan speed is regulated to only run in a linear way, meaning it wont spin too fast or make unnecessary noises. The solar regulator will prioritise solar energy over other sources of AC, ensuring you get the most cost effective and efficient method of energy input into the system. The regulator also uses MPPT technology to yield 30% more energy from solar power compared to others on the market using PWM. This model can be used in a 3 phase system, or you can combine up to 10 units in parallel for higher power outputs.

Specifications sine wave inverter
Nominal DC voltage: 12 V (9.5-16 V)
Output voltage: 180-260 V, adjustable
Output frequency: 50/60 Hz (± 0.005 %), configurable
Output waveform: true sine
Continuous power at 40 °C / 104 °F, cos phi 1: 3000 W
Max. peak load: 6000 W
Max. efficiency: ? 90 %
Max. ripple on DC (battery at full load): < 5 %
No-load power consumption on DC (ON/inverter OFF/OFF): 26 W / 4 W / 0 W
Energy saving mode consumption: 7 W
Parallel configuration: yes, up to 10 units (for larger systems, an external transfer system is required)
3-Phase configuration: yes, up to 3x3
Synchronise with mains/generator: yes

Specifications battery charger
Input voltage range: 184-275 V
Max. input current: 12 A
Max. charge current at 40 °C / 104 °F: 150 A at 14.25 V, adjustable
Secondary charger output voltage: 12 V
Secondary charger output current: 10 A
Battery temperature sensor: yes, included
Battery voltage sense: through MasterShunt, otherwise automatic compensation

Specifications transfer system
AC input (generator): 50 A (switched)
AC input: 30 A (switched)
AC output 1: 67 A
AC output 2: 50 A (switched)
AC input fuse: no
Transfer speed: seamless (< 1 ms)
Transfer voltage range: 184-275 V, adjustable
Transfer frequency range: 35-68 Hz, adjustable

Specifications solar input (DC)
Input voltage range: 15-100 V
Max. PV peak power: 375 Wp
Max. input current: 19 A
Max. charge current: 25 A at 14.25V
MPP Tracker: full power at 15-80 V

General specifications
Galvanic isolation: yes
Display/read-out: LED display
Dimensions, hxwxd: 472 x 318 x 178mm (18.6 x 12.5 x 7.0 inch)
Weight: 15.3 kg (33.7 lb)
Compliance: CE, E-mark, ABYC, RMRS

Technical specifications
Charge characteristic: IUoUo, automatic / 3-step+ for Gel/AGM/MLI/ flooded/spiral/traction
Recommended battery capacity: ~ 300-900 Ah (based on gel batteries, may differ for other types)
Ground relay: yes, configurable
Temperature range (ambient temp.): -25 °C to 60 °C, derating > 40 °C (-13 °F to 140 °F)
Cooling: vario fan
Protection degree: IP23 (vertical mounting)
Safety class: IEC protection class I
Humidity protection: conformal coating, max. 95 % relative humidity, non condensing
Protections: over temperature, overload, short circuit, high/low battery voltage
Power Assist: yes
MasterBus compatible: yes
