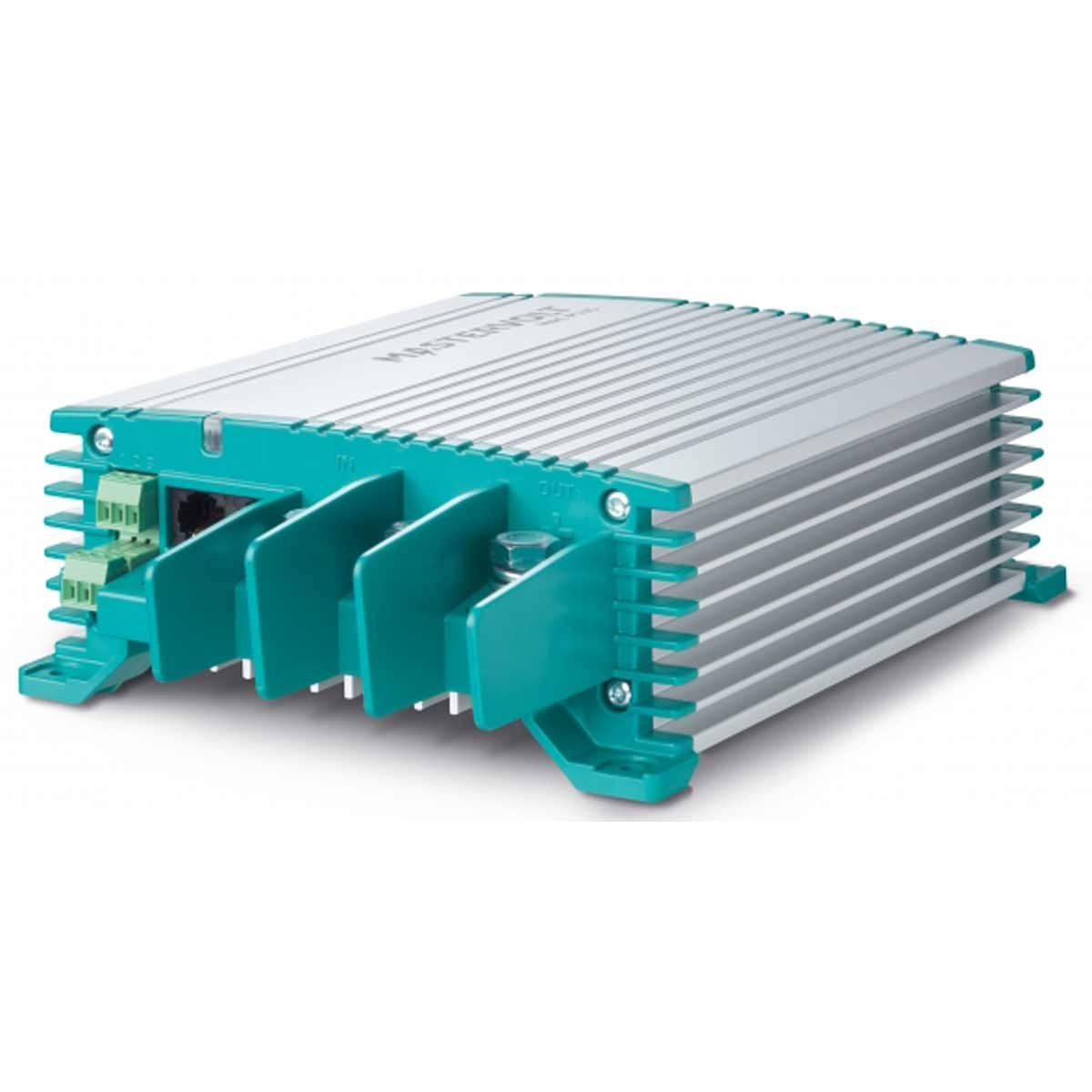

Mastervolt Mac Plus Voltage Converter + CZone (12V - 24V DC / 30A)

The Mastervolt Mac Plus 12/24-30 is a DC-DC charger which is designed to provide quick and safe charge to the service battery, providing stabilised voltage to protect the battery and the equipment it powers.

Boost Your Service Battery - Too often, service batteries don't get the charge they need. This is a problem made worse by smart alternators and start/stop systems, which result in slow and insufficient charges. The Mac Plus DC-DC charger solves this problem, providing a quick, safe, and consistent charge to your service battery. And, by knowing when the engine is running and providing charge, you can be sure that the Mac Plus will never drain your starter battery.

Proven Mastervolt Quality - Get peace of mind, knowing that you've got the best on-board. Using the proven Mastervolt 3-step+ charge algorithm, the Mac Plus delivers a quick and easy charge, even to completely flat batteries.
A robust design holds up in even the harshest conditions, with battery temperature optimized charging and high-quality aluminium housing to ensure superior protection against dust and water ingress. The power efficient design also allows the Mac Plus to operate silently and without a fan.

Total Power Flexibility - With a wide DC input range, the Mac Plus allows all DC sources and can charge two batteries from a single alternator or charger. It supports a full range of chemistries and battery types, including lithium. And it also functions seamlessly with modern alternators such as Euro 5 and 6, ensuring proper charging by providing constant power, even when the alternator is inactive.
Parallel configuration of up to ten units will provide over 100 amperes. And advanced high-frequency technology with modern microprocessors ensures minimal power loss when switching from 12V to 24V and vice versa.
Analog voltage sense ports are also available to compensate for voltage drop and maintain proper charging.

Superior Monitoring & Control - Compatibility with CZone, NMEA 2000 and MasterBus delivers truly superior monitoring and control, and ensures Mac Plus integrates easily into complete systems. Achieve the best performance possible via various controllers and high quality MOSFETs. And configure the Mac Plus with ease via MasterAdjust, the CZone configuration tool, or even via the on-board DIP switches.

General specifications
Status indicator: yes, 3-color LED
Communication protocol: MasterBus, CZone & NMEA 2000
Output voltage: 20-30V
Nominal output voltage: 24V
Output voltage stabilisation: 2% at extremes of temperatures, load and input
Output voltage ripple (peak peak): max. 1%
Max. output power: 725W
Nominal output power: 675W
Max. output current: 30A
Output charge current (3-step mode): 30A
Nominal input voltage: 12V
Input voltage range: 10-16V
Max. input current: 50A
Galvanic isolation: no
Voltage limited: yes
Efficiency: > 95% (at nom. input voltage, full load); peak 97%
Parallel configuration: yes
Alarm contact: yes, through MasterBus
MasterBus powering: no
Engine run signal input: yes (active high/active low)
DIP switches: yes, for basic setup

Technical specifications
Battery temperature sensor: yes, included
Battery voltage sense: yes
No-load consumption: < 2 mA
Charge characteristic: 3-traps+
Battery types: flooded, Gel, AGM, spiral, Lithium Ion, traction, user defined
3-Step charge option: yes (DIP switch settings)
DC consumption: < 5 mA
Connections: 3x M8 terminal for cable diameters of 10-50mm², (positive input, positive output, joint negative connection) 8-pole screw connection for cable diameters of 0.75-1.5mm² (remote on/off, temperature sensor, voltage measurement)
Cooling : natural cooling
Protections: overload, over temperature, DC short circuit, reversed polarity (fuse)
MasterBus compatible: yes
