Mastervolt GMDSS Remote Panel for Mastervolt Mass Battery Chargers

Mastervolt GMDSS Remote Panel for Mastervolt Mass Battery Chargers

SKU:M70400050

Regular price £760.99
Regular price £915.95 Sale price £760.99
Sale Sold out
Tax included. Shipping calculated at checkout.

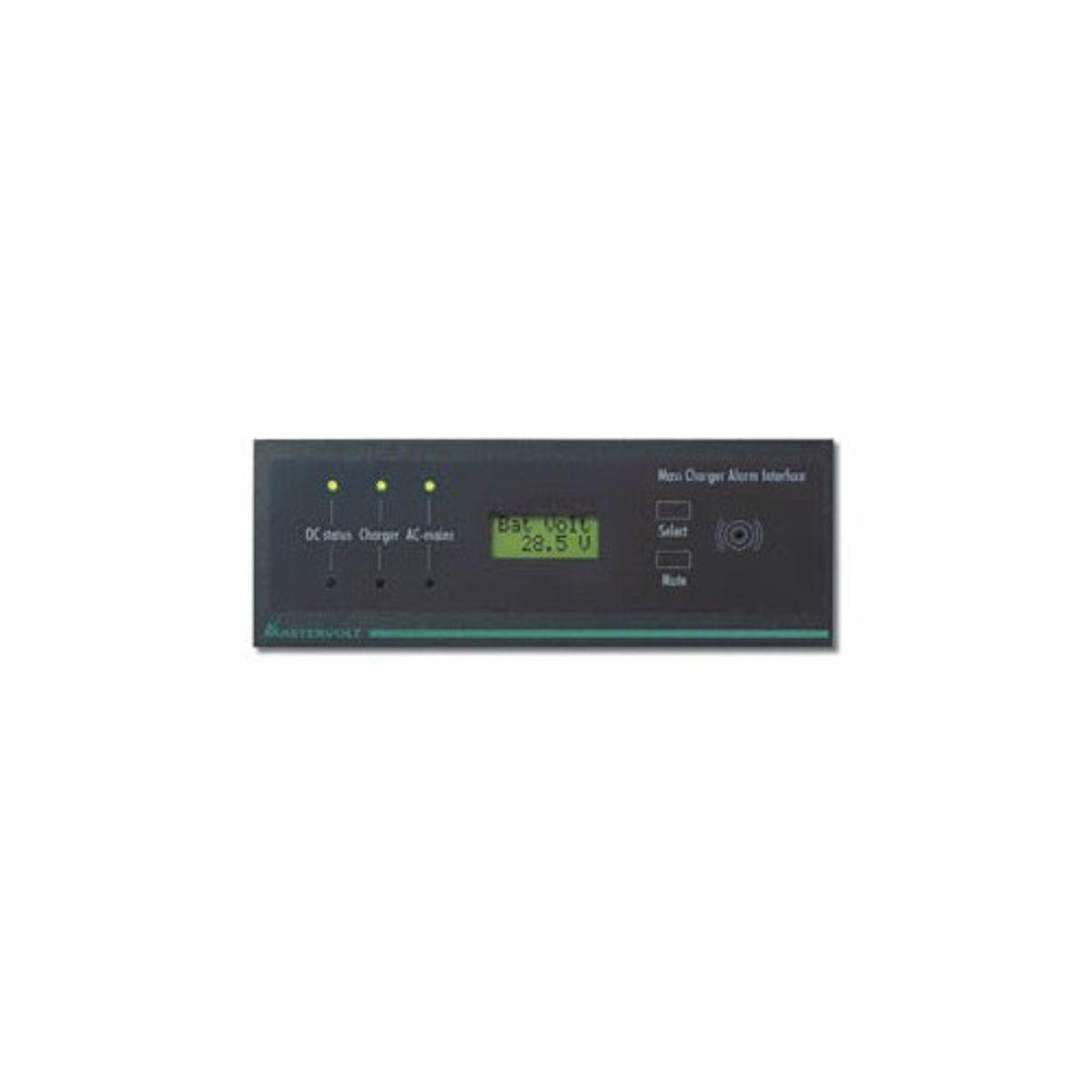

Mastervolt remote monitoring panel 70400050 suitable for use with all Mastervolt Mass battery chargers. Featuring a digital screen that displays battery voltage and current, as well as LED indicator lights to monitor system health and an alarm interface feature. The Mastervolt Mass series of battery chargers are designed to be GMDSS (Global Maritime Distress and Safety System) compatible so you can comply with SOLAS (Safety Of Life At Sea) guidelines, and this remote panel supports that.

General specifications
Function: monitoring of the status of the battery and battery charger (12/24 V DC)
Supply voltage: 8-32 V DC
Safe compass distance: standard 1 meter; steering: 0.3 mm
Display/read-out: LCD display and status LED’s for DC voltage alarm, charger alarm and AC mains alarm
Current: 110 mA (12 V) / 65 mA (24 V), normal operation mode without activated relays. Current accuracy: ± 2 A (< 45 A), ± 4 A (> 45 A)
Alarms: potential-free switch over contacts for DC voltage alarm, charger alarm and AC mains alarm. Max. switching current: 1 A
Dimensions: 180 x 65 x 40 mm, cut-out: 168 x 53 mm
Dimensions shunt, hxwxd: M8, 84 x 44 x 44 mm (0.0 x 1.7 x 1.7 inch)
Weight: excl. shunt: 400 gr, incl. shunt: 1 kg
Delivered with: interface, shunt, user’s manual

Technical specifications
Voltage range: 0 - 62.7 V DC (0.1 V resolution); a 12 V or 24 V system is detected automatically V
Voltage accuracy: ± 0.2 V (12 V), ± 0.4V (24 V)
Shunt specification: 500 Amp / 50 mV (included with the delivery)
Current measurement range: -500 … 500 A
