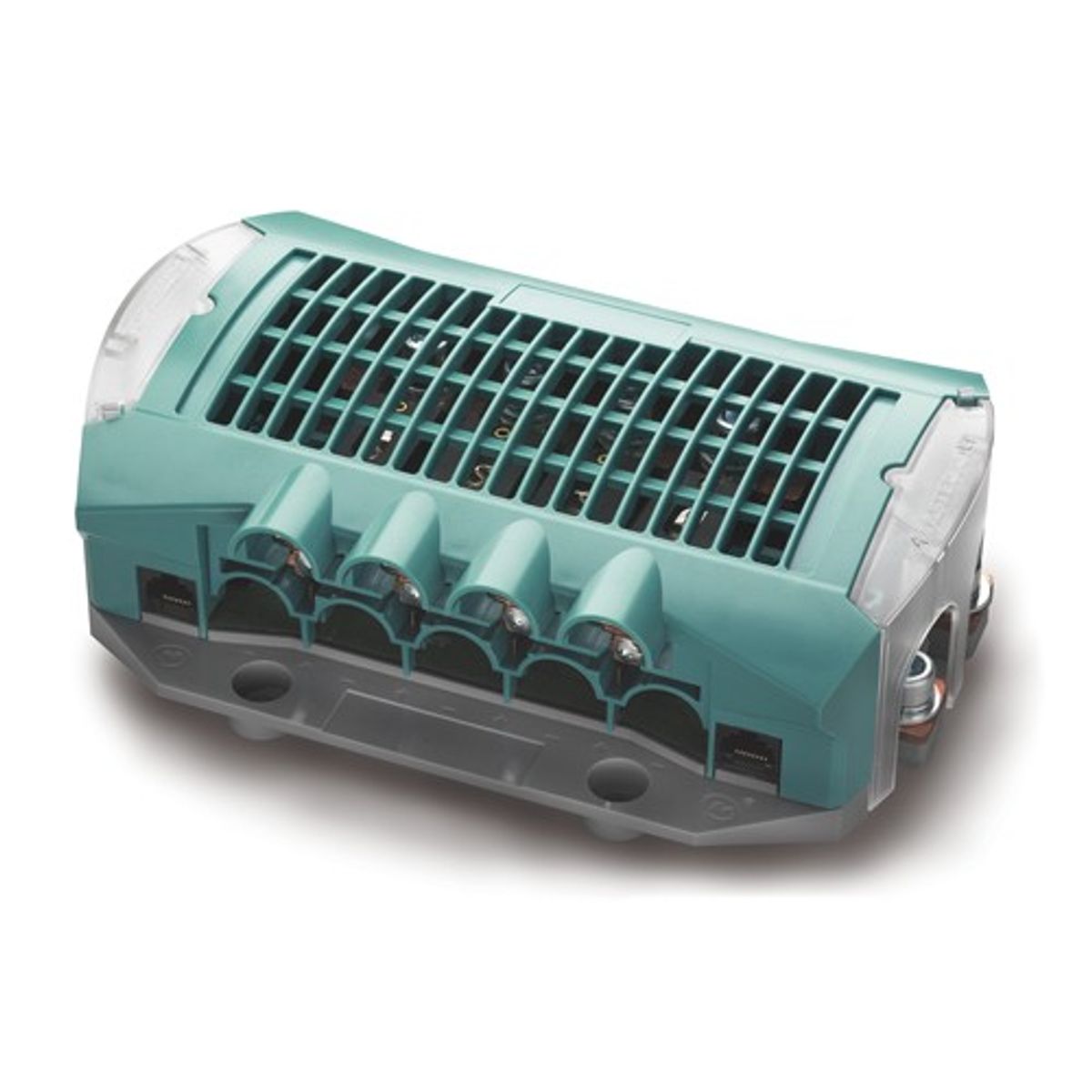

Mastervolt DC Distribution 500 for Up To 4 Devices
Mastervolt DC Distribution 500 for Up To 4 Devices
SKU:M77020200
Couldn't load pickup availability
The DC Distribution 500 can connect up to four DC devices, such as battery chargers, inverters, alternators and solar panels. The distributor includes a plug & play cable so it can be easily connected in to a MasterBus network. When connected to MasterBus, the EasyView panel gives all the fuses logical names, for instance, referring to the connected equipment, to ensure you receive understandable error notifications (for example: battery charger fuse defect). The DS Distribution comes with four ANL fuses, 2 x 80A, 1 x 125A and 1 x 160A, as well as a spare 125A fuse.
General specifications
MasterBus powering: no
Languages on display: ENG, NL, DE, SP, IT, FRA, FIN, SWE, DEN, NOR
Battery voltage: 12, 24 or 48 V DC
Current: 300 A cont. / 500 A for 5 minutes
Standard fuses: 80 A (2x), 160 A and 125 A - ANL type (deviating values can be ordered separately
Spare fuse: 125 A - ANL type
Alarms: fuse monitoring
Dimensions, hxwxd: 150 x 216 x 65 mm (5.9 x 8.5 x 2.6 inch)
Weight: 1.2 kg (2.6 lb)
Delivered with: four standard fuses and one spare fuse, hex tool, MasterBus terminator, MasterBus cable, cable protections for DC connections
Technical specifications
Protection degree: IP21
